DIN Standard Low Voltage Transformer Porcelain Bushing Definition, Benefits and Specifications

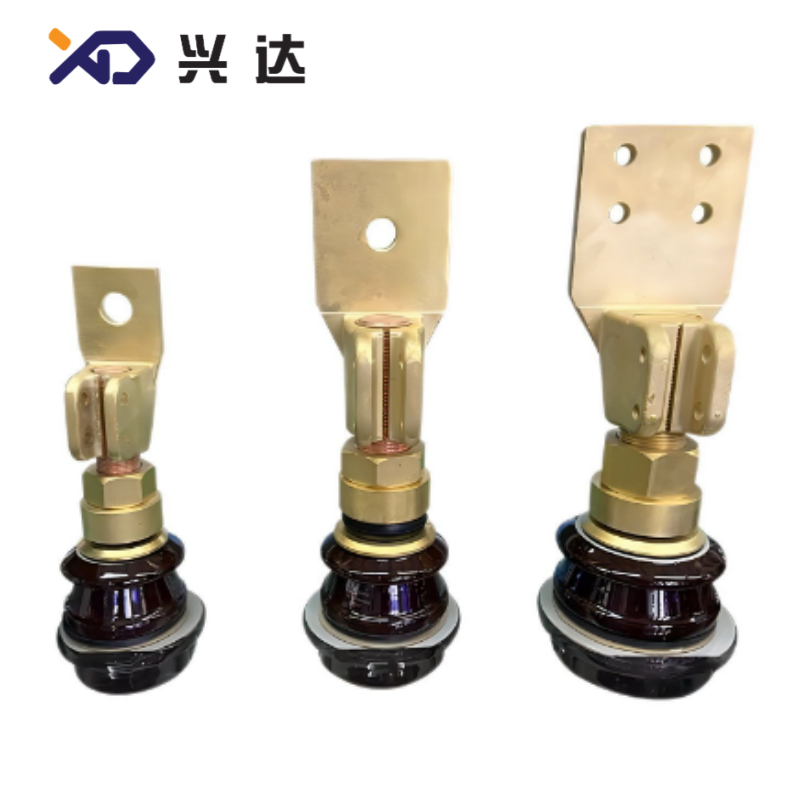

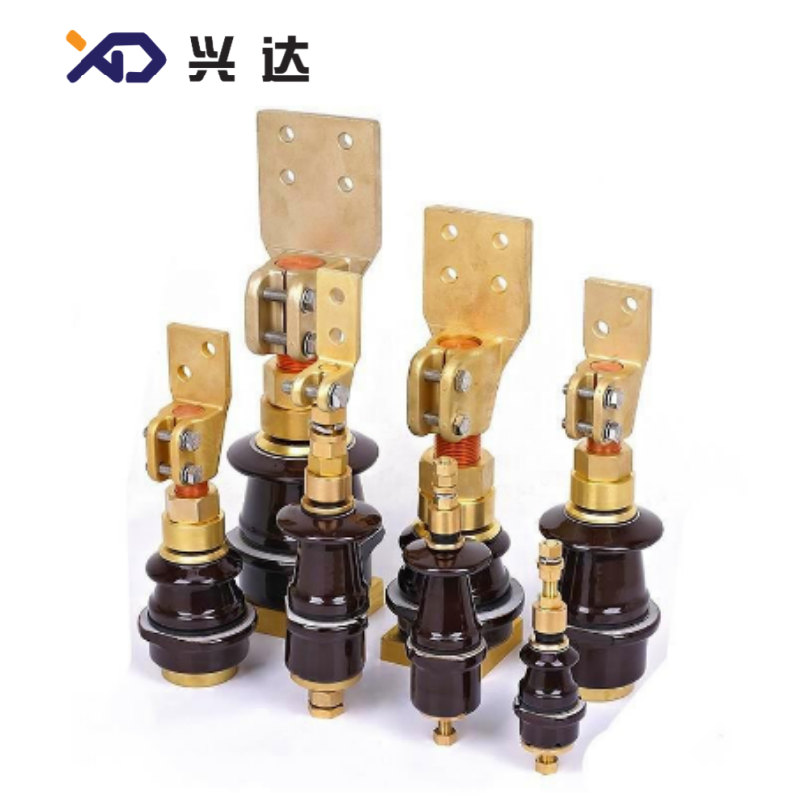

1. Basic Definition of DIN Standard Transformer Bushing
DIN standard transformer porcelain bushing is a standardized insulating and current carrying component specially designed for low voltage and medium voltage oil immersed distribution transformers in European power systems. Fully compliant with German DIN industrial specifications, this type of DIN bushing serves as a critical penetrating insulator that separates live conductive parts from transformer metal shells and external grounding structures. As an indispensable core accessory for standard distribution transformers, DIN porcelain bushing undertakes stable current transmission and reliable electrical insulation during long term transformer operation. Covering universal industry voltage levels from 1KV to 3KV and current specifications ranging from 1000A to 4500A, DIN bushing covers almost all conventional power grade requirements of civil, commercial and industrial distribution transformers. Compared with non-standard customized transformer bushings with chaotic sizes and unstable performance, DIN standard bushing adopts unified industrial design standards, unified dimensional tolerance standards and unified electrical test standards, realizing complete structural interchangeability and performance consistency. This high-level standardization makes DIN transformer bushing the most mainstream matching insulator for European standard transformers and widely used in global power distribution infrastructure construction and equipment maintenance projects.
2. Core Features, Technical Advantages and Industry Applications
DIN standard bushing possesses superior structural design and electrical properties tailored for long-cycle power operation. The main body of DIN porcelain bushing is made of high-density high-temperature fired electrical porcelain material, which features uniform internal texture, high mechanical compressive strength and excellent anti-breakdown performance. The internal conductive core adopts precision processed brass material, ensuring low contact resistance, stable current conduction and negligible heat generation even under full-load and long-time continuous working conditions. Optimized insulation structural design enables the DIN transformer bushing to achieve extremely low dielectric loss, effectively suppressing partial discharge phenomenon and avoiding insulation aging failure caused by long-term electrical stress. Meanwhile, the scientific creepage distance and dry arcing distance design greatly enhances the anti-flashover capability of the bushing, adapting to complex atmospheric environments such as high humidity, heavy fog and industrial dust pollution.
In actual power equipment matching and operation, DIN bushing shows obvious comprehensive advantages in stability, economy and maintainability. Firstly, the integrated integral molding structure eliminates assembly gaps, realizing excellent overall sealing performance. It effectively isolates external moisture, air pollutants and internal transformer oil, preventing internal transformer insulation damp failure and oil leakage problems. Secondly, all installation holes, thread specifications and flange sizes of DIN standard bushing strictly follow unified standards, supporting rapid disassembly, replacement and maintenance. For power operation and maintenance departments, standardized DIN transformer bushing greatly reduces equipment matching difficulty, shortens maintenance downtime and lowers overall operation and maintenance costs. In addition, standard DIN porcelain bushing has strong mechanical vibration resistance and structural stability, which can adapt to slight vibration generated during transformer long-term operation without structural deformation or insulation performance attenuation.
DIN standard transformer bushing has extremely wide universal application scenarios in the global power industry. It is the standard supporting insulating component for low voltage and medium voltage oil immersed distribution transformers, widely used in urban power grid distribution stations, rural power grid renovation projects, industrial factory power distribution systems, commercial complex power supply systems and mining power supply equipment. Whether it is indoor closed distribution rooms with stable environment or outdoor open-air transformer platforms exposed to wind, sun and rain for a long time, DIN bushing can maintain stable and reliable working performance. With the continuous popularization of European standard transformer equipment worldwide, DIN porcelain bushing has become a universal standard accessory for global standardized transformer manufacturing, equipment replacement and power engineering supporting projects.
3. DIN Transformer Bushing Standard Dimension Specification Table
The following table lists the complete standard dimensional parameters and structural specifications of mainstream DIN series transformer bushings. All parameters comply with German DIN industrial standards, covering 1000A to 4500A current grades and conventional low voltage grades. Standard specifications support universal matching of standard transformers, and personalized customized processing can be carried out according to special engineering installation requirements.
Code | Model | H | h2 | h3 | h4 | a3xa4 | a1xa2 | d4 | t | Md | d1 | d2 | d3 | S | S1 | tank opening d0 | dry arcing distance h1 | creep distance | umbrella shield | weight kg |
XD 1000 1 DIN | DIN 1 1000 | 324 | 58 | 17 | 4 8 | 60x60 | 26x26 | 14 | 10 | M30 2 | 90 | 110 | 90 | 70 | 50 | 56 | 57 | 75 | 1 single umbrella | 5.5 |
XD 2000 1 DIN | DIN 1 2000 | 405 | 63 | 22 | 6 10 | 100x100 | 50x40 | 14 | 15 | M42 3 | 104 | 125 | 105 | 125 | 60 | 70 | 58 | 70 | 1 single umbrella | 12 |
XD 3150 1 DIN | DIN 1 3150 | 434 | 68 | 27 | 6 10 | 120x120 | 60x40 | 14 | 15 | M48 3 | 125 | 150 | 125 | 110 | 60 | 90 | 57 | 75 | 1 single umbrella | 16.5 |
XD 1000 3 DIN | DIN 3 1000 | 372 | 78 | 17 | 4 8 | 60x60 | 26x26 | 14 | 10 | M30 2 | 110 | 110 | 95 | 70 | 50 | 56 | 87 | 120 | 1 single umbrella | 6.5 |
XD 2000 3 DIN | DIN 3 2000 | 480 | 83 | 22 | 6 10 | 100x100 | 50x40 | 14 | 15 | M42 3 | 125 | 125 | 105 | 100 | 60 | 70 | 89 | 120 | 1 single umbrella | 13.5 |
XD 3150 3 DIN | DIN 3 3150 | 495 | 88 | 27 | 6 10 | 120x120 | 60x40 | 14 | 15 | M48 3 | 145 | 150 | 125 | 110 | 60 | 90 | 88 | 120 | 1 single umbrella | 18.7 |
XD 4500 3 DIN | DIN 3 4500 | 560 | 101 | 30 | 6 12 | 150x150 | 70x70 | 14 | 20 | M56 3 | 175 | 160 | 160 | 100 | 119 | 95 | 125 | 1 single umbrella | 33.5 |
|
Note: All specifications are standard industry dimensions for DIN transformer bushing series. Customized sizes and structural adjustments are available to meet special engineering and transformer assembly requirements.
4. FAQ for DIN Standard Transformer Bushing
Q1: What is the service life of standard DIN bushing?
Under standard working conditions with regular maintenance, qualified DIN standard bushing can achieve a long service life of more than 10 years. The high-density electrical porcelain material features excellent anti-aging, anti-corrosion and anti-ultraviolet performance, which will not produce insulation aging or structural deterioration due to long-term outdoor operation. The brass conductive core maintains stable electrical conductivity without oxidation and deformation. Strict standardized production and testing ensure that DIN transformer bushing can adapt to long-cycle continuous operation of power transformers, greatly reducing equipment replacement frequency and overall operating costs.
Q2: Why choose DIN standard bushing for European transformers?
European standard distribution transformers adopt unified DIN industrial design norms, so matching DIN bushing can achieve 100% dimensional and performance compatibility. Non-standard bushings often have problems such as inconsistent installation hole positions, mismatched thread sizes and unqualified insulation parameters, which easily cause installation failure and potential safety hazards. DIN porcelain bushing completely matches the original design standards of European transformers, with stable insulation performance, accurate structural size and good interchangeability, which is the most safe and reliable matching solution for European standard transformer assembly and replacement.
Q3: Can DIN bushing adapt to continuous full load operation?
Yes, all DIN standard transformer bushing models are designed for long-term full-load operation. The optimized low-loss insulation structure and high-conductivity brass conductor effectively control operating temperature rise. The product has passed strict full-load aging tests and can operate stably under rated voltage and rated current for a long time without overheating, partial discharge or insulation breakdown. It fully meets the continuous operation requirements of industrial transformers and municipal power distribution transformers.
Q4: What are the key inspection items for DIN bushing before installation?
Before installation, users need to check the appearance integrity of the DIN bushing porcelain body to ensure no cracks, missing glaze or damage. Secondly, verify the dimensional parameters, thread specifications and model grade to confirm matching with the transformer. In addition, insulation resistance detection and sealing performance inspection are necessary to ensure that the DIN transformer bushing meets electrical safety standards. Standard pre-installation inspection can effectively avoid hidden dangers and ensure long-term stable operation of the equipment.
