What You Need To Know About EN Standard LV Porcelain Transformer Bushing

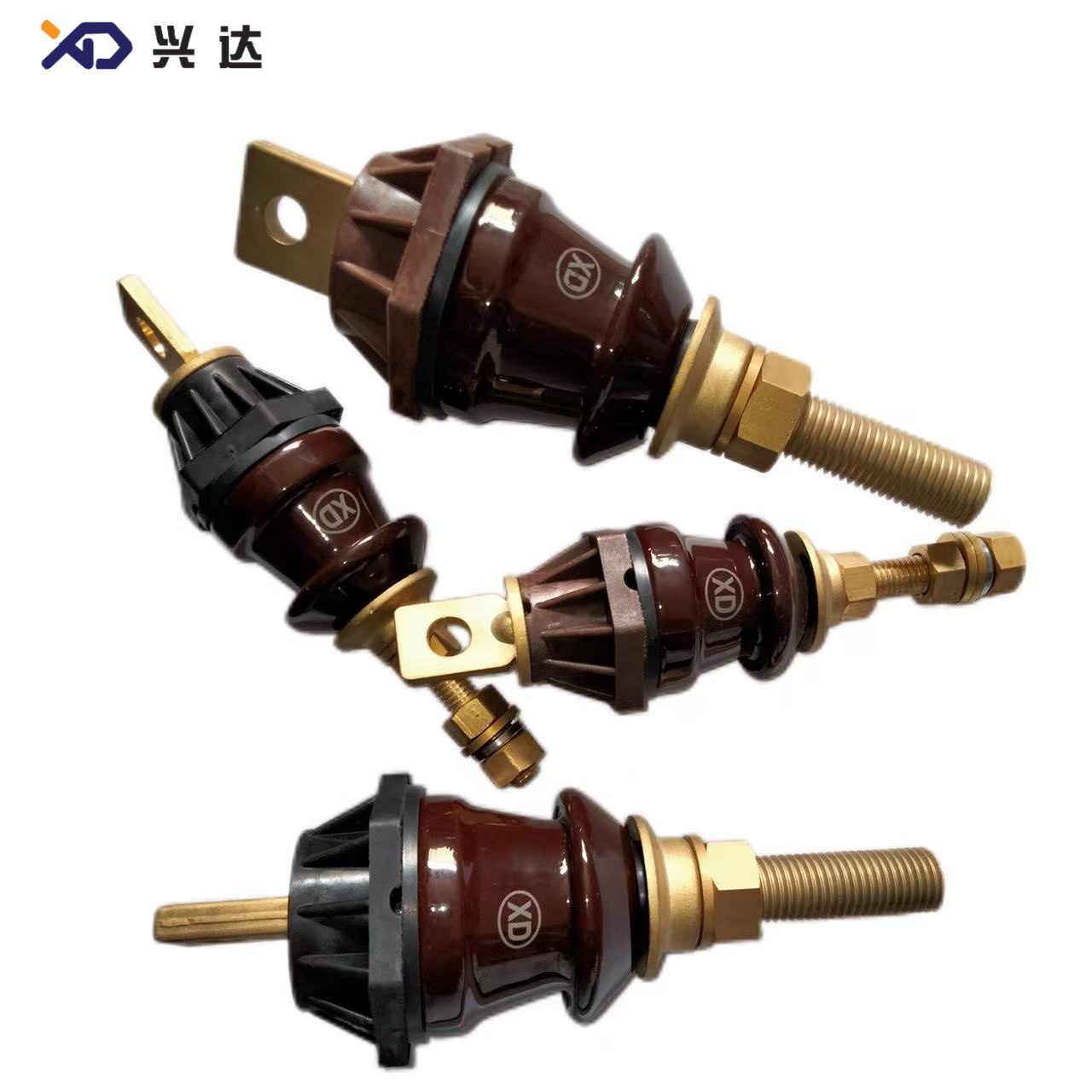

An EN bushing, also known as EN‑compliant low‑voltage transformer porcelain bushing insulator, serves as the critical insulated penetration fitting mounted on transformer metal tank covers. Every EN‑marked transformer bushing follows unified European electrical accessory manufacturing codes, which unify thread size, creepage distance, insulator material quality and mechanical‑strength testing benchmarks. The core duty of each LV porcelain bushing is to isolate energized brass conductors from the earthed transformer shell, enabling safe electric‑wire passage through the sealed oil tank. Global power‑equipment search traffic for keywords like EN bushing, low voltage transformer bushing, brass flag porcelain insulator keeps rising as more transformer manufacturers upgrade components to meet European EN norms. Multiple current grades from 250A, 630A up to 3150A make the EN bushing series adaptable for nearly all low‑voltage power‑transformer projects.

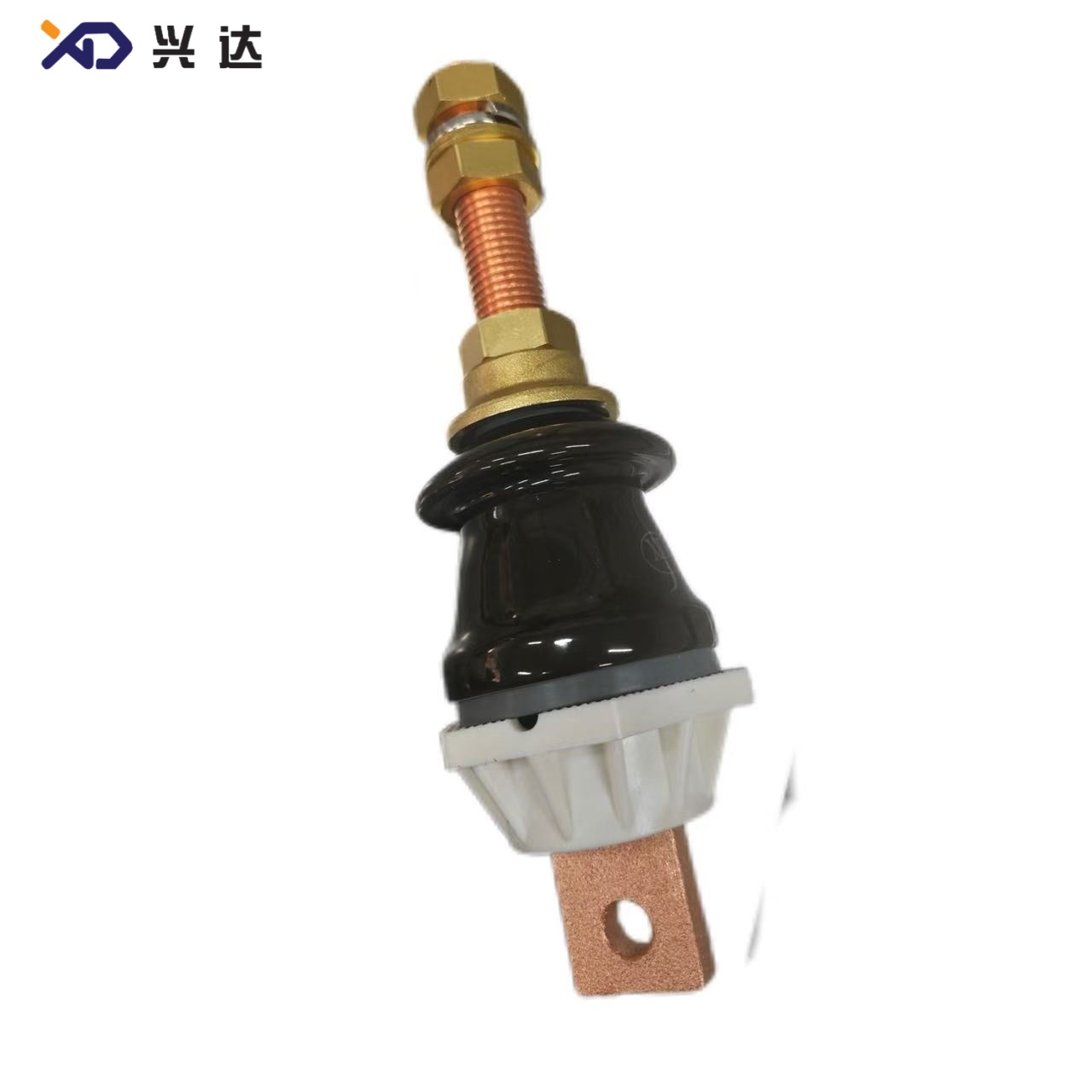

The formal definition for an EN low‑voltage transformer porcelain bushing refers to a combined insulating component constructed with glazed ceramic insulator body, high‑conductivity brass flag terminal, metal fasteners and sealing gaskets, passing all EN‑specified mechanical, insulation and high‑current load tests. Many functional features set EN‑standard bushings apart from non‑standard insulating sleeves. The vitrified smooth porcelain glaze creates a non‑stick outer surface that repels industrial dust, rainwater and corrosive airborne particles. Machined brass flag connectors maintain stable conductive performance even after years of continuous heavy‑current transport. Adjustable h3 installation gaps, multiple mounting thread types and varied overall H height values bring rich choices for diverse tank‑cover opening sizes.

Key operational advantages improve the safety and usability of low‑voltage transformers. EN certification guarantees cross‑border usability for power‑equipment exports toward European‑region markets. Strong mechanical impact resistance stops insulator breakage during transformer transportation, installation and long‑time vibration. Optimized creepage‑distance values greatly lower flash‑over probability in humid, foggy and heavily‑polluted industrial districts. Compact overall layout saves precious installation space on crowded transformer tank covers, and the simple bolt‑on installation design cuts down component‑replacement labour costs.

The application scope of EN LV porcelain bushings covers many power‑related fields. Distribution network transformers, industrial factory power transformers, mobile emergency‑use transformers, box‑type compact substations and renewable‑energy matching transformers all adopt EN‑series bushings. These insulators work well for indoor power‑distribution cabinets, roadside outdoor transformer stations, underground tunnel power‑supply equipment and heavy‑duty metallurgical‑industry power facilities.

Q1 How long can an EN low‑voltage porcelain bushing serve on a working transformerA1 Premium EN‑standard porcelain bushings use high‑density fired ceramic and anti‑corrosion brass parts. With proper maintenance, the regular service life falls between 15‑25 years. Its anti‑vibration, weather‑proof and pollution‑resistant material structure resists daily‑use wear and natural ageing.

Q2 What maintenance schedule suits EN‑series transformer porcelain bushingsA2 Complete visual inspections every three months for outdoor‑placed transformers, and inspect indoor equipment every six months. Wipe dust and chemical pollutants from the glazed outer layer, tighten loose mounting bolts and check brass flag terminals for rust. Immediately replace bushings with glaze cracks, chips or heavy oxidation.

Q3 Do different EN bushing models share the same tank‑cover opening sizeA3 No, each EN bushing model carries unique d0 tank‑opening dimension, mounting thread specification and overall height. Users must compare transformer installation blueprints before ordering matching bushing models. The multi‑size EN product line covers mainstream low‑voltage transformer installation parameters.

Q4 What problems will appear once a transformer porcelain bushing gets damagedA3 Damaged porcelain insulators shorten safe creepage distance and raise the risk of electric flash‑over and current leakage. Oxidized brass terminals create extra contact resistance and excess heat, which may burn connecting cables and trigger unexpected transformer shutdowns.

Q5 Are EN‑type porcelain bushings usable for oil‑immersed low‑voltage transformersA5 Yes, most EN LV porcelain bushings are designed for oil‑immersed transformer tanks. Sealing gaskets stop transformer‑oil leakage at the tank‑cover penetration point while the porcelain body provides reliable insulation between oil‑side conductors and the metal shell.
