Key Features Installation Guidance And Common Knowledge For EN LV Transformer Bushing

The term EN bushing refers to the full‑range of low‑voltage transformer penetrating insulators manufactured under official European EN industrial standards. As one indispensable transformer accessory, each LV porcelain bushing creates insulated passages for brass conductive terminals passing through the sealed metal transformer tank. Without qualified EN‑standard bushings, live internal transformer wiring would directly contact the grounded metal tank, creating severe electric‑shock risks and frequent short‑circuit breakdown accidents. International transformer component purchasers frequently search keywords such as EN transformer bushing, LV porcelain insulator, brass flag bushing, EN‑standard transformer fitting for their power‑equipment procurement plans. The complete EN‑series bushing product lineup supplies current‑rate choices starting at 250A, moving through 630A and extending up to heavy‑duty 3150A specifications, fitting nearly all mainstream low‑voltage transformer equipment around the international power‑equipment market.

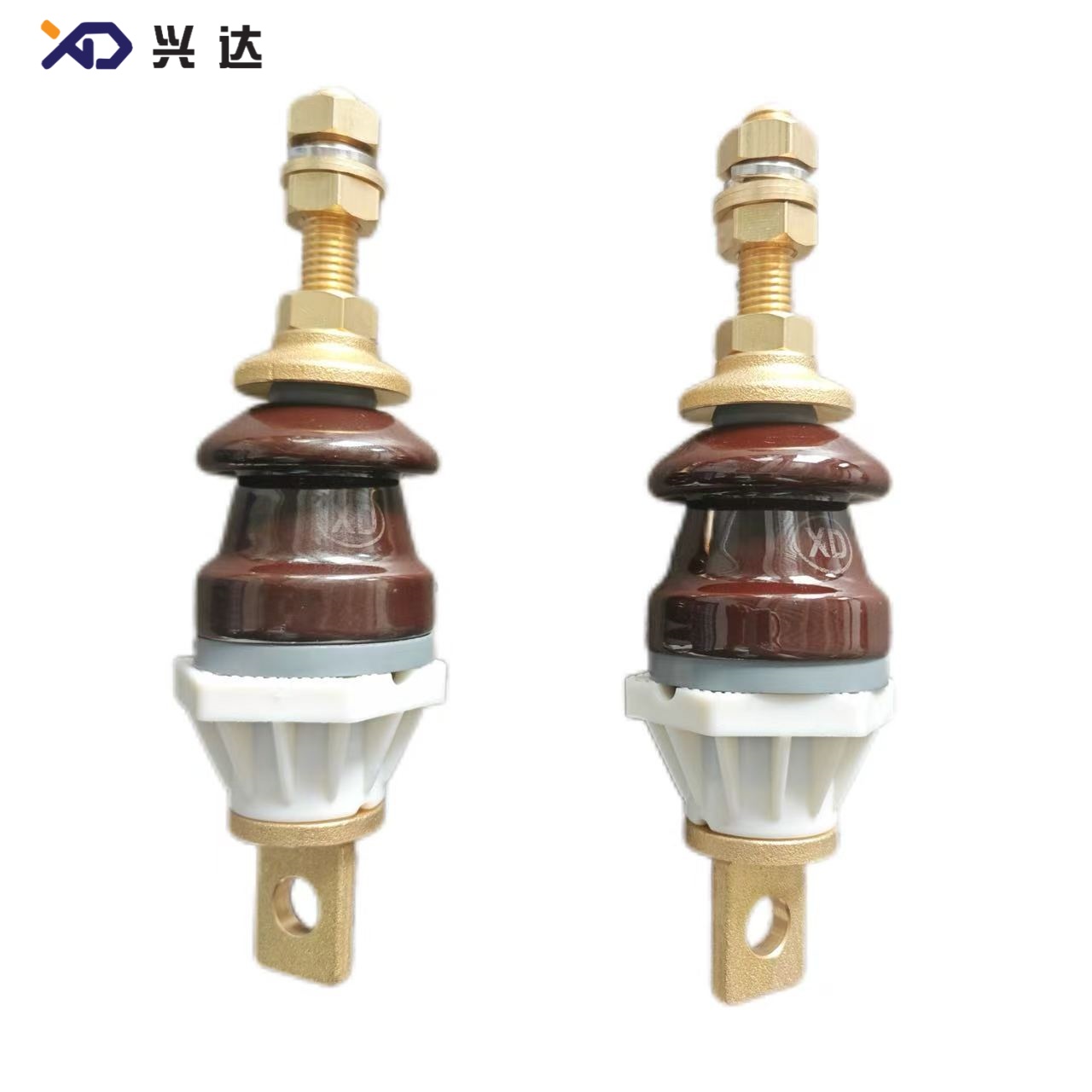

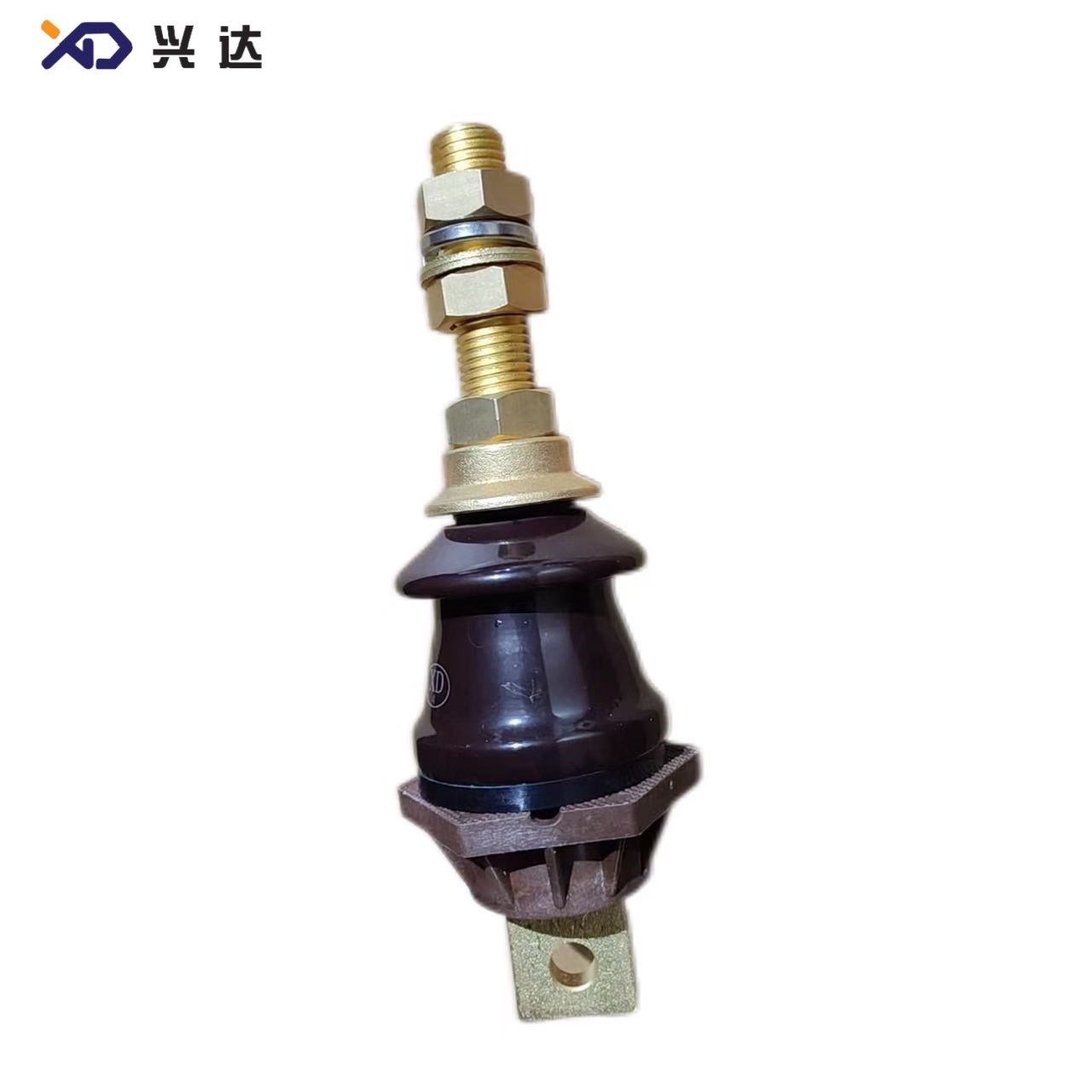

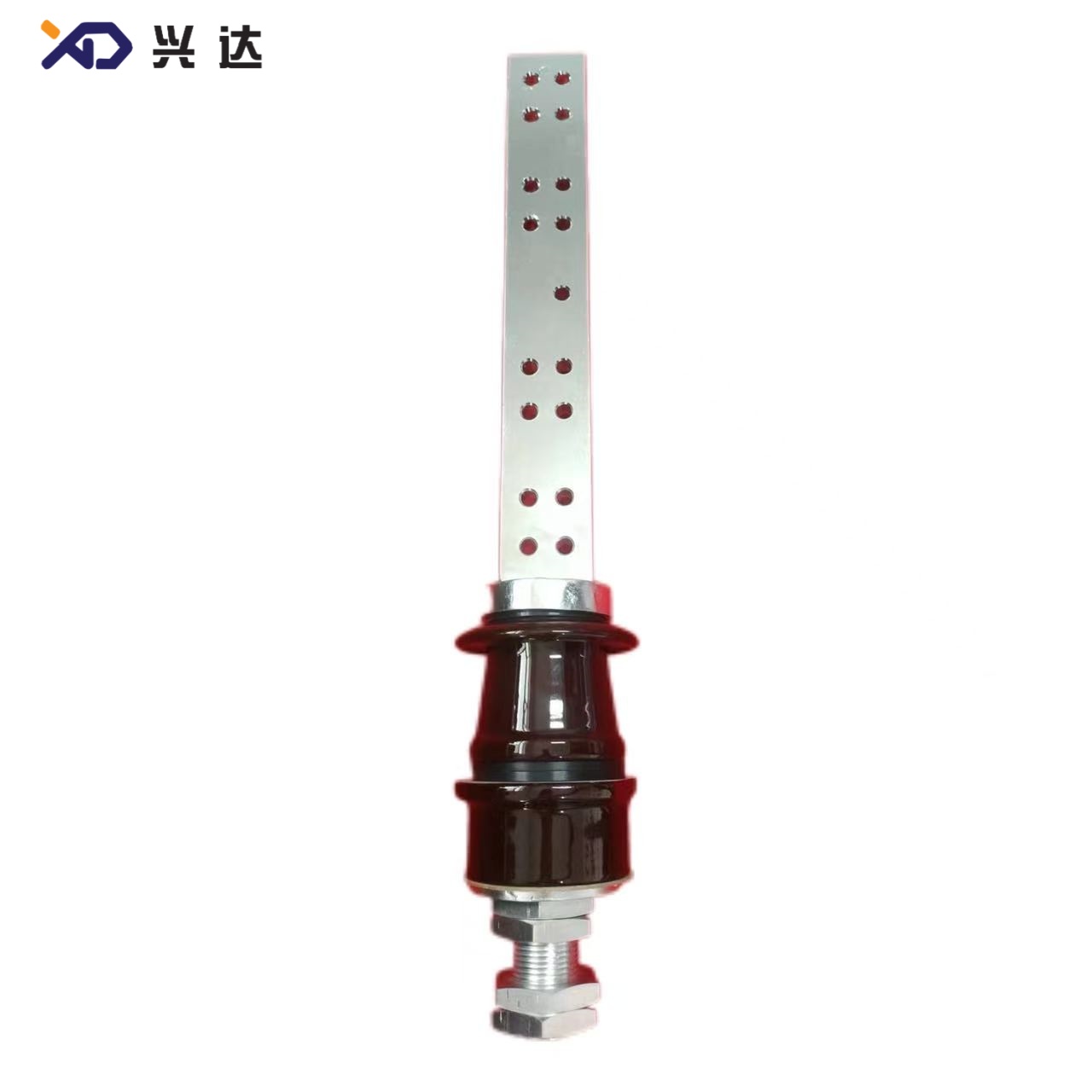

Officially defined, an EN low‑voltage transformer porcelain bushing is an assembled insulating component built with high‑strength glazed ceramic shell, brass flag‑style conductive connector, metal fasten pieces and oil‑resistant sealing washers, passing all EN‑regulated mechanical load, dielectric‑strength and heavy‑current endurance testing. A host of outstanding structural features improve the comprehensive performance of these transformer insulators. High‑temperature‑fired porcelain forms a rigid insulator body that resists cracking, scratches and mechanical impact damage. The smooth, glossy outer glaze rejects moisture, industrial grime and corrosive airborne materials. Precision‑cast brass flag terminals hold outstanding electrical conductivity and slow‑oxidation properties. Multiple adjustable structural parameters including overall H height, mounting thread Md size and tank‑opening d0 dimension deliver flexible installation choices for varied transformer hardware.

Long‑term operational advantages make EN‑compliant bushings the top pick for international transformer manufacturers. EN‑standard certification simplifies product export procedures for power‑equipment businesses targeting European‑region markets. Optimized creepage‑distance parameters drastically cut surface flash‑over risk in foggy, damp and heavily‑polluted industrial zones. Vibration‑resistant porcelain material copes with constant mechanical vibration generated by running transformers. Low‑loss conductive brass sections minimize heat buildup during high‑current transmission. Quick‑fit bolt‑on installation greatly speeds‑up bushing replacement and routine transformer maintenance.

EN LV porcelain bushings serve a wide spectrum of power‑supply‑related applications. Urban‑grid distribution transformers, heavy‑duty industrial power transformers, solar‑station matching power transformers, portable construction‑site transformers and compact box‑type substations all make use of EN‑series bushings. These insulating components adapt to indoor power‑distribution facilities, roadside outdoor transformer installations, underground mine power‑supply gear and chemical‑plant anti‑corrosion power‑distribution hardware.

Q1 Are EN‑series porcelain transformer bushings built for long‑time heavy‑duty workA1 Yes, qualified EN‑standard bushings adopt premium vitrified porcelain and high‑purity brass materials. When kept with routine maintenance, these insulators normally deliver 15‑25 years of stable running time, with strong tolerance against vibration, bad weather and industrial pollution.

Q2 Which routine maintenance steps should operators carry out on EN LV bushingsA2 Schedule routine visual inspections, surface cleaning and fastener tightening. Clear dust, chemical residue and damp stains on the porcelain glaze surface. Examine brass flag terminals for rust and oxidation. Tighten loose mounting nuts. Replace damaged, cracked or heavily‑worn bushings right away.

Q3 How to select the proper EN bushing model for your low‑voltage transformerA3 Match the bushing model according to transformer rated current, tank‑cover opening diameter, mounting thread specification and required overall installation height. Refer to complete dimension parameter tables to locate the compatible EN bushing variant for your transformer hardware.

Q4 Why do transformer porcelain bushings suffer surface flash‑over failuresA4 Flash‑over accidents mostly stem from dirt buildup, wet contamination and insufficient creepage distance on the insulator surface. EN‑standard bushings are engineered with sufficient creepage‑distance values and anti‑pollution glazed surfaces to greatly lower such failure chances.

Q5 Can EN low‑voltage porcelain bushings endure extreme cold outdoor environmentsA5 Standard EN‑type porcelain insulators withstand operating temperatures as low as minus 40℃. The low‑temperature‑resistant porcelain material will not crack under freezing‑weather conditions, fitting outdoor transformer installations in cold‑climate districts.
