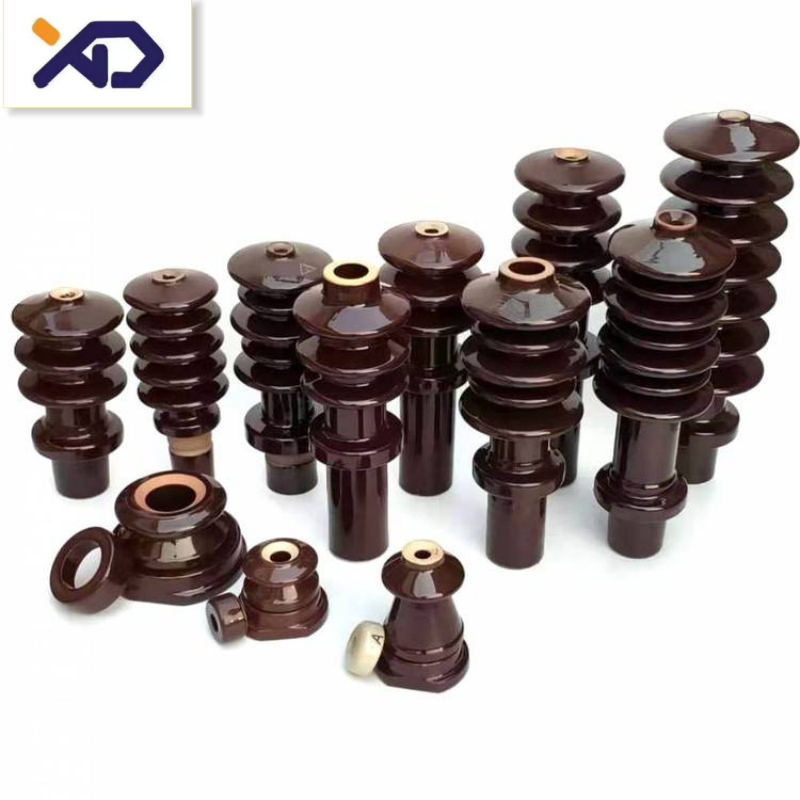

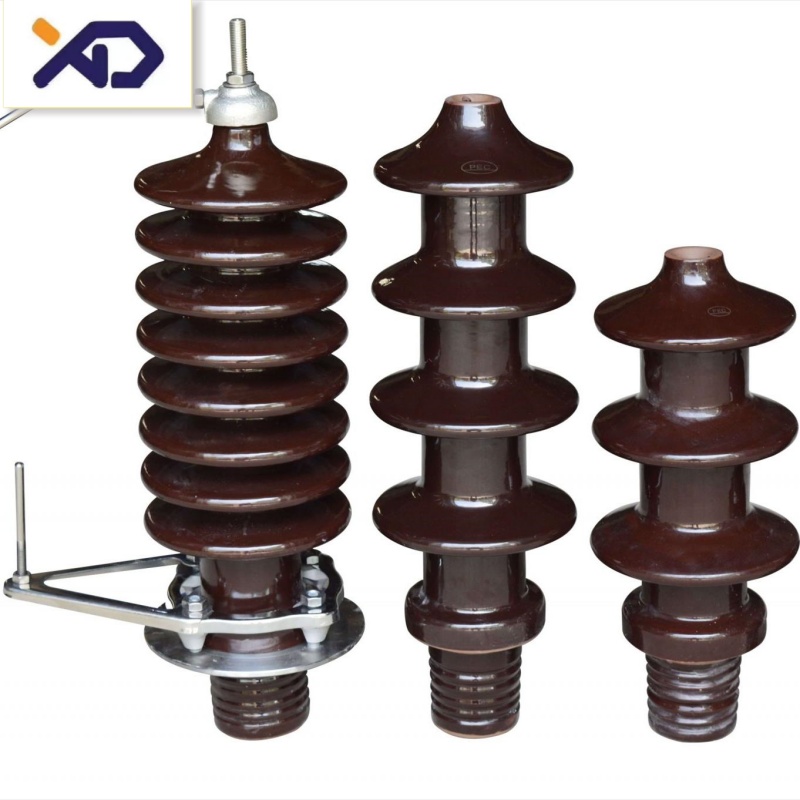

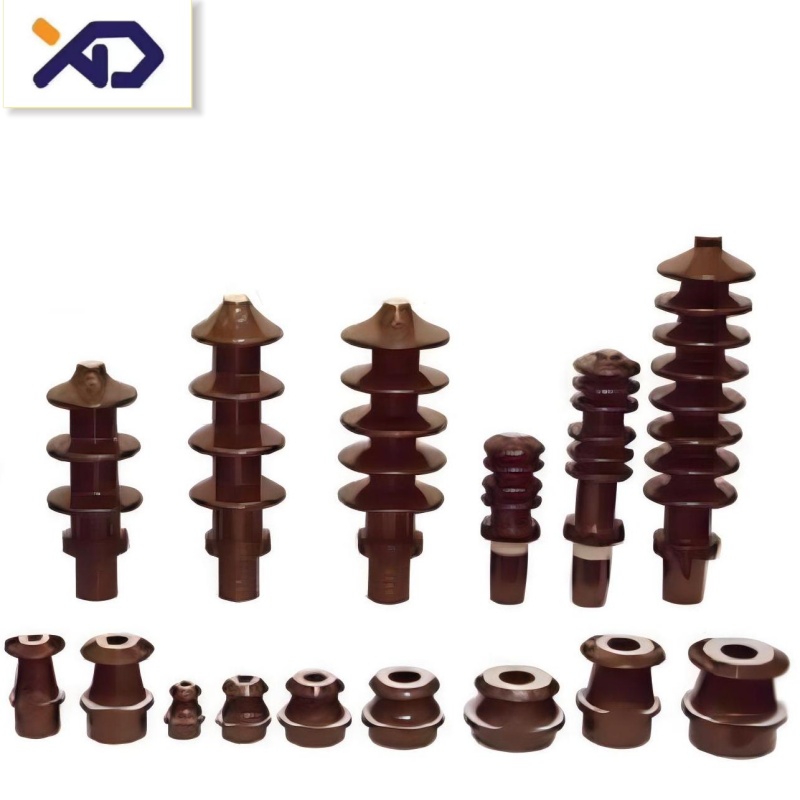

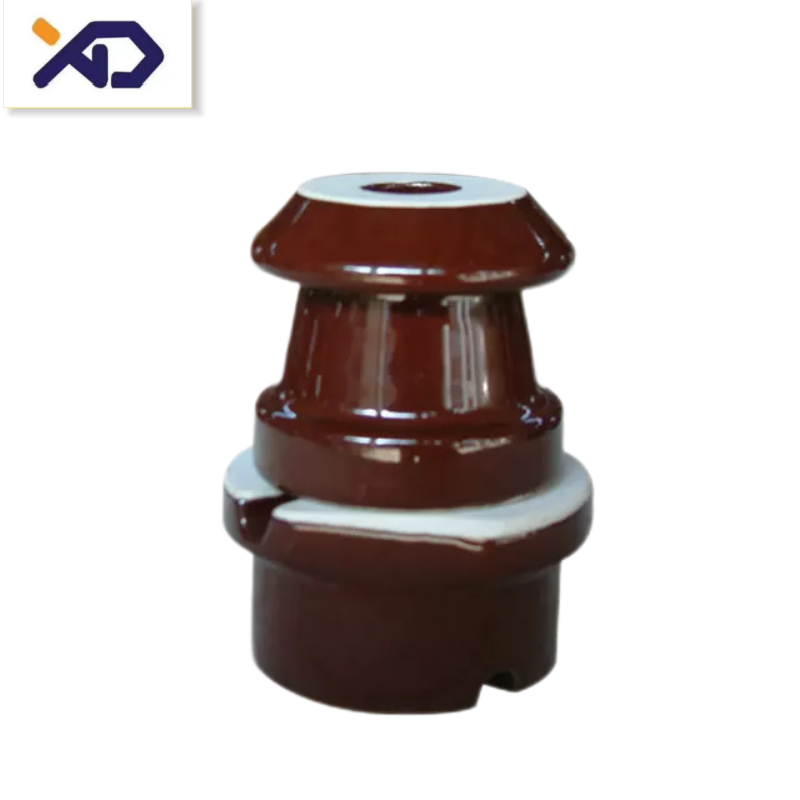

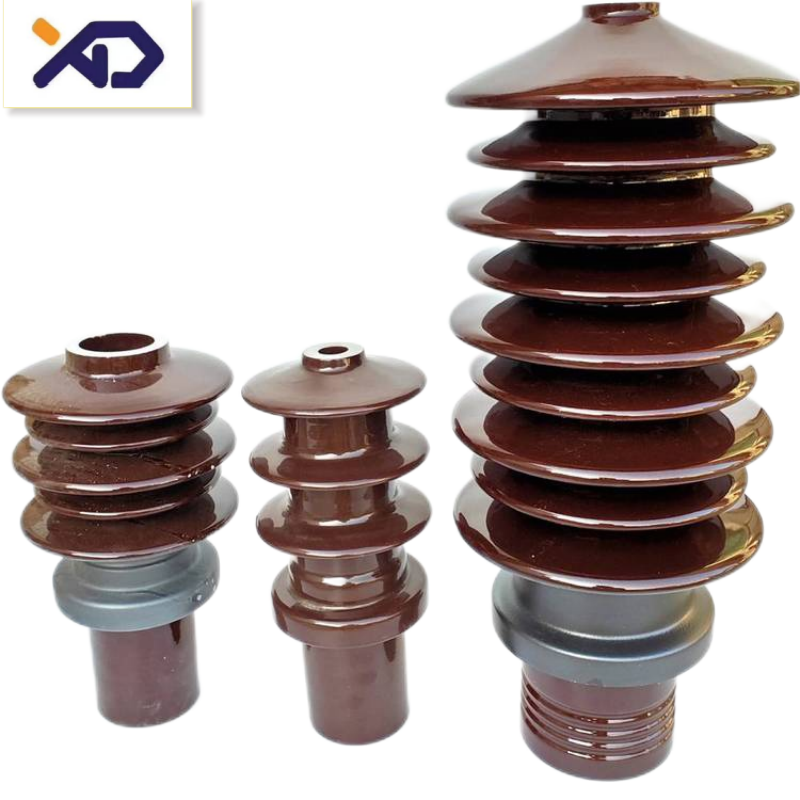

Ceramic bottle for transformer bushing

In modern power systems, the porcelain bottle of transformer bushing plays a crucial role and can be regarded as the hero behind ensuring stable power transmission.

The porcelain bottle of transformer bushing, as a high-performance insulation component, has the primary mission of ensuring reliable insulation isolation between high-voltage conductors and transformer oil tanks. It is like a sturdy defense line, effectively preventing current leakage and short circuit risks, allowing transformers to operate safely and stably in high voltage environments. Whether it is the high-voltage outlet bushing on the high-voltage side, the low-voltage outlet bushing, or the medium voltage outlet bushing, porcelain insulators are like loyal guardians, safeguarding power transmission. It usually contains transformer oil inside, which not only further enhances the insulation performance, but also has excellent heat dissipation ability, which can timely dissipate the heat generated during the operation of the transformer, ensuring that the equipment is always at a suitable working temperature, greatly extending the service life of the transformer.

From a design perspective, the umbrella skirt of the porcelain vase is uniquely designed. It cleverly increases the creepage distance, effectively preventing floating dust and other impurities from adhering to the surface of the porcelain bottle and forming a conductive path, thereby avoiding the creepage phenomenon caused by voltage breakdown at both ends of the porcelain bottle, greatly improving the operational reliability of the equipment in complex environments.

In terms of material selection, the porcelain bottle adopts high-quality porcelain materials, which have good insulation and heat resistance properties, and can withstand multiple tests of mechanical stress, thermal stress, and electric field force. With the continuous advancement of technology, our porcelain bottles strive for excellence in manufacturing processes, and their mechanical strength, internal pressure strength, and bending strength have all reached industry-leading levels, providing a solid guarantee for the stable operation of high-voltage electrical appliances.

Whether it is the expansion and upgrading of urban power grids or the grid connection projects of new energy power stations; Whether it is a onshore wind farm or an offshore wind power project with extremely strict equipment performance requirements, the porcelain bottle of the transformer bushing can perfectly adapt to various application scenarios with its excellent performance. In the field of power grid construction, it occupies a dominant position; In the field of supporting new energy, its importance is also increasing day by day.

Now, we sincerely recommend our transformer bushing porcelain bottles to the vast number of practitioners in the power industry. It is not only a product, but also a reliable guarantee for the stable operation of the power system. Choosing our porcelain bottles means choosing safety, efficiency, and reliability. Let's work together and contribute to building a more stable and powerful power network.
