30kW Floor-Standing DC Fast Charging Station (CCS2 Connector · Aluminum Alloy Body · 200~1000VDC Wide Output)
30kW Floor-Standing DC Fast Charger · CCS2 Single Gun · 200~1000VDC
Product Overview

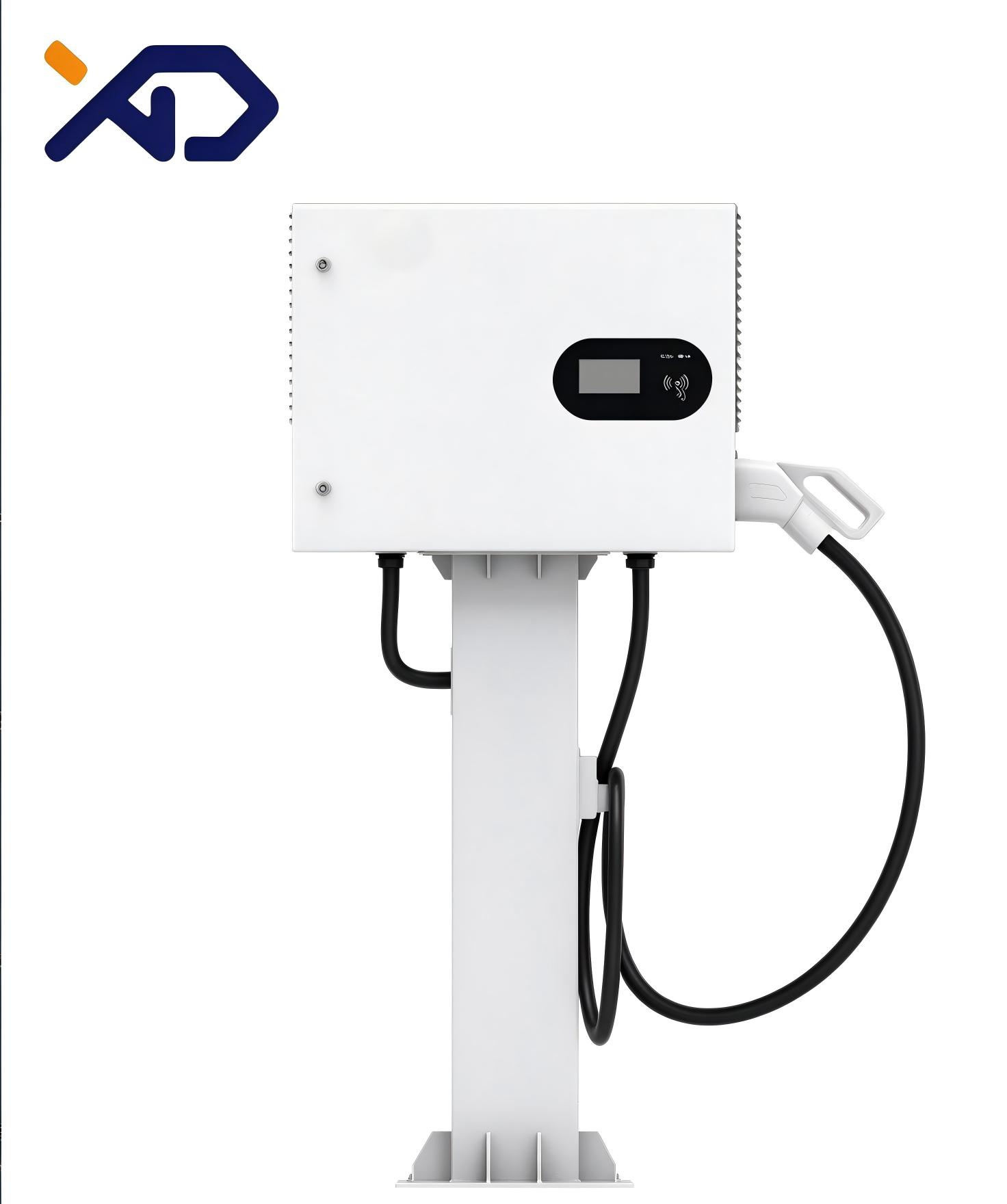

This 30kW floor-standing DC fast charger comes in a lightweight, corrosion-resistant aluminum alloy cabinet with a single CCS2 connector and a 5m cable. The wide output range of 200~1000VDC covers both 400V-platform and 800V-platform vehicles. Powered from a standard 400VAC three-phase supply (3P+N+PE, 47A input), it installs wherever commercial power exists. Dual-channel 4G and Wi-Fi connectivity with OCPP 1.6 open protocol integrates with mainstream charging platforms, while App, QR-code and RFID starting (credit card optional) give operators flexible business models — ideal for commercial parking, hotels, business parks and fleet depots.
Key Features
- 30kW DC fast charging: roughly half-hour top-ups — several times faster than AC charging, at a destination-charging-friendly cost;
- 200~1000VDC wide output: serves 400V and 800V platform vehicles with one cabinet;
- CCS2 single gun: the mainstream European interface standard, 5m charging cable;
- Aluminum alloy floor-standing body: lightweight and corrosion-resistant, RAL7035 finish, indoor or outdoor mounting;
- OCPP 1.6 open protocol: connects to mainstream charge-point management platforms — no vendor lock-in;
- 4G + Wi-Fi dual channel: flexible site networking options;
- Multiple start modes: App / QR code / RFID card, with credit card payment optional.
Technical Parameters
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | DC030k (TBC) | Rated Output Power | 30kW |
| Input Voltage | 400VAC±10%, 3P+N+PE | Input Frequency | 50/60Hz |
| Input Current | 47A | Output Voltage Range | 200~1000VDC |
| Interface Standard | CCS2 (single gun) | Cable Length | 5m |
| Connectivity | 4G / Wi-Fi | Protocol | OCPP 1.6 |
| Start Mode | App / QR / RFID card | Payment | Credit card (optional) |
| Cabinet Material | Aluminum alloy | Color | RAL7035 |
| Mounting | Floor-standing | Packing Size | 84.7×76.2×42cm (TBC) |
| Gross Weight | approx. 40kg (TBC) | Warranty | per factory commitment (TBC) |
Typical Applications
| Sector | Description |
|---|---|
| Commercial Parking | Fast top-ups while customers shop — better turnover and revenue per bay |
| Hotels / Business Parks | Destination charging completed during stays or working hours |
| Fleet Depots | Queued fast charging for logistics and ride-hailing fleets, managed via OCPP platform |
| Gas Station / C-Store Retrofits | Add fast-charging bays on existing three-phase supply without major grid upgrades |
Why Choose XD?
With years of export experience in new energy and power equipment, XD offers a one-stop solar-storage-charging line — solar modules, hybrid inverters, storage batteries, AC/DC EV chargers and cabling — with complete system configuration for your project. Charger power tiers, cable options, communication protocols and branding are customizable (OEM/ODM), with full export documentation support. Inquiries are welcome.
