DIN Standard Transformer Porcelain Bushing Complete Guide

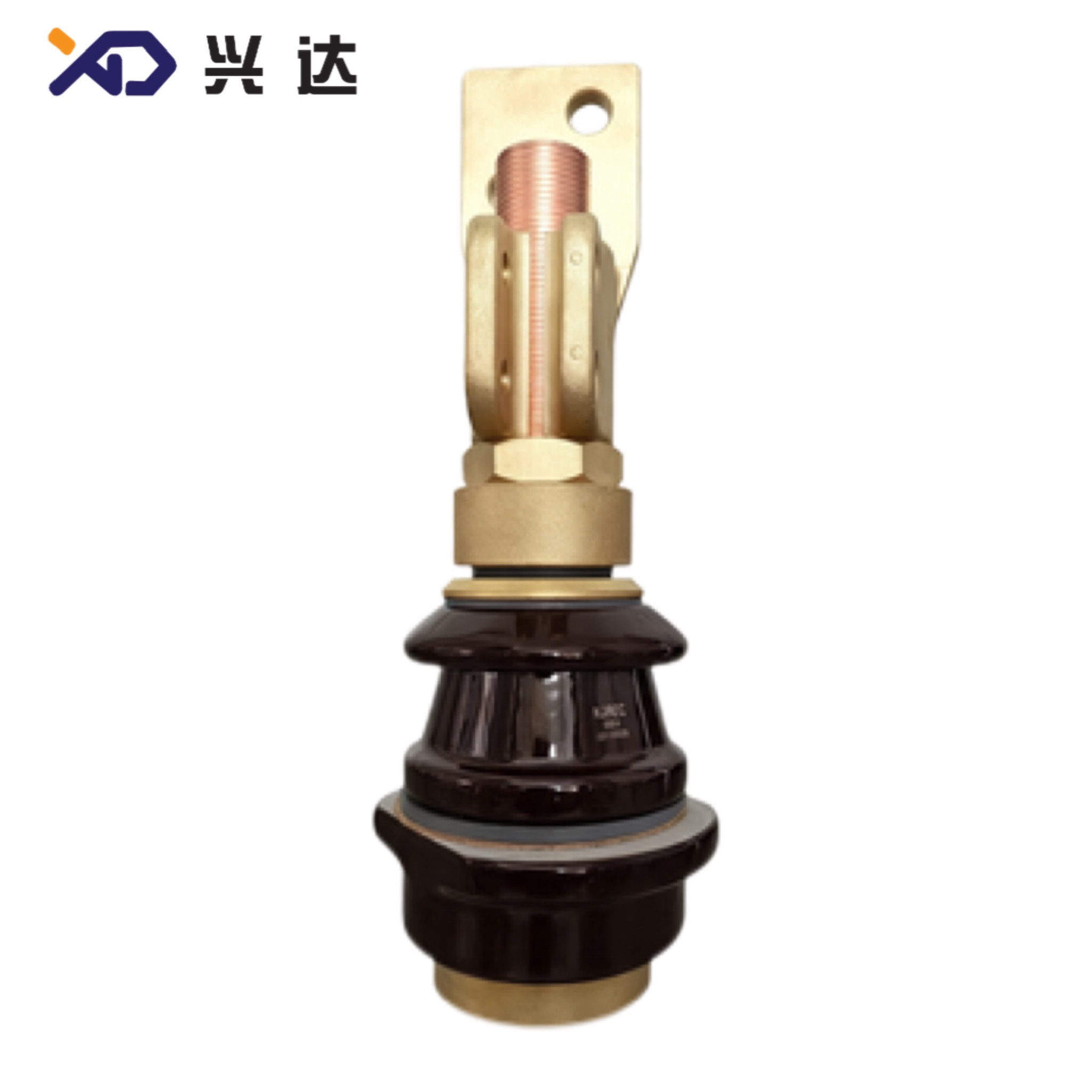

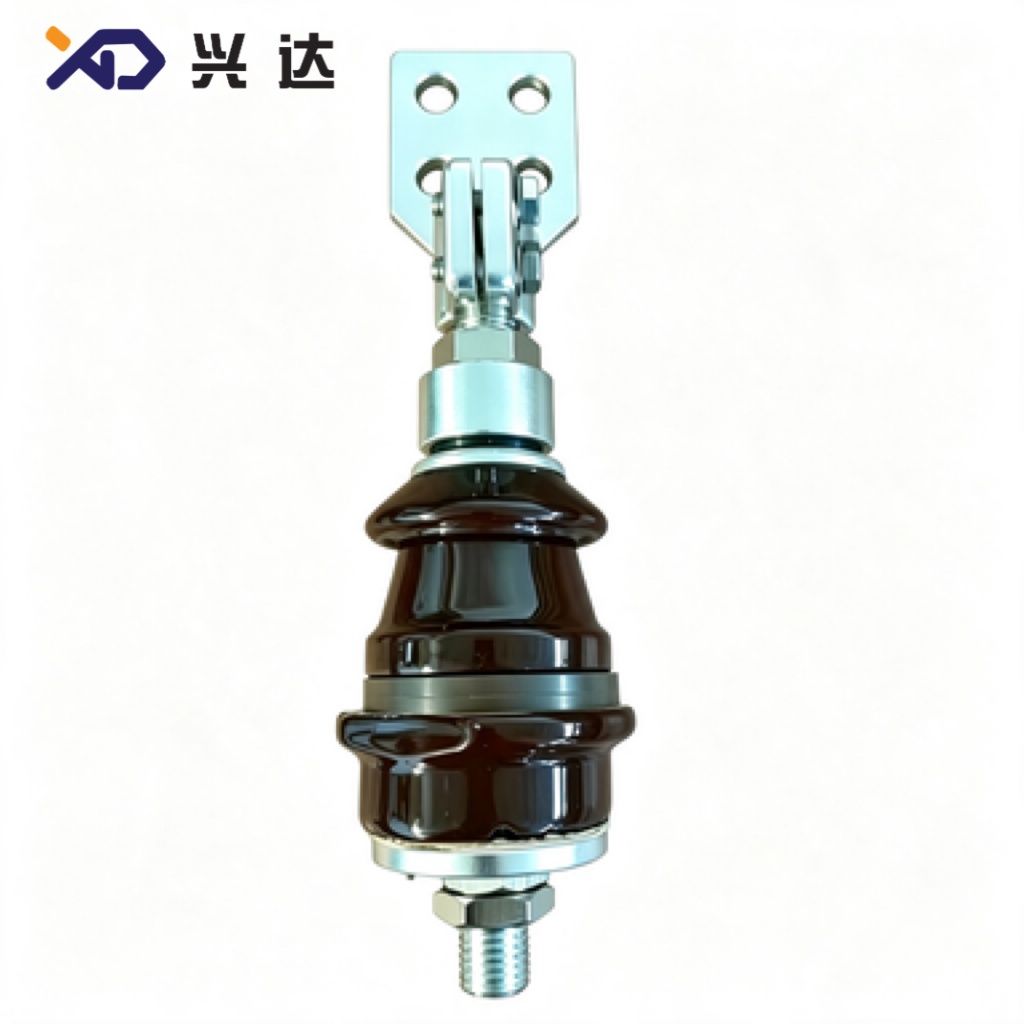

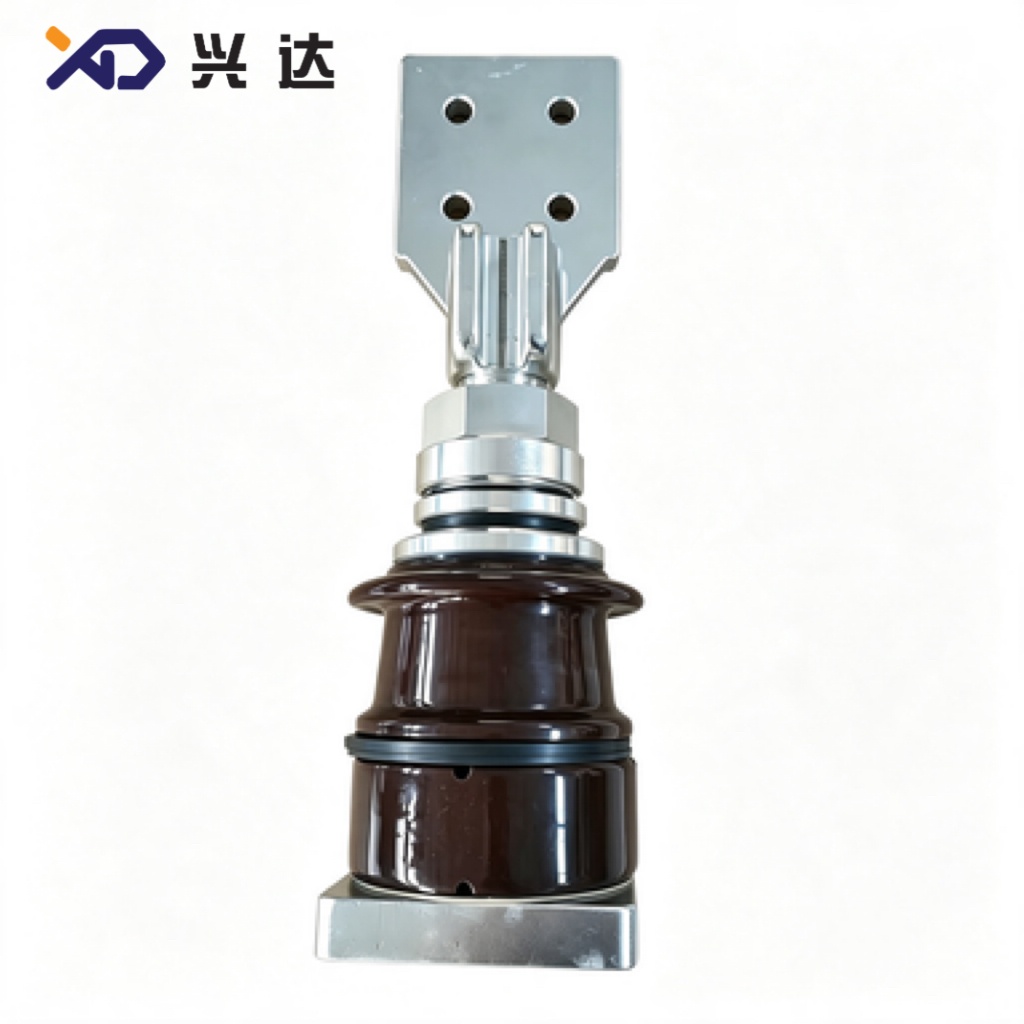

1. Basic Introduction to DIN Standard Bushing
DIN standard bushing is a core insulating and conductive component specially designed for low voltage and medium voltage distribution transformers, strictly manufactured in accordance with German DIN 42530, DIN 42531 and DIN 42539 industrial standards. As a key penetration part of transformer equipment, the DIN bushing undertakes two core functions in power systems: isolating live conductive parts from grounded transformer tanks and external environments, and stably transmitting rated current for normal power operation. Mainly covering voltage levels of 1KV to 3KV and current ranges from 1000A to 4500A, DIN porcelain bushing is widely recognized for standardized dimensions, universal compatibility and stable electrical performance. Unlike ordinary customized transformer bushings, all DIN standard bushing products feature unified structural sizes, installation specifications and performance test standards, realizing full interchangeability for most European standard distribution transformers. This standardization advantage makes DIN transformer bushing the preferred insulating accessory for low voltage power distribution equipment, industrial power transformers and civil power supply transformer systems, ensuring safe and continuous operation of power transmission and distribution links.
2. Core Features, Advantages and Application Scenarios of DIN Bushing
DIN standard porcelain bushing adopts high density industrial electrical porcelain and high precision brass conductive materials, with mature integrated firing and machining processes, forming unique performance advantages that adapt to complex power operation environments. In terms of core features, this DIN transformer bushing has ultra high insulation strength, excellent partial discharge resistance and low dielectric loss characteristics. The professional porcelain insulation structure effectively avoids breakdown and flashover risks during long term continuous operation, while the optimized conductive structure maintains stable electrical conductivity under full load and overload conditions. All structural designs of DIN bushing comply with international electrical safety specifications, with standardized umbrella structure, creepage distance and dry arcing distance, fully adapting to indoor and outdoor harsh working conditions such as high temperature, humidity, dust and pollution.
In terms of practical application advantages, DIN standard bushing boasts outstanding durability and environmental adaptability. The high strength porcelain body has strong anti aging, anti corrosion and anti pollution flashover capabilities, avoiding performance attenuation caused by long term outdoor exposure. Its compact and integrated structural design achieves tight sealing performance, effectively preventing moisture, dust and oil from invading the transformer interior, reducing equipment failure rates. In addition, DIN transformer bushing supports flexible specification matching and personalized customization, covering multiple current and voltage grades to meet the assembly needs of different power transformers. The standardized installation size greatly reduces equipment replacement and maintenance costs, realizing quick disassembly and assembly, which significantly improves the maintenance efficiency of power equipment. Meanwhile, all DIN porcelain bushing products pass strict factory performance tests and meet multiple international standard systems, with reliable operation stability and long service life.
In terms of application scenarios, DIN standard bushing is mainly applied to low voltage and medium voltage oil immersed distribution transformers, covering industrial power distribution systems, urban and rural civil power grid transformation, factory supporting transformer equipment, commercial building power supply systems and new energy power station supporting transformer devices. It is also widely used in indoor power distribution rooms, outdoor transformer stations, industrial and mining enterprise power supply equipment and other scenarios that require stable insulation and safe current transmission. Due to its standardization and universality, DIN transformer bushing has become a universal matching accessory for European standard power transformers and is exported and applied in many countries and regions worldwide.
3. DIN Standard Transformer Bushing Complete Specification Table
The following are universal dimensional and performance parameters of conventional DIN standard bushing series, covering mainstream models with voltage 1-3KV and current 1000-4500A. All specifications comply with DIN industrial standards, supporting universal assembly and matching of standard transformers, and can be customized according to actual engineering requirements.
Code | Model | H | h2 | h3 | h4 | a3xa4 | a1xa2 | d4 | t | Md | d1 | d2 | d3 | S | S1 | tank opening d0 | dry arcing distance h1 | creep distance | umbrella shield | weight kg |
|---|
XD 1000 1 DIN | DIN 1 1000 | 324 | 58 | 17 | 4 8 | 60x60 | 26x26 | 14 | 10 | M30 2 | 90 | 110 | 90 | 70 | 50 | 56 | 57 | 75 | 1 single umbrella | 5.5 |
XD 2000 1 DIN | DIN 1 2000 | 405 | 63 | 22 | 6 10 | 100x100 | 50x40 | 14 | 15 | M42 3 | 104 | 125 | 105 | 125 | 60 | 70 | 58 | 70 | 1 single umbrella | 12 |
XD 3150 1 DIN | DIN 1 3150 | 434 | 68 | 27 | 6 10 | 120x120 | 60x40 | 14 | 15 | M48 3 | 125 | 150 | 125 | 110 | 60 | 90 | 57 | 75 | 1 single umbrella | 16.5 |
XD 1000 3 DIN | DIN 3 1000 | 372 | 78 | 17 | 4 8 | 60x60 | 26x26 | 14 | 10 | M30 2 | 110 | 110 | 95 | 70 | 50 | 56 | 87 | 120 | 1 single umbrella | 6.5 |
XD 2000 3 DIN | DIN 3 2000 | 480 | 83 | 22 | 6 10 | 100x100 | 50x40 | 14 | 15 | M42 3 | 125 | 125 | 105 | 100 | 60 | 70 | 89 | 120 | 1 single umbrella | 13.5 |
XD 3150 3 DIN | DIN 3 3150 | 495 | 88 | 27 | 6 10 | 120x120 | 60x40 | 14 | 15 | M48 3 | 145 | 150 | 125 | 110 | 60 | 90 | 88 | 120 | 1 single umbrella | 18.7 |
XD 4500 3 DIN | DIN 3 4500 | 560 | 101 | 30 | 6 12 | 150x150 | 70x70 | 14 | 20 | M56 3 | 175 | 160 | 160 | 100 | 119 | 95 | 125 | 1 single umbrella | 33.5 |
|
Note: The above data covers conventional size specifications of standard DIN bushing products. All structural dimensions and performance parameters can be customized and processed according to actual customer engineering and equipment matching requirements.
4. FAQ About DIN Standard Transformer Bushing
Q1: Are DIN standard bushings durable for long term power operation?
Yes, DIN transformer bushing features excellent long term durability and operational stability. Made of high density industrial electrical porcelain and high purity brass conductive materials, the DIN porcelain bushing undergoes high temperature firing and precision machining processes, with strong mechanical strength, anti aging performance and anti pollution flashover ability. The standardized structural design avoids structural deformation and performance degradation under long term load operation, high temperature environment and outdoor exposure. With low dielectric loss and stable insulation performance, qualified DIN standard bushing can maintain safe and reliable operation for more than 10 years under normal working conditions, fully meeting the long term service requirements of power distribution transformers.
Q2: How to maintain and inspect DIN bushing regularly?
Daily maintenance of DIN standard bushing is simple and efficient, suitable for routine inspection of power equipment. First, conduct regular surface cleaning to remove dust, oil stains and floating pollutants on the porcelain surface, preventing creepage discharge and flashover caused by dirt accumulation. Second, regularly check the sealing structure and connection parts of the DIN transformer bushing to ensure tight installation and no moisture or oil leakage. Third, inspect the porcelain body for cracks, damage or aging deformation, and test the insulation resistance regularly to ensure insulation performance meets standard requirements. Finally, check the conductive terminal connection status to avoid poor contact and overheating problems. Regular maintenance can effectively extend the service life of DIN porcelain bushing and reduce equipment failure risks.
Q3: Are DIN standard bushings universally compatible with European transformers?
Absolutely. All DIN bushing products are designed and manufactured strictly in accordance with unified German DIN industrial standards including DIN 42530 and DIN 42539. The installation size, structural parameters, thread specification and insulation performance of DIN transformer bushing adopt unified industrial standards, realizing full dimensional interchangeability and performance matching for all conventional European standard low voltage and medium voltage distribution transformers. Whether for new transformer assembly or old equipment replacement, standard DIN porcelain bushing can achieve direct installation and matching without secondary modification, which is the core reason for its wide application in European power grid systems and global standard transformer equipment.
Q4: What working environment is suitable for DIN porcelain bushing?
DIN standard bushing has strong environmental adaptability and can work stably in various indoor and outdoor power operation environments. It is suitable for normal temperature and high temperature working environments of oil immersed transformers, adapting to ambient temperature ranges commonly used in power systems. The anti pollution and anti aging porcelain structure enables the DIN transformer bushing to resist humid air, industrial dust, mild corrosive gas and outdoor ultraviolet radiation, suitable for urban power grid stations, industrial and mining workshops, outdoor transformer platforms and other complex scenarios. Meanwhile, the optimized sealing and anti vibration structure can adapt to slight vibration during transformer operation, maintaining stable insulation and conductive performance in long term continuous operation.
