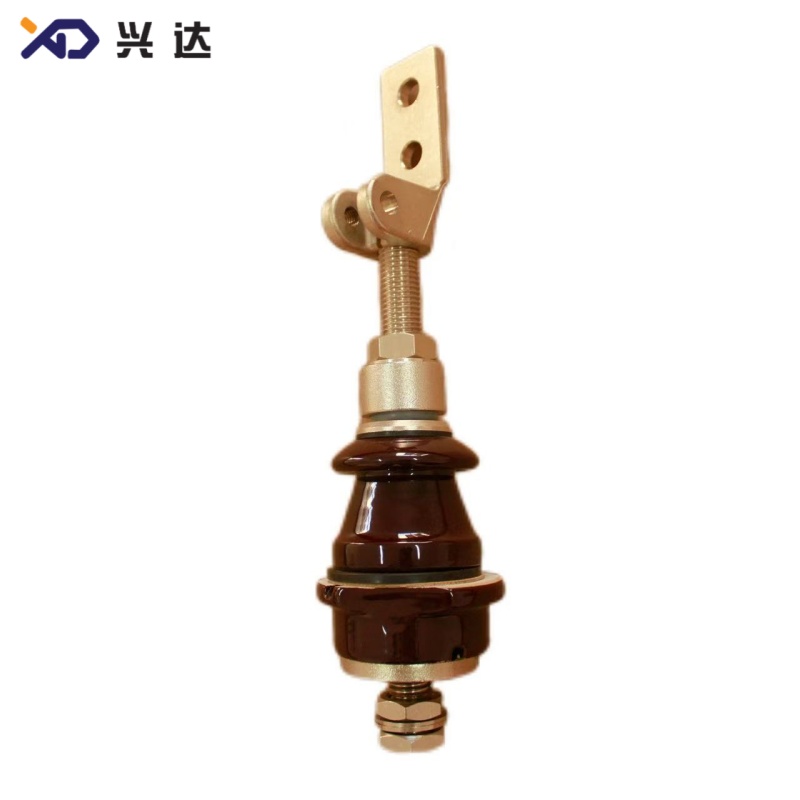

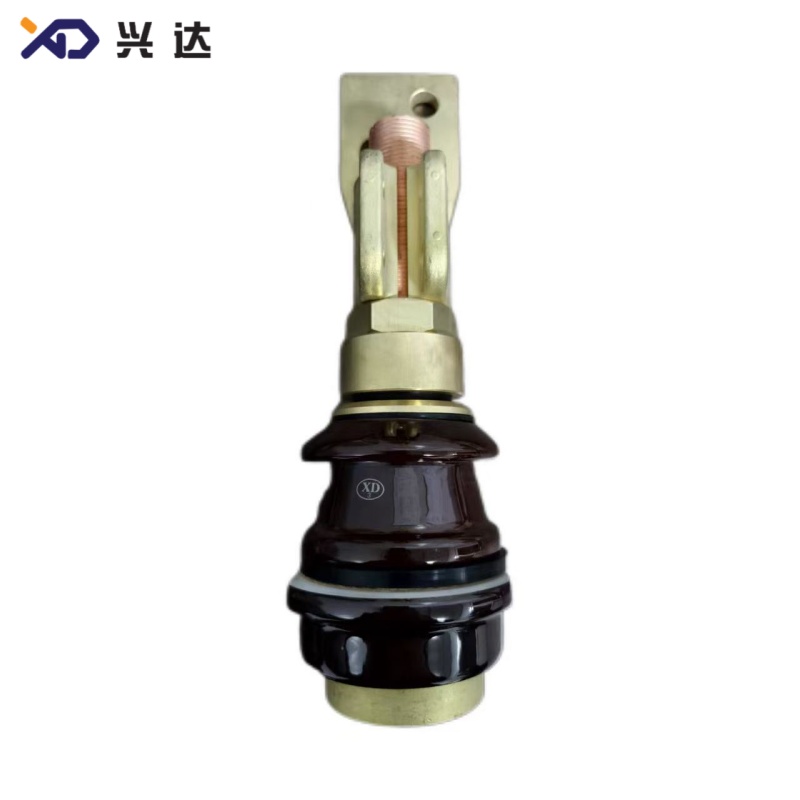

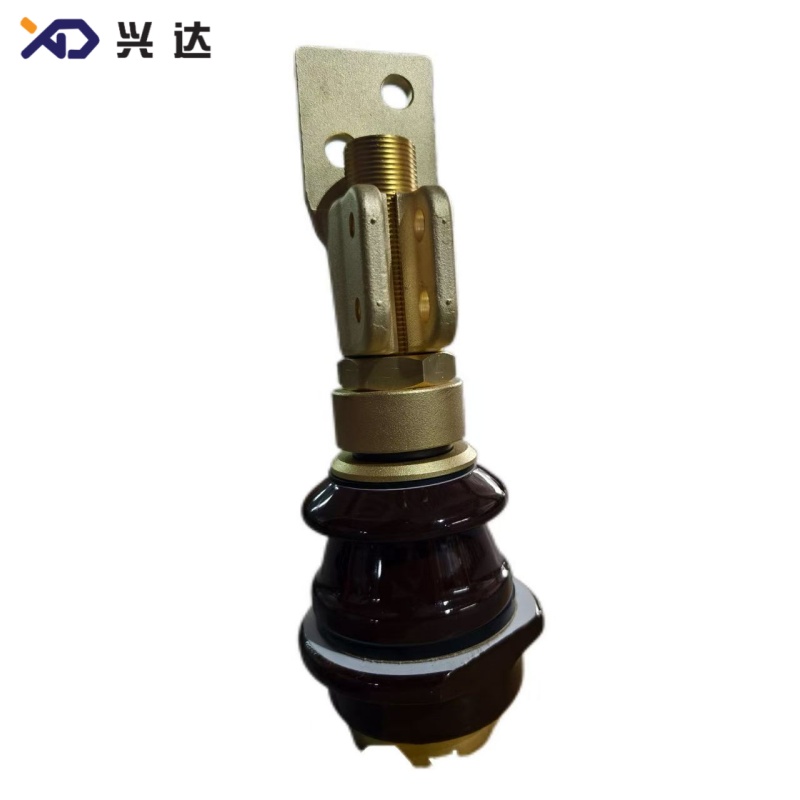

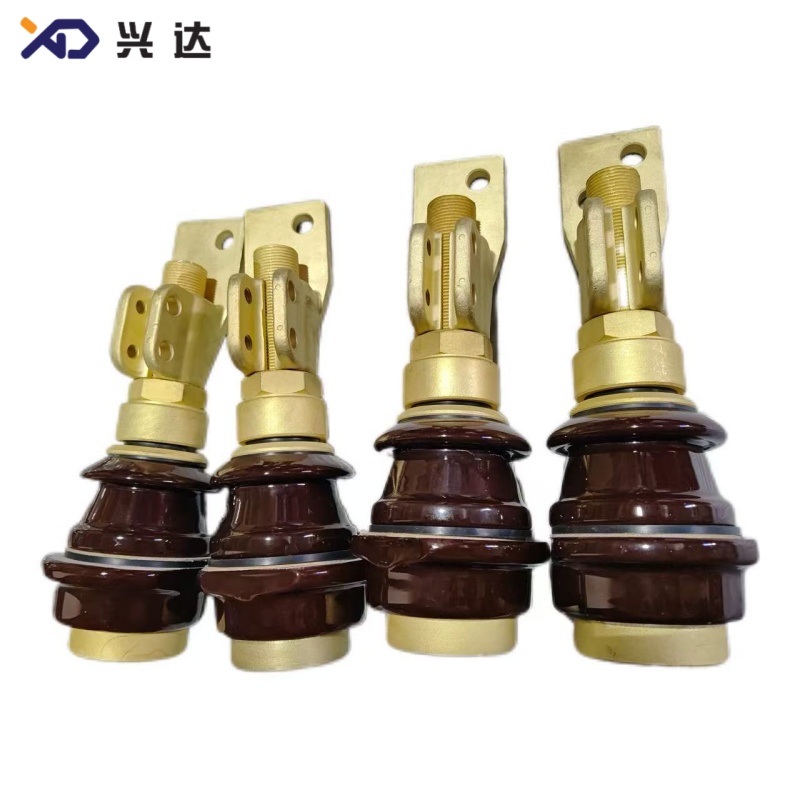

1. Basic Definition and Core Functions of DIN Porcelain Bushing

DIN porcelain bushing is a standardized penetration insulation component exclusively used for low-voltage and medium-voltage oil-immersed distribution transformers, fully compliant with German DIN industrial specification systems. As an indispensable core part of transformer power connection structure, DIN transformer bushing undertakes two core functions: electrical insulation and current transmission. It isolates live conductive parts from transformer metal shells and external grounding systems to prevent electric leakage and personal safety accidents, while stably conducting rated operating current to ensure normal power supply of the distribution network. DIN bushing covers 1KV and 3KV voltage levels and 1000A to 4500A full current range, covering all conventional specifications of European standard distribution transformers. Different from arbitrary-designed non-standard bushings, all DIN porcelain bushing products implement unified dimensional tolerance, unified insulation standards and unified factory testing procedures, achieving high consistency and universal interchangeability, and becoming the mainstream standard accessory for global standard transformer supporting applications.

2. Structural Features, Operational Advantages and Industry Applications

DIN standard bushing adopts dual high-quality material configuration of industrial-grade electrical porcelain and high-purity brass, with excellent structural and electrical performance. The porcelain insulator body is formed by precise mold pressing and high-temperature sintering, featuring dense structure, high mechanical compressive strength and strong fracture resistance. The smooth and flat glaze layer effectively isolates moisture and pollutants, significantly improving the product’s anti-fouling flashover capability in harsh environments. The internal brass conductive core has low resistivity and high thermal stability, which can maintain stable current transmission and low temperature rise under long-term full-load and overload transient conditions. The overall structure optimizes insulation gaps and creepage distance according to international electrical safety standards, effectively inhibiting partial discharge phenomenon and avoiding insulation breakdown failure caused by long-term electrical stress. Whether in high-temperature, high-humidity, dusty or lightly corrosive industrial environments, DIN transformer bushing can maintain stable and reliable working performance.

In actual power system operation, DIN bushing has obvious practical advantages in safety, stability and economy. First, the integrated sealing structure achieves excellent waterproof and oil-proof effects, effectively preventing external moisture from penetrating into the transformer interior and avoiding insulation damp failure and oil leakage problems. Second, the highly standardized design realizes universal interchangeability. For transformer manufacturers and power maintenance departments, DIN standard bushing can replace old equipment of the same specification directly without adaptive modification, greatly improving production and maintenance efficiency. Third, the product has strong anti-aging and anti-corrosion performance, adapting to long-term continuous operation of transformers and reducing equipment failure rate and replacement frequency. In addition, DIN porcelain bushing supports reasonable specification customization on the basis of standard models, which can meet the matching needs of special transformer structures and limited installation space.

DIN transformer bushing is widely used in various power distribution scenarios dominated by European standard transformers. It is suitable for municipal power grid distribution transformers, industrial enterprise dedicated transformers, commercial complex power supply equipment, rural power grid renovation supporting equipment and new energy power generation step-down transformers. The product can freely switch between indoor and outdoor working scenarios, adapting to stable indoor environment and complex outdoor climate conditions such as wind, rain, frost and snow. With its strict standardization, high safety coefficient and strong environmental adaptability, DIN standard bushing has been widely recognized by the global power industry and has become the preferred standard insulator for standardized transformer manufacturing, equipment renewal and power engineering construction.

3. DIN Standard Transformer Bushing Complete Parameter List

The following table displays the complete structural dimensions, installation parameters and weight specifications of all mainstream DIN bushing models. All data strictly comply with German industrial standards, covering full current and voltage grades. Standard models support universal assembly, and personalized customized services are available for special engineering and non-standard equipment needs.

Code	Model	H	h2	h3	h4	a3xa4	a1xa2	d4	t	Md	d1	d2	d3	S	S1	tank opening d0	dry arcing distance h1	creep distance	umbrella shield	weight kg
XD 1000 1 DIN	DIN 1 1000	324	58	17	4 8	60x60	26x26	14	10	M30 2	90	110	90	70	50	56	57	75	1 single umbrella	5.5
XD 2000 1 DIN	DIN 1 2000	405	63	22	6 10	100x100	50x40	14	15	M42 3	104	125	105	125	60	70	58	70	1 single umbrella	12
XD 3150 1 DIN	DIN 1 3150	434	68	27	6 10	120x120	60x40	14	15	M48 3	125	150	125	110	60	90	57	75	1 single umbrella	16.5
XD 1000 3 DIN	DIN 3 1000	372	78	17	4 8	60x60	26x26	14	10	M30 2	110	110	95	70	50	56	87	120	1 single umbrella	6.5
XD 2000 3 DIN	DIN 3 2000	480	83	22	6 10	100x100	50x40	14	15	M42 3	125	125	105	100	60	70	89	120	1 single umbrella	13.5
XD 3150 3 DIN	DIN 3 3150	495	88	27	6 10	120x120	60x40	14	15	M48 3	145	150	125	110	60	90	88	120	1 single umbrella	18.7
XD 4500 3 DIN	DIN 3 4500	560	101	30	6 12	150x150	70x70	14	20	M56 3	175	160	160	100	119	95	125	120	1 single umbrella	33.5

Note: Standard DIN bushing dimensions are for general industry use. Customized size modification and structural optimization are supported to meet special installation and engineering technical requirements.

4. Common Questions & Answers for DIN Bushing Usage

Q1: Are DIN bushings suitable for long-term full-load continuous operation?

Yes, all DIN standard bushing models are professionally designed and tested for long-term full-load continuous operation. The high-conductivity brass core effectively reduces operating resistance and temperature rise, while the low-loss electrical porcelain insulator stabilizes insulation performance under long-term electrical load. All products pass strict full-load aging tests and partial discharge tests before delivery. Within the rated voltage and current range, DIN transformer bushing can operate stably for years without overheating, insulation aging or electric breakdown, fully meeting the continuous operation needs of industrial and municipal power transformers.

Q2: What environmental conditions can DIN bushing withstand?

DIN porcelain bushing has strong comprehensive environmental adaptability. It can withstand normal temperature changes from low-temperature winter environments to high-temperature summer working conditions, and resist high humidity, heavy fog and rainy weather. The anti-pollution glazed surface can effectively resist industrial dust, oil pollution and mild corrosive gas erosion. In addition, the product has excellent ultraviolet radiation resistance, avoiding performance degradation caused by long-term outdoor sunlight exposure. Whether in urban power grids, industrial parks, mining areas or suburban outdoor transformer stations, DIN standard bushing can maintain stable working condition.

Q3: What are the key test items for qualified DIN bushing?

Qualified DIN transformer bushings must complete a complete set of professional tests, including appearance dimensional inspection, insulation resistance test, partial discharge test, power frequency voltage withstand test and temperature rise test. Dimensional inspection ensures compliance with DIN standard tolerances; insulation and withstand voltage tests guarantee electrical safety; partial discharge test verifies long-term operation stability; temperature rise test confirms full-load operation reliability. Only products that pass all standard tests can be applied to formal power engineering projects.

Q4: Why do European transformers prefer DIN standard bushings?

European transformers adopt a complete set of DIN industrial standard systems in structural design, so matching DIN bushing can achieve zero-error installation and performance matching. Standardized size, thread and insulation parameters ensure perfect compatibility with European standard transformer tanks and internal structures. Compared with non-standard bushings, DIN porcelain bushing has higher safety standards, more stable quality and better interchangeability, which is convenient for mass production, standardized assembly and later maintenance and replacement. Therefore, DIN standard bushing has become the default standard accessory for European transformer manufacturing industry.

1. Introduction to DIN Standard Transformer Bushing

A DIN standard transformer bushing is a precision-engineered insulating and current-conducting component specifically designed for low and medium voltage oil-immersed distribution transformers. Produced in strict accordance with German industrial DIN standards, this type of porcelain bushing serves as a critical barrier between live internal transformer conductors and grounded metal tank structures. The primary purpose of every DIN bushing is to ensure safe electrical isolation while enabling continuous, stable power transmission during full-cycle transformer operation. Covering standard voltage levels of 1KV and 3KV and current ratings spanning from 1000A to 4500A, DIN porcelain bushing fully covers mainstream specification requirements for European-style distribution transformers. Compared with non-standard custom bushings that suffer from irregular dimensions, inconsistent tolerances and unstable electrical performance, DIN transformer bushing adopts unified design standards, unified machining requirements and unified industry test criteria. This high-degree standardization brings complete mechanical interchangeability and electrical consistency, allowing DIN bushing to become the most widely adopted insulator accessory for standard power transformers in global power grid construction, industrial power distribution and power equipment maintenance projects.

2. Core Performance Features, Unique Advantages and Application Range

DIN standard bushing stands out in the power industry due to its premium material configuration and optimized structural performance. The insulator body is made of high-purity electrical porcelain raw materials, formed by high-pressure molding and high-temperature firing, featuring compact internal texture, high mechanical strength and excellent structural stability. The smooth glazed surface greatly reduces surface adhesion of dust, oil stains and moisture, effectively lowering the risk of creepage discharge and pollution flashover in complex environments. The internal conductive rod adopts high-precision brass material with excellent electrical conductivity, low resistance and low temperature rise characteristics, ensuring stable current transmission even under long-term continuous full-load operation. Every DIN transformer bushing is designed with scientifically calculated creepage distance and dry arcing distance, which significantly enhances insulation reliability under high humidity, heavy fog, industrial dust and outdoor ultraviolet aging conditions. In addition, the product features ultra-low dielectric loss and strong partial discharge resistance, effectively delaying insulation aging and extending the overall service cycle of matching transformer equipment.

In practical engineering applications, DIN bushing delivers prominent comprehensive advantages in safety, economy and maintainability. First, the integrated one-piece structure eliminates assembly gaps and achieves excellent overall sealing performance. It can effectively isolate external humid air, industrial pollutants and internal transformer oil, preventing common transformer faults such as damp insulation, oil leakage and internal electric breakdown. Second, fully standardized size design realizes universal compatibility and rapid replacement. All mounting holes, flange dimensions and thread specifications of DIN standard bushing comply with unified industrial standards, enabling maintenance personnel to complete disassembly and installation without secondary modification or on-site adaptation. This greatly shortens equipment downtime and reduces daily operation and maintenance costs for power stations and industrial enterprises. Third, DIN porcelain bushing has strong mechanical vibration resistance and impact resistance, which can adapt to slight vibration during transformer long-term operation and transportation without structural cracking or performance attenuation.

DIN standard transformer bushing has extremely wide and universal application scenarios in the global power field. It is the exclusive standard supporting insulator for European standard oil-immersed distribution transformers, widely used in urban and rural power grid distribution stations, industrial factory power supply systems, commercial building power distribution equipment, mining power transformation devices and new energy power station supporting step-down transformers. The product can adapt to dual working environments including indoor closed distribution rooms and outdoor open-air transformer platforms. Whether in high-temperature summer environments, low-temperature winter conditions or long-term rainy and humid climates, DIN bushing can maintain stable insulation performance and structural integrity. With the continuous globalization of European standard transformer equipment, DIN transformer bushing has become a universal standard accessory for standardized transformer manufacturing, equipment renewal and power engineering supporting projects worldwide.

3. DIN Transformer Bushing Full Standard Specification Table

The following table summarizes the complete structural dimensions, installation parameters and weight data of mainstream DIN bushing series. All parameters strictly comply with German DIN industrial standards, covering all conventional current and voltage grades for low and medium voltage transformers. Standard models support universal matching, while customized dimension adjustment and structural optimization are available for special engineering requirements.

Code	Model	H	h2	h3	h4	a3xa4	a1xa2	d4	t	Md	d1	d2	d3	S	S1	tank opening d0	dry arcing distance h1	creep distance	umbrella shield	weight kg
XD 1000 1 DIN	DIN 1 1000	324	58	17	4 8	60x60	26x26	14	10	M30 2	90	110	90	70	50	56	57	75	1 single umbrella	5.5
XD 2000 1 DIN	DIN 1 2000	405	63	22	6 10	100x100	50x40	14	15	M42 3	104	125	105	125	60	70	58	70	1 single umbrella	12
XD 3150 1 DIN	DIN 1 3150	434	68	27	6 10	120x120	60x40	14	15	M48 3	125	150	125	110	60	90	57	75	1 single umbrella	16.5
XD 1000 3 DIN	DIN 3 1000	372	78	17	4 8	60x60	26x26	14	10	M30 2	110	110	95	70	50	56	87	120	1 single umbrella	6.5
XD 2000 3 DIN	DIN 3 2000	480	83	22	6 10	100x100	50x40	14	15	M42 3	125	125	105	100	60	70	89	120	1 single umbrella	13.5
XD 3150 3 DIN	DIN 3 3150	495	88	27	6 10	120x120	60x40	14	15	M48 3	145	150	125	110	60	90	88	120	1 single umbrella	18.7
XD 4500 3 DIN	DIN 3 4500	560	101	30	6 12	150x150	70x70	14	20	M56 3	175	160	160	100	119	95	125	120	1 single umbrella	33.5

Note: All listed DIN bushing parameters are standard industry specifications. Customized dimensions, thread types and structural designs are available to meet special transformer assembly and industrial project requirements.

4. FAQ for DIN Standard Transformer Bushing

Q1: Why is standard DIN bushing essential for transformer safety?

DIN transformer bushing is crucial to transformer operational safety due to its standardized insulation design and stable electrical performance. Every DIN bushing is manufactured and tested according to strict German industrial standards, ensuring accurate insulation clearance, qualified creepage distance and reliable mechanical strength. Standardized structural design eliminates hidden dangers such as insufficient insulation, size mismatch and poor sealing commonly found in non-standard bushings. During long-term power operation, DIN porcelain bushing can effectively block leakage current, prevent flashover accidents and avoid transformer short-circuit faults, providing stable and safe insulation protection for the entire power distribution system.

Q2: Does DIN bushing suffer from aging problems in outdoor use?

All weather-resistant DIN standard bushings are optimized for long-term outdoor operation. The high-temperature glazed porcelain surface features excellent anti-ultraviolet, anti-oxidation and anti-aging properties, which will not fade, crack or deteriorate after years of sun exposure and rain erosion. The internal brass conductor adopts anti-oxidation treatment to avoid oxidation and poor contact. Scientific structural design also prevents water accumulation and dust deposition. Under regular maintenance, outdoor-used DIN bushing can maintain stable performance for more than 10 years without obvious aging failure.

Q3: What are the advantages of DIN bushing replacement over non-standard models?

Replacing old bushings with standard DIN bushing brings multiple practical benefits. First, full standardization ensures 100% fitting without on-site cutting, drilling or modification, greatly improving replacement efficiency. Second, DIN bushing has stricter electrical performance standards, lower dielectric loss and stronger pollution resistance, effectively improving transformer operation stability. Third, standardized accessories are universally available, reducing procurement difficulty and replacement cost. For power maintenance teams, unified DIN standard accessories also simplify inventory management and realize standardized equipment operation and maintenance.

Q4: How to maintain DIN bushing to extend service life?

Daily maintenance of DIN transformer bushing is simple and effective. Operators need to regularly clean surface dust, oil dirt and sediment to prevent pollutant accumulation from forming conductive channels. It is necessary to routinely check the porcelain body for cracks, damage and glaze peeling, as well as verify the tightness of connecting threads and sealing gaskets. Regular insulation resistance testing can timely detect potential insulation performance degradation. In addition, avoid long-term overloaded operation and external mechanical impact. Scientific and standardized daily maintenance can greatly delay insulation aging and maximize the service life of DIN standard bushing.
