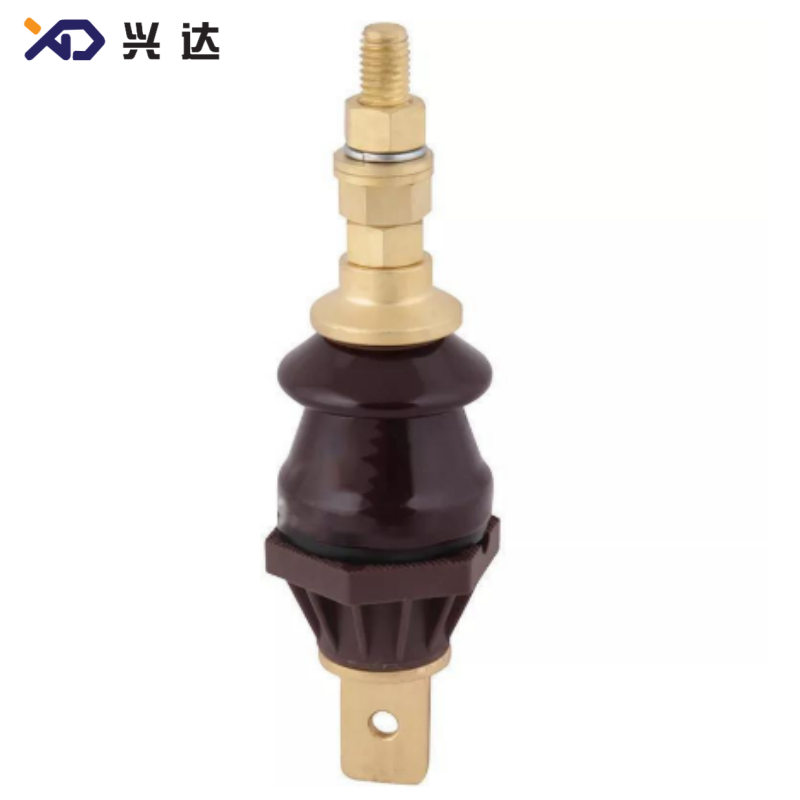

EN transformer bushings are standardized insulating and current-carrying components designed exclusively for European standard oil-immersed transformers and distribution power equipment. To maintain stable dielectric performance, reliable mechanical structure, and long operational lifespan, EN transformer bushings must operate within defined working conditions and strict ambient limits. Exceeding the allowable temperature, altitude, humidity, pollution, or mechanical load ranges will lead to accelerated insulation aging, partial discharge, surface flashover, oil leakage, and permanent structural damage. Understanding the official working conditions and ambient limits of EN transformer bushings is critical for correct product selection, safe field operation, and long-term transformer asset management in European power distribution networks.
All performance parameters and environmental tolerance limits of EN transformer bushings are standardized to ensure unified adaptability across different manufacturers and application scenarios. Unlike non-customized bushings with flexible tolerance ranges, EN-standard bushings have clear boundary values for climate conditions, electrical load conditions, installation environments, and mechanical operating limits. Adhering to these limits ensures consistent insulation strength, sealing stability, and current-carrying capability throughout the bushing’s service cycle.
Standard Ambient Temperature Working Limits
Ambient temperature is one of the most fundamental environmental factors affecting the operational performance of EN transformer bushings. Standard EN transformer bushings are engineered to adapt to the typical temperate and continental climate characteristics of European regions, with a certified operating temperature range from-40°C to +55°C. This wide temperature tolerance allows standard EN transformer bushings to operate stably in cold northern European winters and high-temperature summer environments in central and southern European industrial areas.
At low temperatures down to -40°C, both porcelain and epoxy resin EN transformer bushings maintain stable mechanical toughness and insulation performance without brittle cracking or structural shrinkage. Sealing gaskets and internal insulation materials retain their elasticity and tightness, preventing oil leakage caused by low-temperature material hardening. Under maximum ambient temperature of +55°C, the bushing can continuously bear rated current without excessive temperature rise, thermal deformation, or insulation material softening.
It is important to note that continuous operation above 55°C will accelerate the aging of organic insulating materials and sealing components, increasing the risk of partial discharge and terminal overheating. For special high-temperature industrial sites or desert-region power projects, high-temperature resistant upgraded EN transformer bushings are required to meet extended temperature working conditions.
Altitude Adaptation Limits
Altitude directly affects air insulation strength, which determines the external flashover resistance of EN transformer bushings. Standard EN transformer bushings are verified and certified for operation at altitudes up to 1000 meters above sea level. At normal atmospheric pressure within this altitude range, the standardized creepage distance and external insulation structure can effectively resist surface leakage current and flashover faults under rated voltage operation.
For installation environments exceeding 1000 meters, thin air reduces air dielectric strength, which lowers the external insulation capacity of conventional EN transformer bushings. If standard bushings are used at high altitudes, the risk of high-voltage surface flashover and corona discharge will increase significantly. For this reason, power engineering specifications require extended creepage EN transformer bushings for altitudes above 1000 m, with customized shed structures and longer creepage distances to compensate for reduced air insulation performance.
Humidity and Atmospheric Moisture Working Conditions
EN transformer bushings are designed for continuous operation under natural atmospheric humidity conditions, with a maximum relative humidity tolerance of up to 100% under non-condensing states. The standardized glaze treatment on porcelain bushings and hydrophobic resin formula on epoxy bushings provide excellent moisture resistance, preventing water film accumulation and continuous leakage current on the insulation surface.
Long-term condensing humidity environments are classified as overload operating conditions for standard EN transformer bushings. Persistent condensation will form a continuous conductive water layer on the bushing surface, greatly reducing effective creepage distance and triggering intermittent flashover. In coastal areas, riverine humid zones, and high-fog industrial zones, regular surface cleaning and anti-condensation protection measures are necessary to keep the bushing within qualified working conditions.
Pollution Environment Tolerance Limits
EN transformer bushings have clear classification limits for atmospheric pollution environments, which are divided into standard pollution grade and heavy pollution adaptation grade according to European power environmental standards. Standard EN transformer bushings adapt to urban residential areas, common industrial parks, and general rural environments with light dust pollution. Their standard creepage distance and anti-fouling surface treatment can resist daily floating dust and slight industrial particulate deposition.
However, standard models cannot adapt to severe pollution working conditions, including coastal salt fog zones, chemical industrial zones, cement and mining dust zones, and corrosive gas emission areas. Salt crystallization, acidic dust, and conductive particulate accumulation will rapidly destroy the surface insulation performance, leading to tracking discharge and insulation aging. For these harsh working environments, enhanced anti-pollution EN transformer bushings with extended creepage design must be deployed to meet long-term operational requirements.
Electrical Working Conditions and Load Limits
In addition to ambient environmental limits, EN transformer bushings must operate within standardized electrical working conditions to avoid performance failure. All EN-standard bushings are rated for 50 Hz European grid frequency, adapting to conventional AC power distribution systems. Continuous operation beyond rated voltage and current is prohibited.
The bushing’s current-carrying working condition requires that long-term operating current shall not exceed the rated current value to avoid excessive temperature rise of the central conductor and terminal connection parts. Short-term overload current is allowable within transformer standard overload duration, but frequent and prolonged overload operation will cause thermal fatigue damage to the bushing internal structure and accelerate sealing aging.
In terms of voltage working limits, EN transformer bushings must match the system rated voltage and basic insulation level. Continuous overvoltage operation will intensify internal electric field concentration, induce persistent partial discharge, and gradually erode internal insulation materials, ultimately leading to insulation breakdown failure.
Mechanical Working Limits
EN transformer bushings also have strict mechanical ambient limits during installation and operation. The bushing is designed to bear standardized vertical installation pressure and allowable minor vibration generated by transformer operation. Long-term strong mechanical vibration, external impact force, and excessive cable tension are beyond standard mechanical working conditions.
Excessive lateral tension from overhead cables will cause mechanical stress deformation of the bushing conductor and insulation shell, resulting in internal structural dislocation and sealing gap failure. Therefore, external cable load must be supported by independent fixtures to ensure the bushing operates within safe mechanical limit ranges.
Conclusion
Working conditions and ambient limits are core technical boundaries that guarantee the safe and stable operation of EN transformer bushings. Standard EN transformer bushings are suitable for altitudes below 1000 meters, ambient temperatures ranging from -40°C to +55°C, and conventional light-pollution atmospheric environments, with strictly defined electrical load and mechanical stress limits. Strictly abiding by these ambient and operational limits, and selecting upgraded bushings for harsh environments, can effectively avoid premature failure and maximize the service life of EN transformer bushings in European power distribution and industrial transformer systems.
