EN BUSHING Industry-Leading Wholesale Manufacturers, Suppliers and Factory Recommendations

An EN bushing, or EN‑standard low‑voltage transformer porcelain bushing insulator, functions as the core insulated penetration component fitted to oil‑immersed dry‑type low‑voltage transformer tank covers. Every EN‑series transformer bushing strictly follows European EN electrical‑component manufacturing codes that regulate insulator material quality, mechanical strength, creepage distance and threaded‑fitting dimensions. Its primary job is to separate energized brass conductive rods from the grounded metal transformer shell, preventing electric leakage, surface flash‑over and dangerous short‑circuit faults inside power transformers. International power‑equipment industry workers constantly look‑up search keywords such as EN bushing, low‑voltage porcelain transformer insulator, brass flag bushing and EN‑compliant transformer spare parts for equipment upgrading and maintenance projects. The broad EN‑bushing specification system covers rated‑current grades from 250A up to 3150A, satisfying the installation requirements of nearly all mainstream low‑voltage transformer equipment across the global power sector.

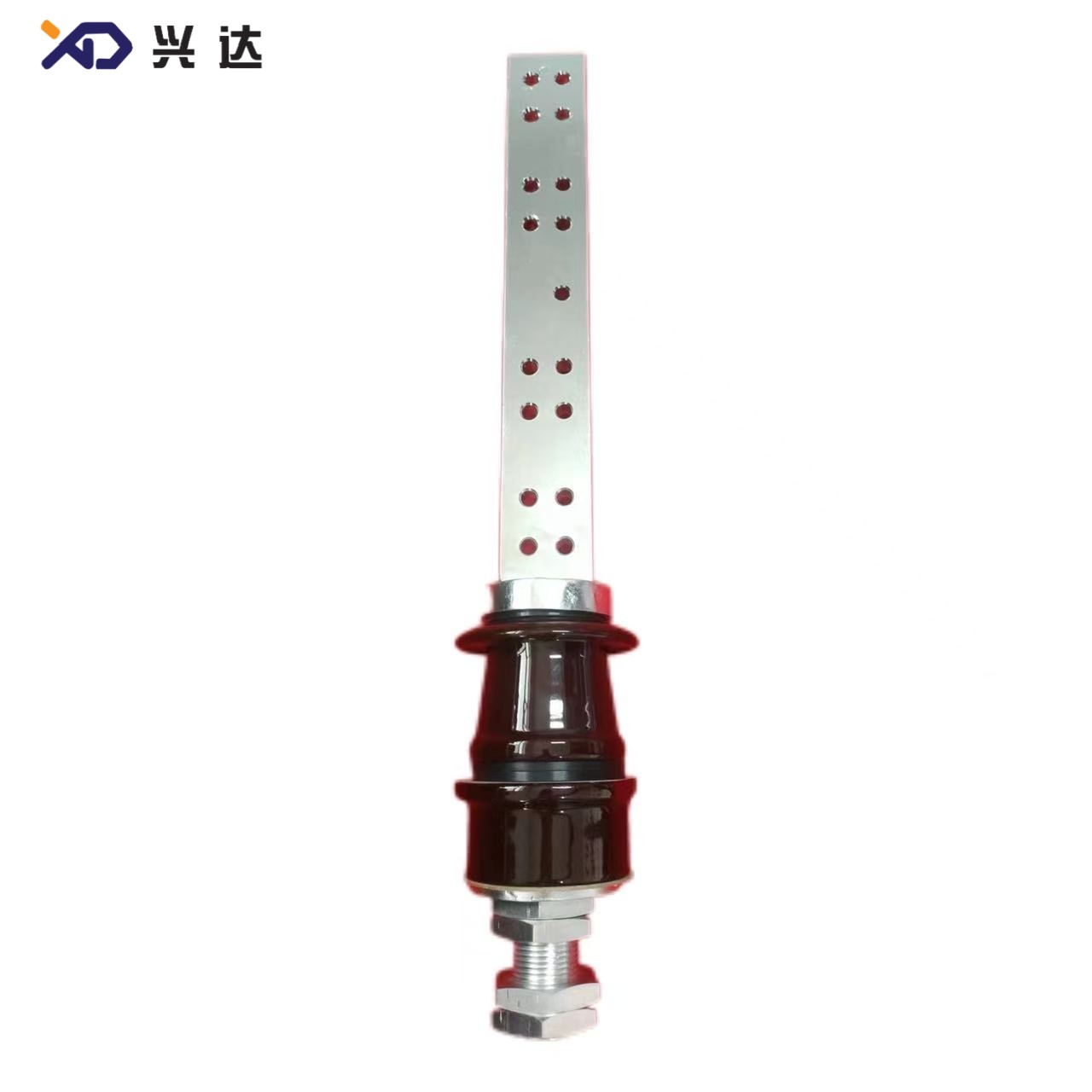

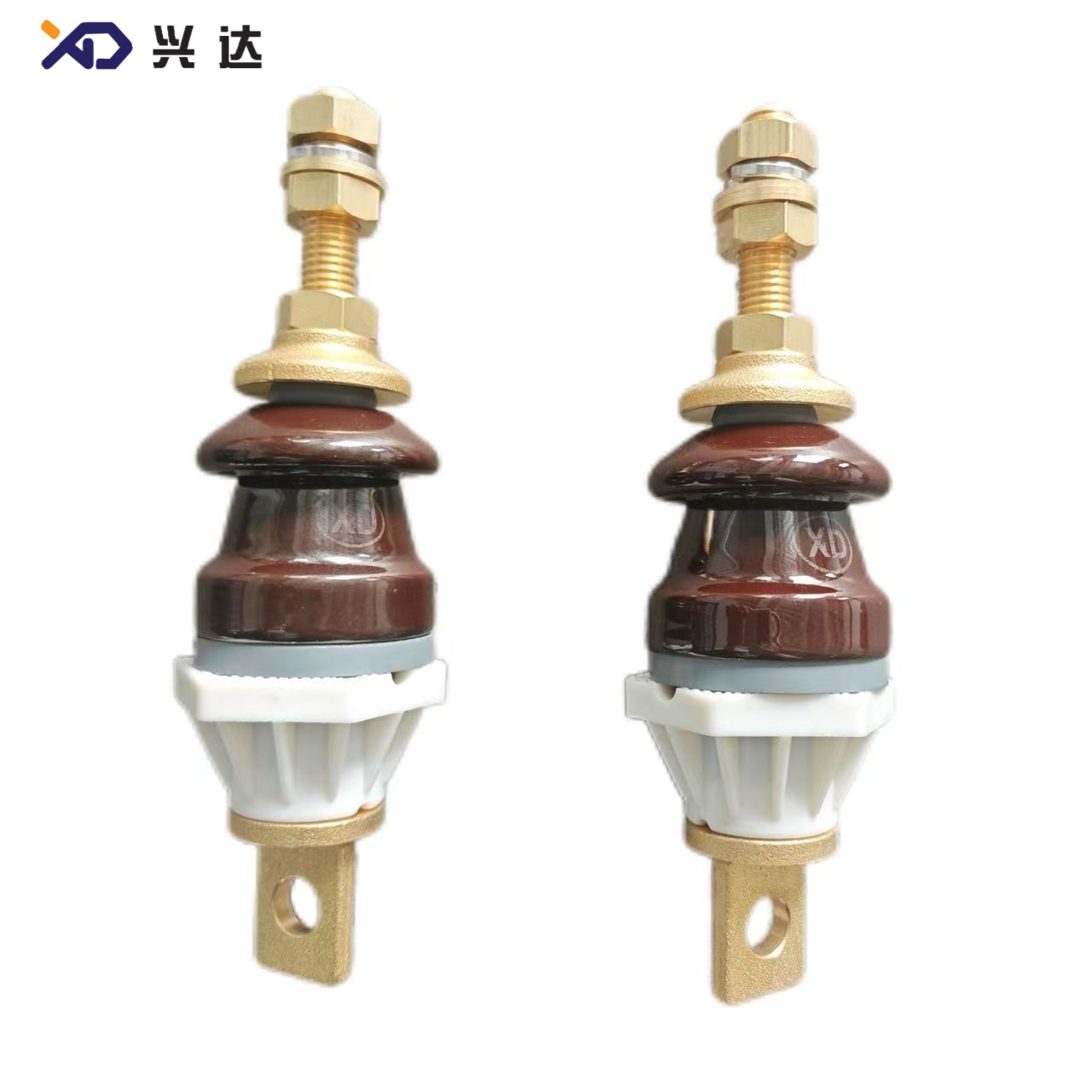

To give a clear‑cut definition, the EN low‑voltage transformer porcelain bushing is an integrated insulating hardware assembly consisting of glazed ceramic insulator, brass flag‑shaped conductive terminal, metal fasteners and oil‑proof sealing gaskets, completing all EN‑specified dielectric, impact‑resistance and heavy‑current load testing. Multiple excellent built‑in features improve the comprehensive usability of these transformer insulators. High‑temperature‑fired glazed porcelain forms a tough insulator shell that resists scratches, physical impact and long‑term material ageing. The slippery glazed outer layer stops dust, rainwater and corrosive industrial particles from sticking onto the insulator exterior. Precision‑machined brass flag connectors maintain low‑resistance electric transmission even under continuous maximum‑current loads. A wide selection of adjustable structural parameters, including overall height, mounting thread standard and tank‑opening size, delivers flexible compatibility with diverse transformer tank‑cover layouts.

A set of practical operational advantages establishes EN‑standard bushings as a mainstream international transformer accessory. EN industrial‑standard compliance accelerates hardware exports toward European power‑equipment markets. Ample creepage‑distance design greatly reduces surface flash‑over risk in damp, fog‑prone and heavily‑polluted industrial work zones. Anti‑vibration porcelain material adapts to constant vibration produced by running transformers. Low‑heat‑loss brass terminals cut down energy waste during power transmission. Simple bolt‑on assembly drastically cuts installation, replacement and transformer‑maintenance labour expenses.

The application range of EN LV porcelain bushings covers many power‑supply‑related sectors. Municipal‑grid distribution transformers, factory heavy‑load power transformers, wind‑power and solar‑energy supporting transformers, temporary construction‑site transformers and compact box‑type substations all deploy EN‑series bushings. These insulating components work reliably for indoor power‑distribution rooms, roadside outdoor transformer stations, tunnel underground power facilities and corrosive‑environment chemical‑plant power‑supply equipment.

Q1 How many working‑years can I expect from a standard EN porcelain transformer bushingA1 High‑grade EN‑compliant bushings are built from premium vitrified porcelain and anti‑oxidation brass. With scheduled routine maintenance, these insulators usually operate safely for 15‑25 years, with great resistance to vibration, harsh weather and industrial pollution damage.

Q2 What maintenance actions should power‑station crews perform for EN‑series LV bushingsA2 Carry out regular surface cleaning to remove accumulated dust, damp stains and industrial contaminants. Inspect brass flag terminals for rust, check mounting nuts for loose status, and replace bushings with glaze cracks, chips or heavy‑duty oxidation damage promptly.

Q3 Can I fit one single EN bushing model onto multiple different transformer typesA3 Every EN bushing variant carries unique dimension parameters for mounting thread, tank‑cover opening and overall installation height. Users need to match specifications against transformer installation drawings before ordering suitable bushing models.

Q4 What risks come along with worn‑out or damaged transformer porcelain bushingsA4 Cracked or contaminated porcelain bushings shorten safe creepage distance and trigger surface flash‑over and electric leakage. Oxidized brass terminals create extra contact resistance and excessive heat, possibly burning out wiring and triggering sudden transformer power‑supply shutdown.

Q5 Are EN‑type porcelain bushings suitable for oil‑immersed transformer equipmentA5 Yes, most EN low‑voltage porcelain bushings are engineered for oil‑immersed transformer tanks. Built‑in sealing gaskets stop transformer‑oil leakage at the tank‑cover penetration opening while porcelain material provides solid insulation protection.
