EN Bushing Industry Handbook Definition Specifications Benefits Faq And Application Information

EN bushing is the general‑used industry term for EN‑standard low‑voltage transformer porcelain bushing insulator, the essential insulated through‑pass accessory mounted to low‑voltage transformer metal tank covers. Each EN‑marked transformer bushing follows unified European EN electrical‑hardware manufacturing specifications that govern insulator material, mechanical‑strength benchmarks, creepage‑distance values and threaded‑connector dimensions. Its core function is to create insulated channels for energized brass conductive terminals, isolating live internal wiring from the grounded metal transformer shell and avoiding electric leakage, surface flash‑over and destructive short‑circuit accidents. Workers from the international power‑equipment sector frequently search high‑volume keywords such as EN bushing, low‑voltage transformer porcelain insulator, brass flag‑type bushing and EN‑certified transformer spare parts for equipment procurement, maintenance and hardware‑upgrade projects. The complete EN‑series bushing specification lineup supplies broad rated‑current choices ranging from 250A, 630A to heavy‑duty 3150A, covering nearly all mainstream low‑voltage transformer installation demands within the worldwide power‑supply industry.

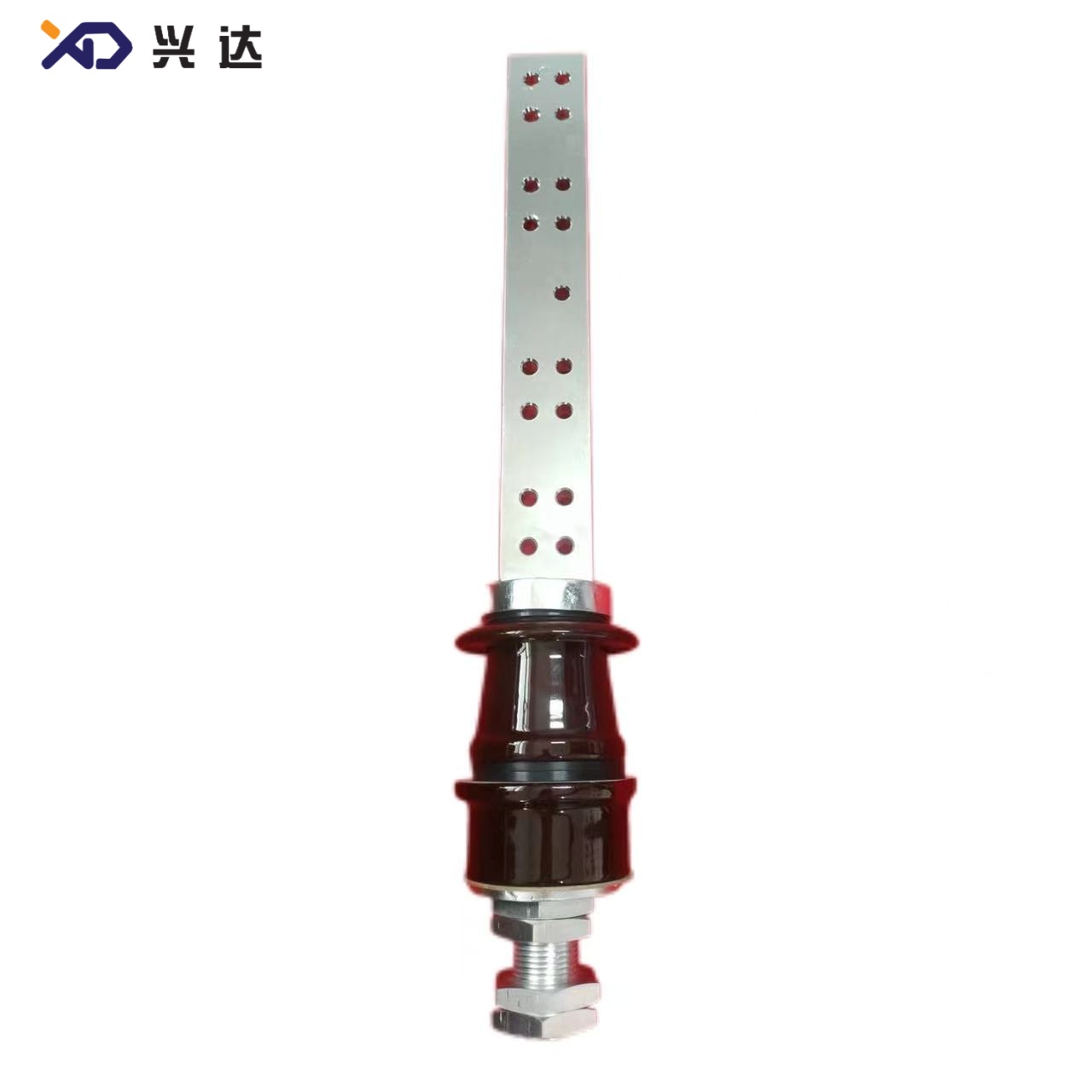

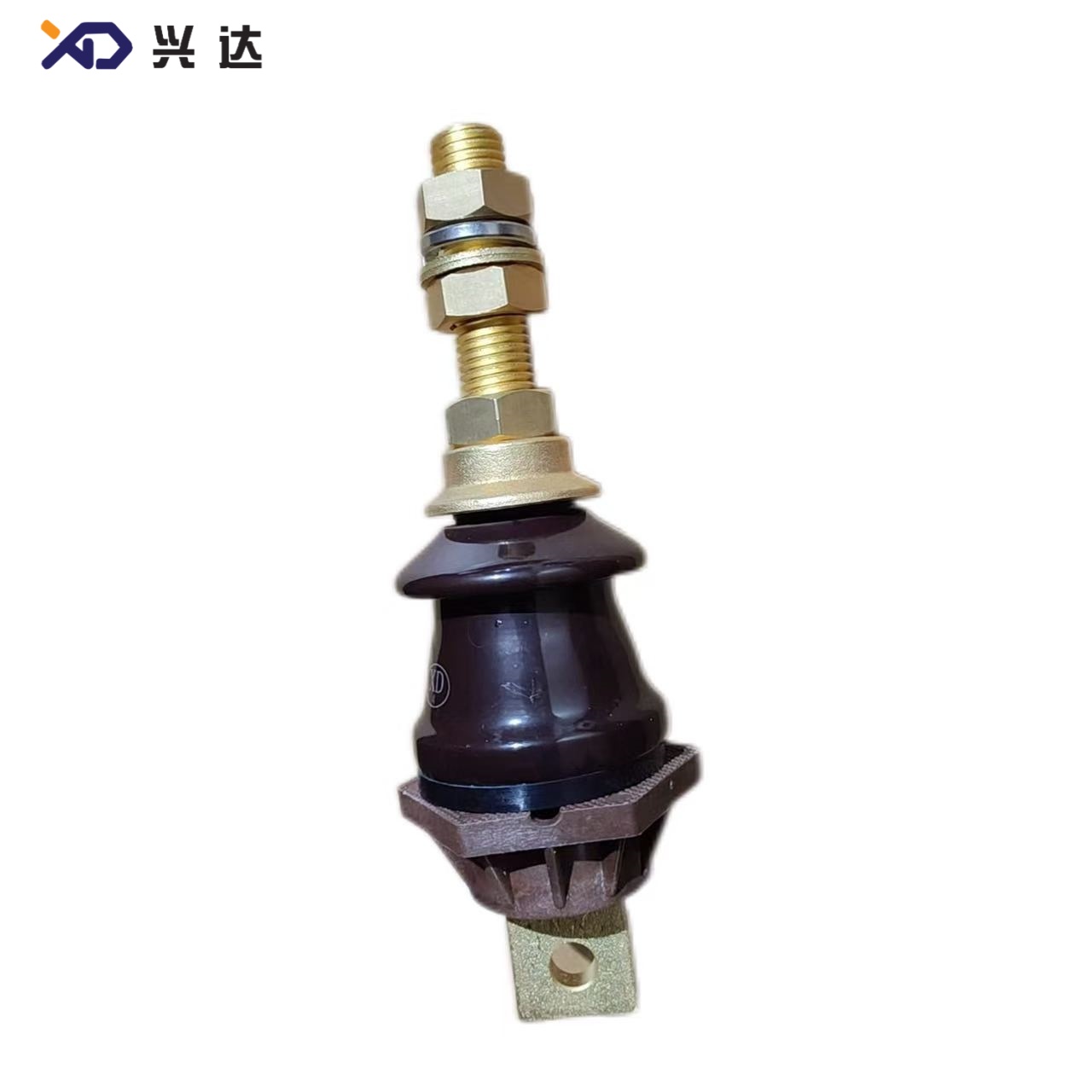

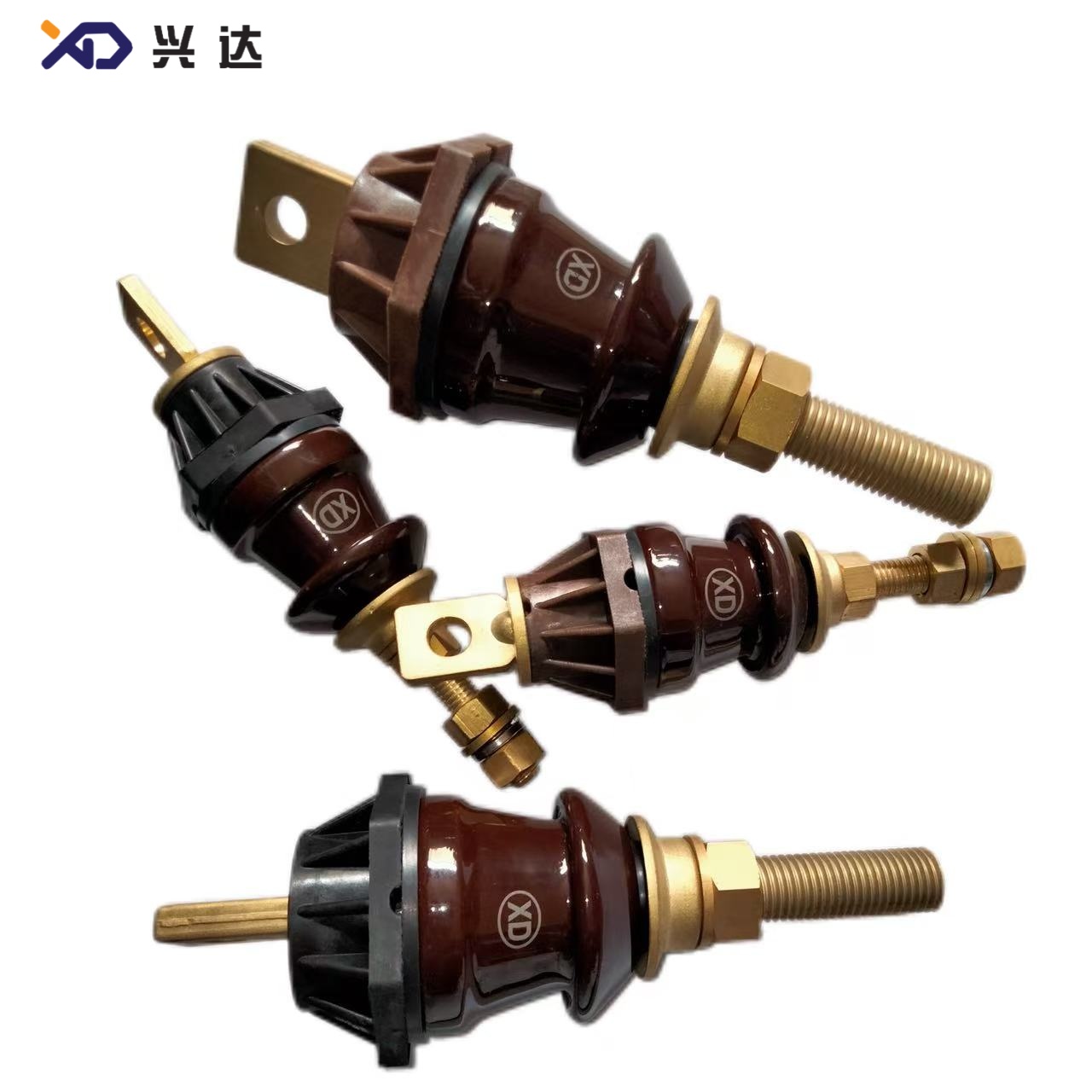

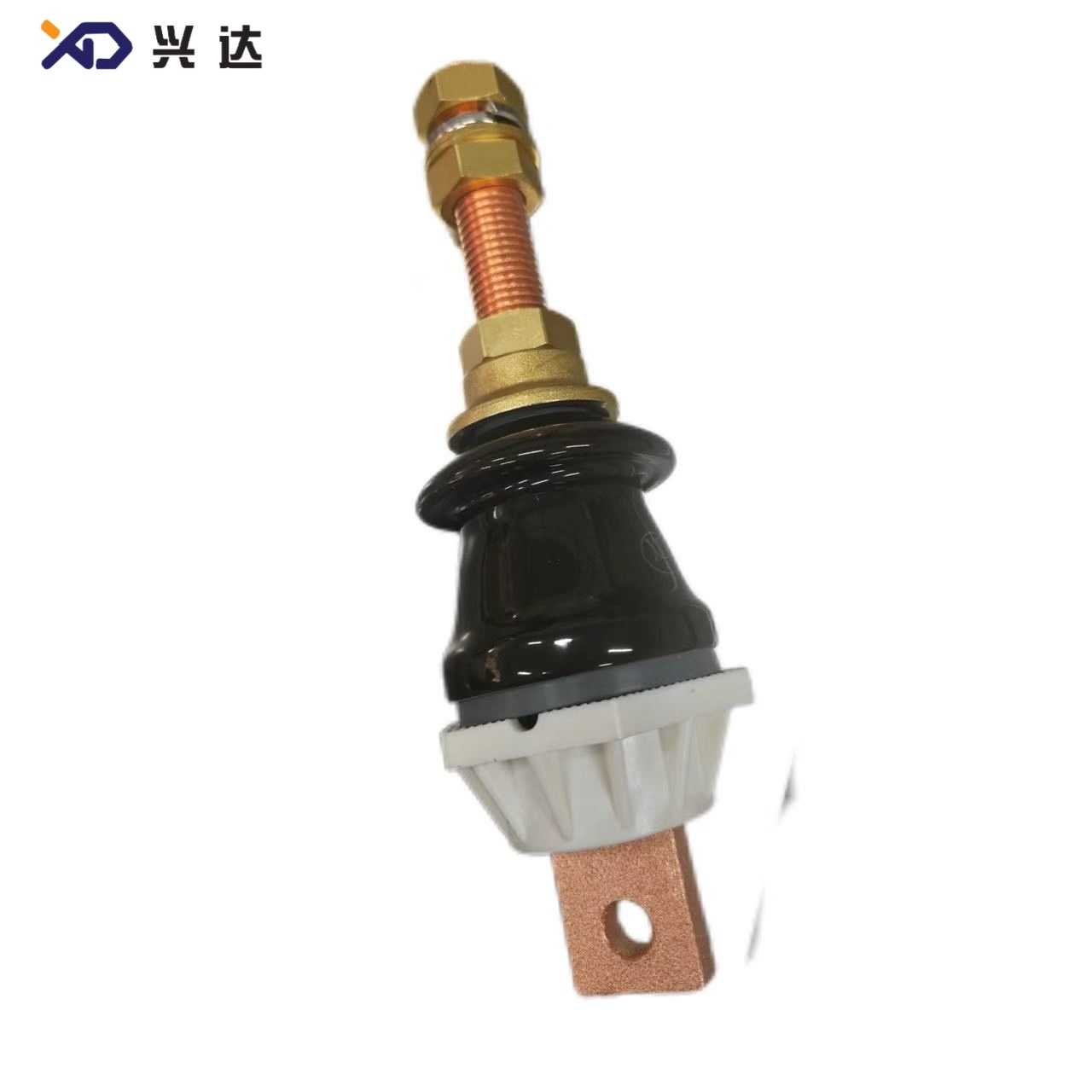

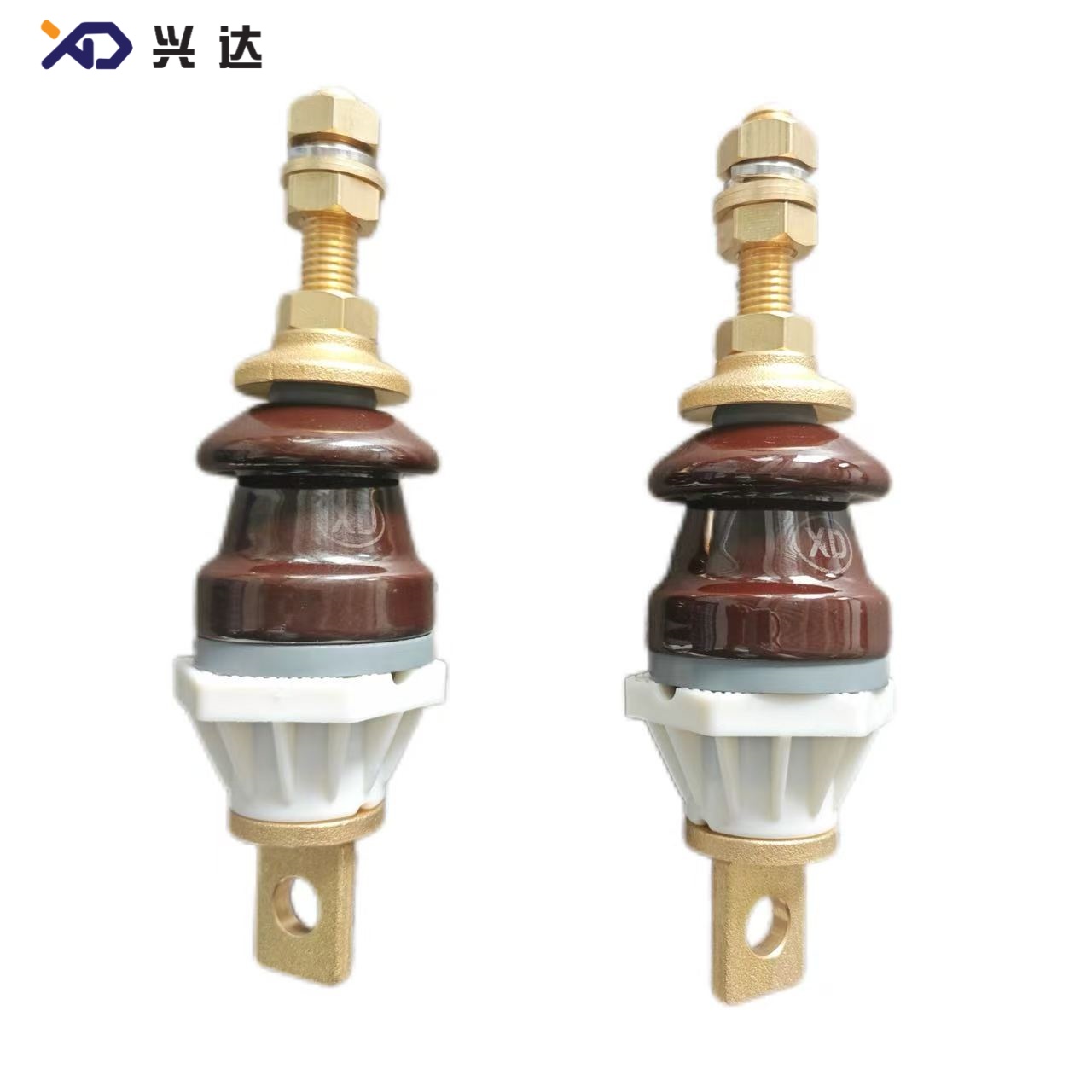

The formal industry definition for an EN low‑voltage transformer porcelain bushing describes it as an assembled insulating hardware unit made from high‑density glazed ceramic insulator, brass flag‑shaped conductive fitting, metal fasten pieces and oil‑resistant sealing washers, passing all EN‑regulated dielectric‑strength, impact‑resistance and high‑current endurance testing. A collection of standout structural features enhances the comprehensive operational performance of these transformer insulators. High‑temperature‑fired vitrified porcelain forms a tough, scratch‑resistant insulator main body. The slippery glazed outer surface resists dust, rainwater and corrosive airborne particles. Precision‑cast brass flag terminals deliver stable low‑resistance electric‑current transmission under maximum‑load working conditions. Multiple adjustable dimension parameters, including overall height, mounting thread size and tank‑cover opening diameter, deliver flexible installation compatibility for varied transformer tank layouts.

Multiple competitive operational advantages make EN‑standard bushings the top‑choice transformer insulator for international power‑equipment manufacturers. EN industrial‑standard certification simplifies component exports for businesses selling transformer hardware into European‑region markets. Optimized creepage‑distance specifications drastically lower surface flash‑over failure risk in damp, fog‑prone and heavily‑polluted industrial work zones. Vibration‑proof porcelain material copes with constant mechanical vibration created by running transformers. Low‑loss brass conductive parts minimize heat‑energy waste during power transmission. Simple bolt‑on assembly greatly speeds‑up insulator installation, replacement and transformer routine‑maintenance workflows.

EN LV porcelain bushings are deployed across many power‑supply‑related application fields. Urban‑grid distribution transformers, heavy‑duty industrial factory power transformers, renewable‑energy station matching transformers, mobile emergency‑use transformers and compact box‑type substations all adopt EN‑series bushing hardware. These insulating components adapt well for indoor power‑distribution cabinets, roadside outdoor transformer stations, underground tunnel power‑supply facilities and anti‑corrosion chemical‑plant power‑distribution equipment.

Q1 Are EN‑series porcelain transformer bushings resistant to long‑time heavy‑duty operationA1 Premium EN‑compliant bushings are manufactured with high‑quality vitrified porcelain and anti‑oxidation brass materials. Under proper routine maintenance, the regular service life reaches 15‑25 years, with strong tolerance against mechanical vibration, bad outdoor weather and industrial environmental pollution.

Q2 Which maintenance steps are needed to keep EN‑type LV porcelain bushings in good shapeA2 Schedule periodic visual inspections, surface cleaning and fastener‑tightening tasks. Wipe dust, damp residue and industrial pollutants from the glazed insulator exterior. Examine brass flag terminals for rust, tighten loose mounting nuts, and replace damaged, cracked or heavily‑oxidized bushings at once.

Q3 How do I pick out the matching EN bushing model for my low‑voltage transformerA3 Match the bushing specification according to transformer rated‑current value, tank‑cover opening diameter, mounting thread parameter and required overall installation height. Reference the complete dimension table to select the suitable EN‑series bushing variant.

Q4 What factors cause surface flash‑over failures on transformer porcelain bushingsA4 Flash‑over breakdowns are mainly triggered by heavy dust contamination, wet‑surface pollution and insufficient creepage distance. EN‑standard bushings are engineered with adequate creepage‑distance values and anti‑pollution glazed surfaces to greatly reduce such‑like equipment‑failure risks.

Q5 Do EN low‑voltage porcelain bushings support sub‑zero cold‑climate outdoor installationA5 Standard EN‑type porcelain insulators safely operate within the temperature range of minus 40℃ to plus 120℃. The cold‑resistant porcelain material will not crack under freezing‑weather conditions, fitting outdoor transformer installations in frigid northern‑hemisphere districts.
