BD Series Transformer Butterfly Valve (Φ25~Φ230, 9 Sizes · for Transformer Oil Circuits · Q235 Body)

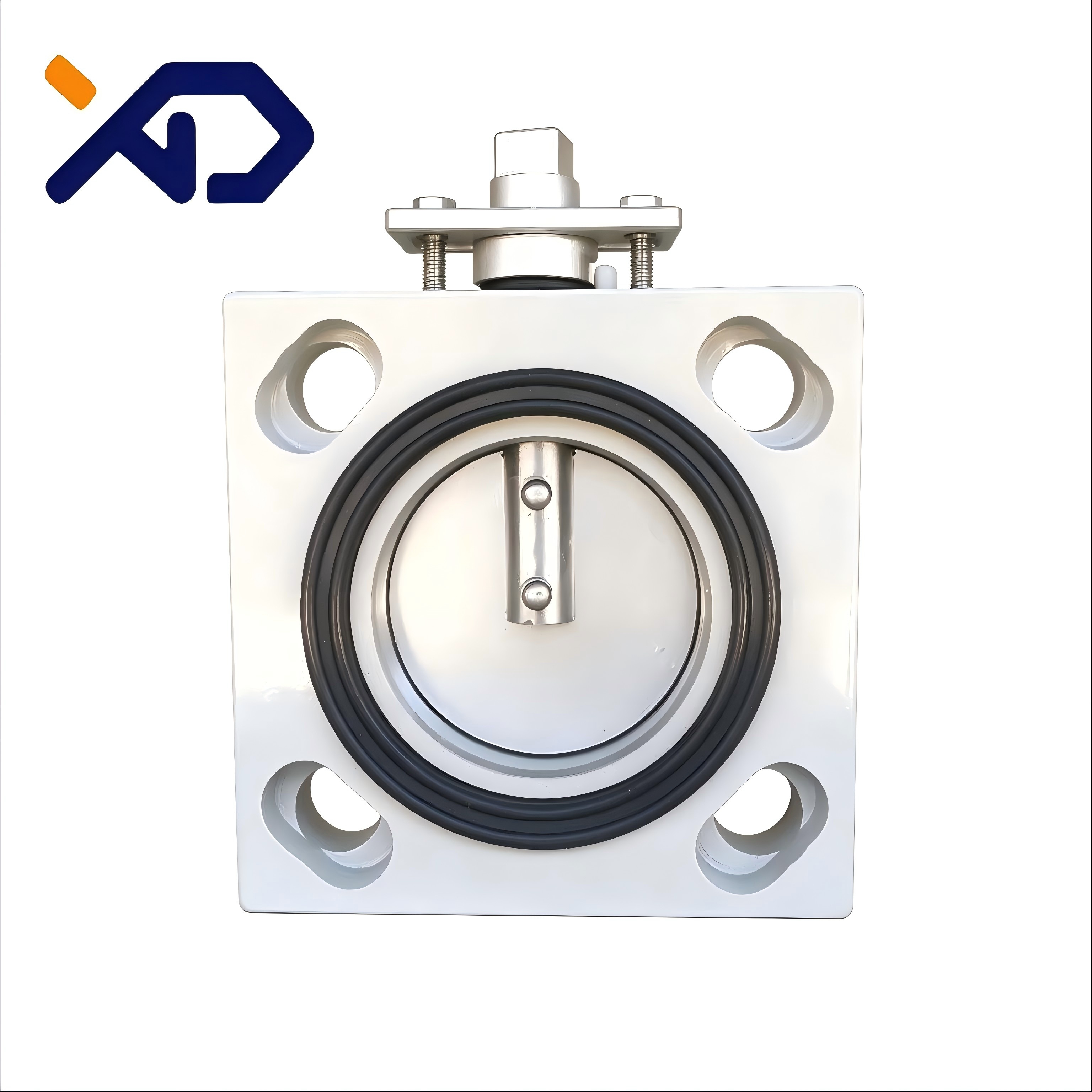

BD Series Transformer Butterfly Valve · Purpose-Built for Transformer Oil Circuits
Product Overview
BD series butterfly valves are manufactured by Tianjin Xingda Electric Technology Co., Ltd. specifically for opening and closing the oil circuits of transformers — a standard isolation valve for transformer assembly and maintenance. Operating conditions are identical to those of the transformer itself. Mounted between tank flanges, the valve is operated with a wrench on the top handle; an engraved arrow gives a clear indication of the OPEN/CLOSE position. The valve body offers excellent overall rigidity and long service life, with precision-machined sealing surfaces that hold oil pressure without leakage over years of service.
Key Features
- Purpose-built: designed exclusively for transformer oil circuits; operating conditions match the transformer;
- Nine diameters: Φ25 to Φ230mm covers distribution transformers up to large power transformers;
- Pressure-tight: the contact area between body and shaft withstands 0.5MPa oil pressure without leakage;
- Reliable sealing: inclined-edge linear seal between body and disc, precision machined; closed leakage controlled by diameter class;
- Solid materials: Q235 steel body; shaft and handle made of cold-drawn 20# round steel for rigidity and long life;
- Oil-resistant sealing: all rotating and sealing parts use premium oil-resistant rubber, stable under long-term immersion in transformer oil;
- Clear operation: arrow engraved on the handle — 90° to the body for OPEN, parallel for CLOSE; a wrench is all that is needed.
Main Technical Data
| Item | Spec | Item | Spec |
|---|---|---|---|
| Series | BD series | Application | On/off for transformer oil circuits |
| Diameter (mm) | Φ25 / 40 / 50 / 80 / 100 / 125 / 150 / 200 / 230 | Working conditions | Same as transformer |
| Body-shaft pressure test | 0.5MPa oil, no leakage | Body material | Q235 steel |
| Shaft / handle | Cold-drawn 20# round steel | Sealing | Inclined-edge linear seal (body-disc) |
| Seals | Premium oil-resistant rubber | Operation | Wrench-operated handle (90° open/close) |
Closed Leakage Limits (at 0.1MPa oil pressure)
| Diameter (mm) | Φ25 | Φ40 | Φ50 | Φ80 | Φ100 | Φ125 | Φ150 | Φ200 | Φ230 |
|---|---|---|---|---|---|---|---|---|---|
| Leakage (ml) | 1.3 | 2.0 | 2.5 | 4.0 | 5.0 | 6.3 | 7.5 | 10 | 11 |
Installation & Operation
| Step | Description |
|---|---|
| Mounting position | Keep the valve closed during installation to protect the sealing surfaces |
| Installation | Check for cleanliness, remove nuts and washers on both sides, fit the sealing ring, then bolt the valve to the tank flange |
| Opening | Turn the handle with a wrench until the arrow is 90° to the body, pointing to OPEN |
| Closing | Turn the handle until the arrow is parallel to the body, pointing to CLOSE; stop once seated — do not over-tighten |
| Transport & storage | Keep packaging intact; protect from rain, moisture and impact to avoid corrosion and damage to sealing faces |
Why Choose XD?
Tianjin Xingda Electric Technology Co., Ltd. has manufactured transformer components for years. Butterfly valves and transformer bushings come from the same factory, so interfaces match and quality responsibility is unified. All nine diameters are available, with custom flange dimensions on request. Bilingual manuals and full export documentation are provided. Inquiries welcome.
