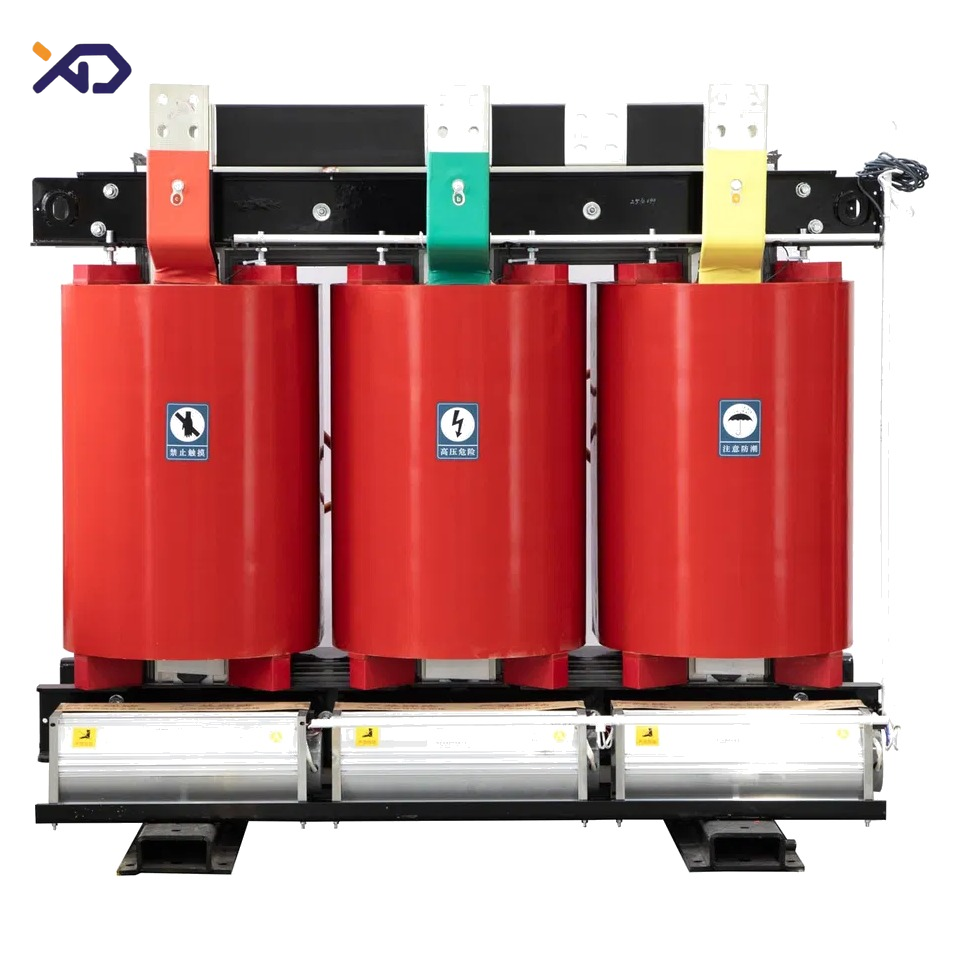

10kV Class SCB Series Three-Phase Cast-Resin Dry-Type Distribution Transformer 30~2500kVA (Customizable)

10kV Class SCB Series Three-Phase Cast-Resin Dry-Type Distribution Transformer

The Xingda (XD) SCB series three-phase resin-insulated dry-type distribution transformer is designed and manufactured in accordance with IEC 60076-11, GB 1094.11 and GB 20052 energy-efficiency standards. Using vacuum epoxy-resin casting technology with a premium silicon-steel core, it offers flame retardancy, fire safety, moisture resistance, low noise, low partial discharge, maintenance-free operation and strong short-circuit withstand capability. With rated capacities from 30 to 2500kVA (customizable), it is widely used in high-rise buildings, commercial centers, airports, metros, tunnels, hospitals, industrial substations and renewable energy stations.

Product Overview

Both HV and LV windings are vacuum-cast in epoxy resin and cured into a rigid, void-free insulation body. The core is made of premium cold-rolled grain-oriented silicon steel sheets with fully-mitred joints for low no-load loss and low noise. Being oil-free, the transformer carries no risk of fire or explosion and requires no oil treatment — it can be installed close to the load center, significantly reducing civil works and cable investment. It is the ideal indoor replacement for oil-immersed distribution transformers.

Product Introduction

• Flame-Retardant and Fire-Safe: The epoxy casting material is flame-retardant and self-extinguishing, releasing no harmful gases under fault conditions — ideal for crowded places such as high-rise buildings, metros and hospitals;
• Moisture-Proof, Harsh-Environment Ready: Cast windings have an extremely low moisture absorption rate and can be re-energized directly after shutdown without drying — suitable for humid environments with large temperature variations;
• Low-Noise Design: Fully-mitred core joints and optimized clamping with vibration damping; typical noise level ≤ 55 dB (low-noise fans available);
• Low Partial Discharge: Void-free vacuum casting achieves PD ≤ 10 pC, ensuring long insulation life and high operational reliability;
• Strong Short-Circuit Withstand: High mechanical strength windings with balanced ampere-turn design withstand short-circuit electrodynamic forces;
• Maintenance-Free / Low-Maintenance: Oil-free, leak-free and pollution-free — minimal routine maintenance and low total cost of ownership;
• Flexible Installation: Compact and lightweight with a roller base for easy movement; can be bay-arranged with MV/LV switchgear to save substation space;
• Smart Accessories (Optional): Temperature controller monitors three-phase winding temperature and automatically starts/stops fans; forced-air cooling (AF) boosts output capacity by approx. 40%~50%.

Service Conditions

Ambient temperature: max. +40℃, min. -25℃ (indoor type with enclosure); altitude ≤ 1000 m (special design available above); relative humidity ≤ 95%; free from explosive, corrosive gases and heavy dust. Special service conditions can be negotiated.

Technical Parameters (standard configuration; final values per order technical agreement)

Standards Compliance

IEC 60076-11GB 1094.11GB/T 22072GB 20052 Energy EfficiencyJB/T 10699

Applications

High-rise buildings and commercial complexes, rail transit (metro / airport / tunnel), hospitals and schools, data centers, industrial substations, wind and solar power stations (compact substations), ports and docks — any indoor distribution site requiring safety, environmental protection and low noise.

Why Choose Xingda (XD)?

• Years of export experience in transformer bushings and transformer components, serving customers across many countries;
• Customized production according to your voltage class, capacity, vector group, enclosure protection level and local standards;
• Complete technical documentation support: selection calculation, factory test reports, packing drawings and more.

Contact us for a quotation and customized solution.
