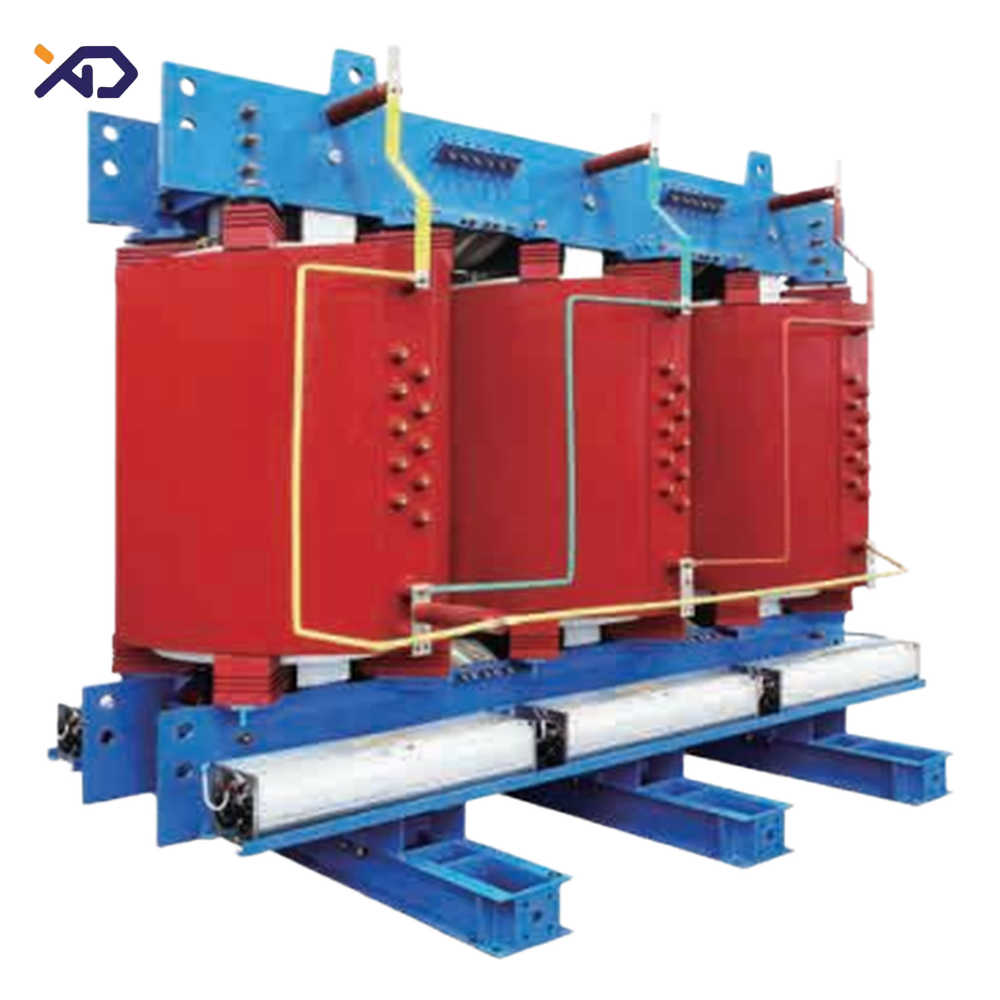

35kV Dry-Type Power Transformer SC11 Series 800kVA~25MVA (4500m Altitude / -40℃ Operation)
35kV Dry-Type Power Transformer SC11 Series (800kVA~25MVA)
Product Overview
The 35kV dry-type power transformer adopts epoxy resin vacuum casting technology to achieve fully sealed HV winding insulation, with rated capacity covering 800kVA to 25MVA. The core is built from premium high-permeability silicon steel; the HV side connects directly to the grid while the LV side outputs 3.15kV~11kV. With Class F/H insulation (155℃~180℃) and efficiency per GB/T 10228, it serves grids, industry, airport hub substations and mine power supply — operating reliably at 4500m altitude and in -40℃ extreme cold, with a design life exceeding 30 years.
Model Designation
| S | C | □ | □ / □ |
|---|---|---|---|
| Three-phase | Epoxy-resin cast | Performance code | Rated kVA / Voltage class kV |
Key Features
- Safe, fireproof, maintenance-free: strong short-circuit withstand, low maintenance, high operating efficiency, compact and low-noise; ideal for fire- and explosion-critical sites — pollution-free and connectable directly to loads;
- Reliable HV insulation: triple insulation system (windings — glass-fiber reinforced epoxy resin); partial discharge ≤10pC; power-frequency withstand 70kV/1min without flashover;
- Strong surge withstand: short-circuit tested to GB 1094.5; winding mechanical and thermal stability both meet national standards;
- Superior cooling & overload: short-time overload operation under forced-air cooling; CFD-optimized air ducts deliver hot-spot temperature rise 15K below the standard limit;
- Intelligent temperature control: complete temperature monitoring and protection system — intelligent controllers auto-scan and display the temperature of all three phase windings, start/stop fans automatically, with alarm and trip functions;
- Customizable: optional harmonic-suppression windings, on-load tap changer and anti-condensation heaters for special site conditions.
Main Performance Parameters — 35kV Class Dry-Type Power Transformer
| Model | Rated Power (kVA) | Vector Group | Voltage Combination (kV) | No-load Loss (W) | Load Loss (W) 120℃ (F) | No-load Current (%) | Short-circuit Impedance (%) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| HV | Tap Range | LV | ||||||||
| SC11-800 | 800 | Dyn11 Yd11 Yyn0 | 35 / 36 / 37 / 38.5 | ±2×2.5% / ±5% | 3.15 / 6 / 6.3 / 10 / 11 | 2020 | 9400 | 0.85 | 6 | |
| SC11-1000 | 1000 | 2400 | 10900 | 0.85 | ||||||
| SC11-1250 | 1250 | 2810 | 12900 | 0.75 | ||||||
| SC11-1600 | 1600 | 3320 | 15400 | 0.75 | 7 | |||||
| SC11-2000 | 2000 | 3800 | 18200 | 0.65 | ||||||
| SC11-2500 | 2500 | 4370 | 21800 | 0.65 | ||||||
| SC11-3150 | 3150 | Dyn11 Yd11 Yyn0 | 5420 | 24500 | 0.6 | 8 | ||||
| SC11-4000 | 4000 | 6310 | 29400 | 0.6 | ||||||
| SC11-5000 | 5000 | 7530 | 34900 | 0.55 | ||||||
| SC11-6300 | 6300 | 8910 | 40800 | 0.55 | ||||||
| SC11-8000 | 8000 | Dyn11 Yd11 YNd11 | 6 / 6.3 / 10 / 10.5 / 11 | 10100 | 46000 | 0.45 | 9 | |||
| SC11-10000 | 10000 | 11600 | 55500 | 0.45 | ||||||
| SC11-12500 | 12500 | 14100 | 64600 | 0.35 | ||||||
| SC11-16000 | 16000 | 17300 | 76000 | 0.35 | ||||||
| SC11-20000 | 20000 | 20600 | 85500 | 0.3 | 10 | |||||
| SC11-25000 | 25000 | 24300 | 101000 | 0.3 | ||||||
Typical Applications
| Sector | Description |
|---|---|
| Power Stations / Grids | Direct 35kV grid connection for hub substations and distribution |
| Factories / Chemical Plants | Fire- and explosion-critical production power; oil-free and maintenance-free |
| Airports / Tunnels | Hub substation and tunnel power supply — quiet and safe |
| Hospitals / Nuclear Stations | High-reliability supply for critical loads in extreme environments |
| Mines / High-Altitude Sites | Stable operation at 4500m altitude and -40℃ |
Why Choose XD?
With years of transformer manufacturing and export experience, XD delivers products worldwide with complete type-test reports and international certifications. Capacity, impedance, harmonic-suppression and voltage-regulation schemes can be customized to IEC/ANSI/GB standards and project conditions, with OEM/ODM service and full export documentation support. Send us your inquiry with your grid conditions — our engineers will propose the optimal solution.
