Transformer Moisture Absorber (Transformer Breather): Complete Technical Guide

Transformer moisture absorber, also widely named transformer breather, silica gel breather, transformer dehumidifier, is a critical air‑purification protective accessory for oil‑immersed transformersHangzhou W.... Installed directly on the air inlet of transformer conservator (oil storage tank), this device filters out airborne moisture, dust and solid impurities during transformer breathing cycles, stabilizes internal air quality, protects dielectric property of transformer insulating oil, and extends overall transformer service life英诺通达. Without a qualified moisture absorber, humid and contaminated outside air will enter the conservator as oil expands and contracts under temperature fluctuation, lowering insulation strength, accelerating oil aging, and potentially triggering partial discharge or internal failure of power transformersJiezou Pow....

Working Principle of Transformer Moisture Absorber

Oil‑immersed transformers produce continuous breathing behavior during regular operation. When transformer load or ambient temperature rises, insulating oil expands, pushing internal excess air out through the moisture absorber. When temperature drops, oil volume shrinks and negative pressure forms inside the conservator, drawing external atmospheric air inward through the breather assemblyxingda-ele....

All incoming air first passes through pre‑filter or oil‑seal oil cup to capture dust, grit and particulate contaminants. The air then flows through a bed of color‑changing blue silica gel desiccant. Porous silica gel adsorbs water vapor, delivering dry air into the transformer oil tank. Blue silica gel particles will gradually turn pink once saturated with moisture, offering intuitive visual indication for maintenance staff to perform desiccant replacement or thermal regeneration (heating 120‑150℃)ziyaopower.... Outgoing exhaust air from transformer also passes through desiccant layer for secondary filtration before releasing to atmosphere. This bidirectional drying‑filtration loop maintains stable dry environment inside oil‑filled transformer equipment all year round英诺通达.

Three Main Categories of Transformer Moisture Absorber

Three mainstream product variants are commonly deployed across power distribution and power‑transformer projects: Ordinary Moisture Absorber, Double‑Breathing Slow‑Flow Hygroscopic Device, and Stainless‑Steel Explosion‑Proof Moisture Absorber. Each variant targets different working conditions, capacity ranges and safety‑level requirements.

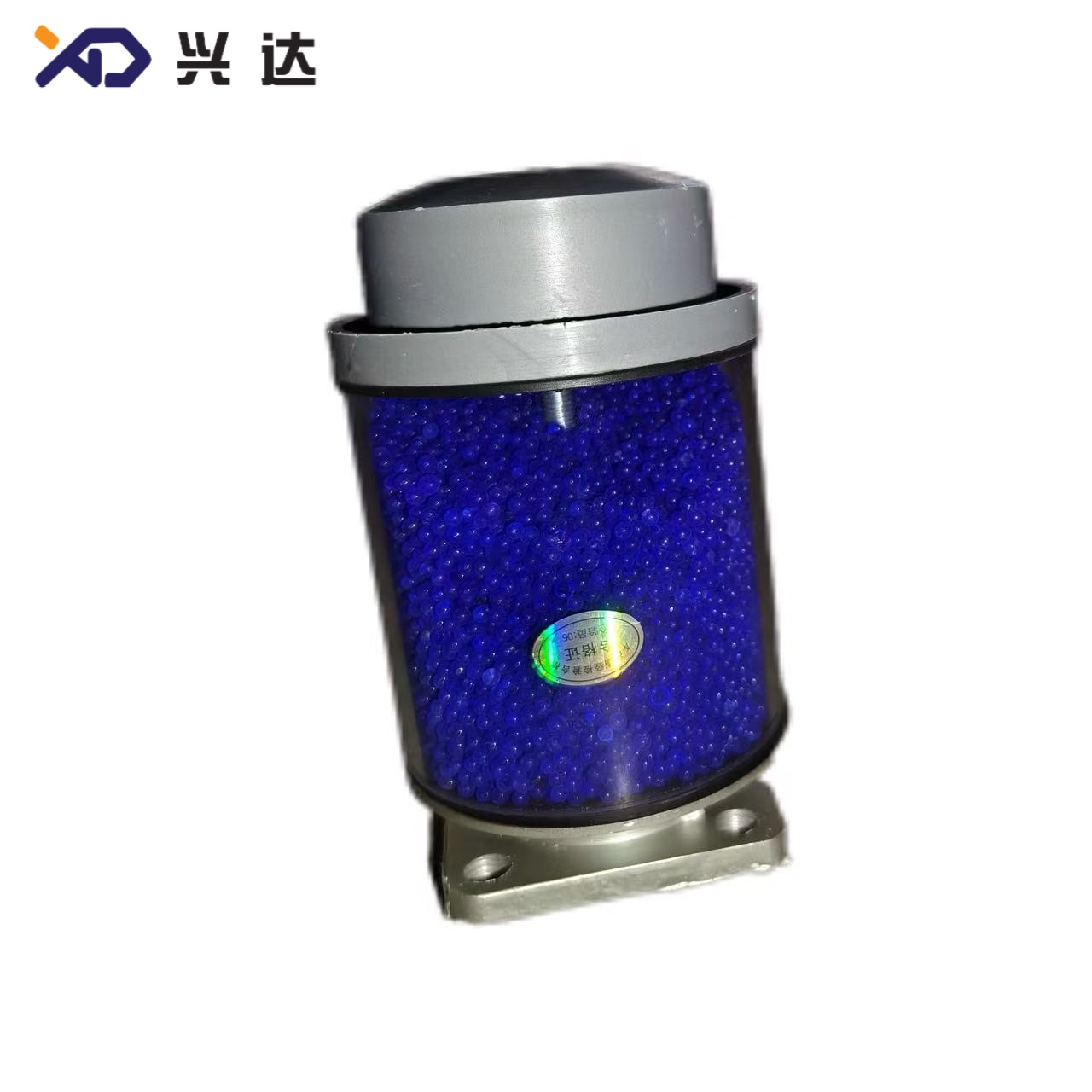

1. Ordinary Moisture Absorber

Ordinary moisture absorber represents the basic‑generation standard breather for oil‑immersed transformers. Main housing adopts polyamide 66 thermoplastic engineering plastic via injection molding process, delivering high mechanical strength and excellent chemical corrosion resistance against transformer mineral oil and atmospheric corrosive agents. This type is cost‑effective for general‑purpose distribution transformers. It supports two standard mounting flange configurations: three‑hole installation pattern for 0.2 kg‑1.0 kg silica gel capacity; four‑hole square‑flange installation pattern for 0.2 kg‑10 kg full‑range models. Standard mounting hole specifications include 3‑M8 for small sizes and 4‑M12 for medium‑large capacity units, with 85 × 85 mm square‑flange outer dimension as universal installation interface.

Core advantages:

• Cost‑competitive standard‑design solution for general‑use oil‑immersed transformers
• PA66 plastic body resists aging, mechanical impact and chemical erosion
• Compatible with widely‑adopted three‑hole and four‑hole transformer‑conservator mounting interfaces
• Covers silica gel filling weight from 0.2 kg up to 10 kg for diverse‑size transformers

Limitations: Ordinary moisture absorber has conventional air‑passage structure. Filtration and drying performance fit regular indoor or sheltered outdoor operating environments; it is not optimized for heavy‑dust, high‑humidity or hazardous explosion‑risk locations.

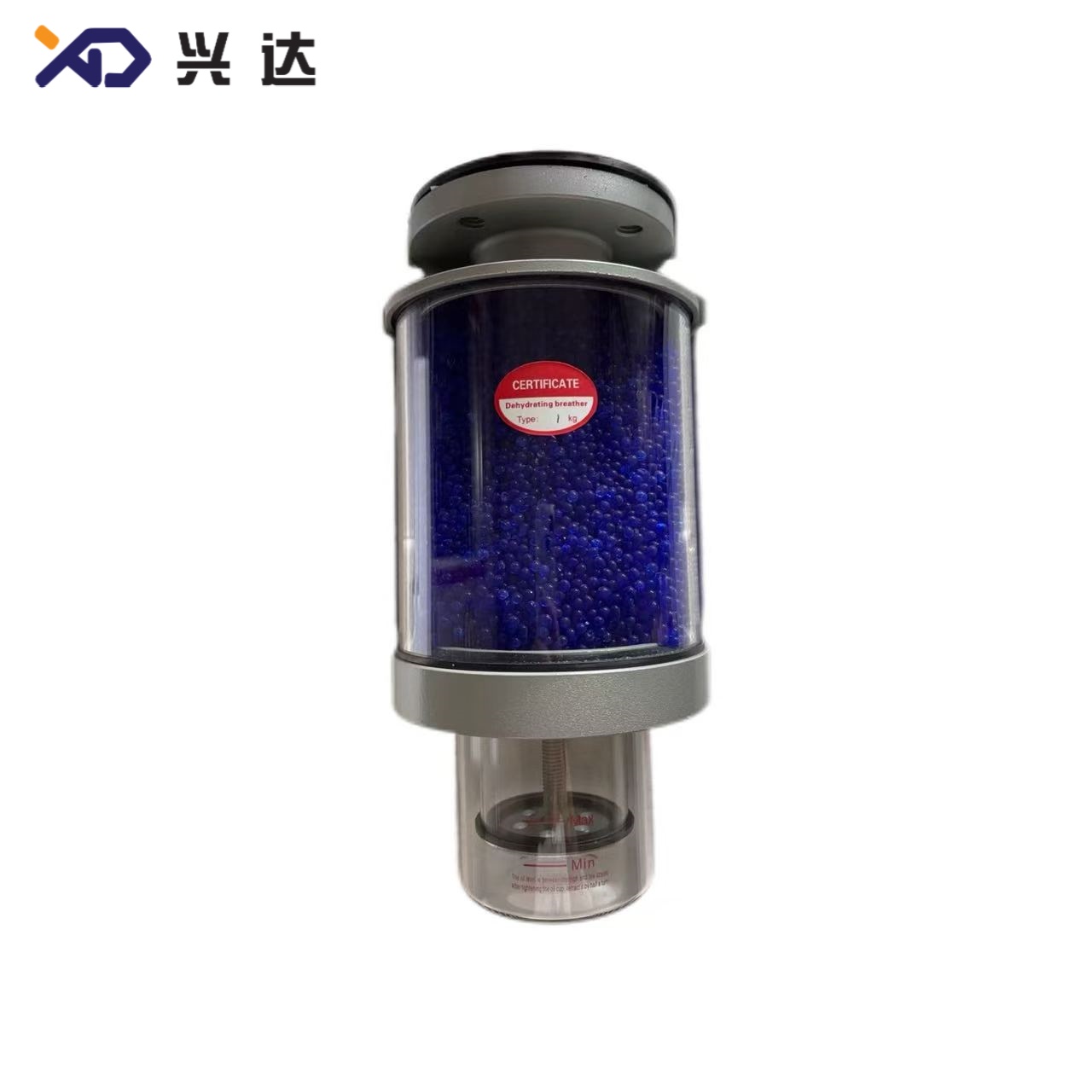

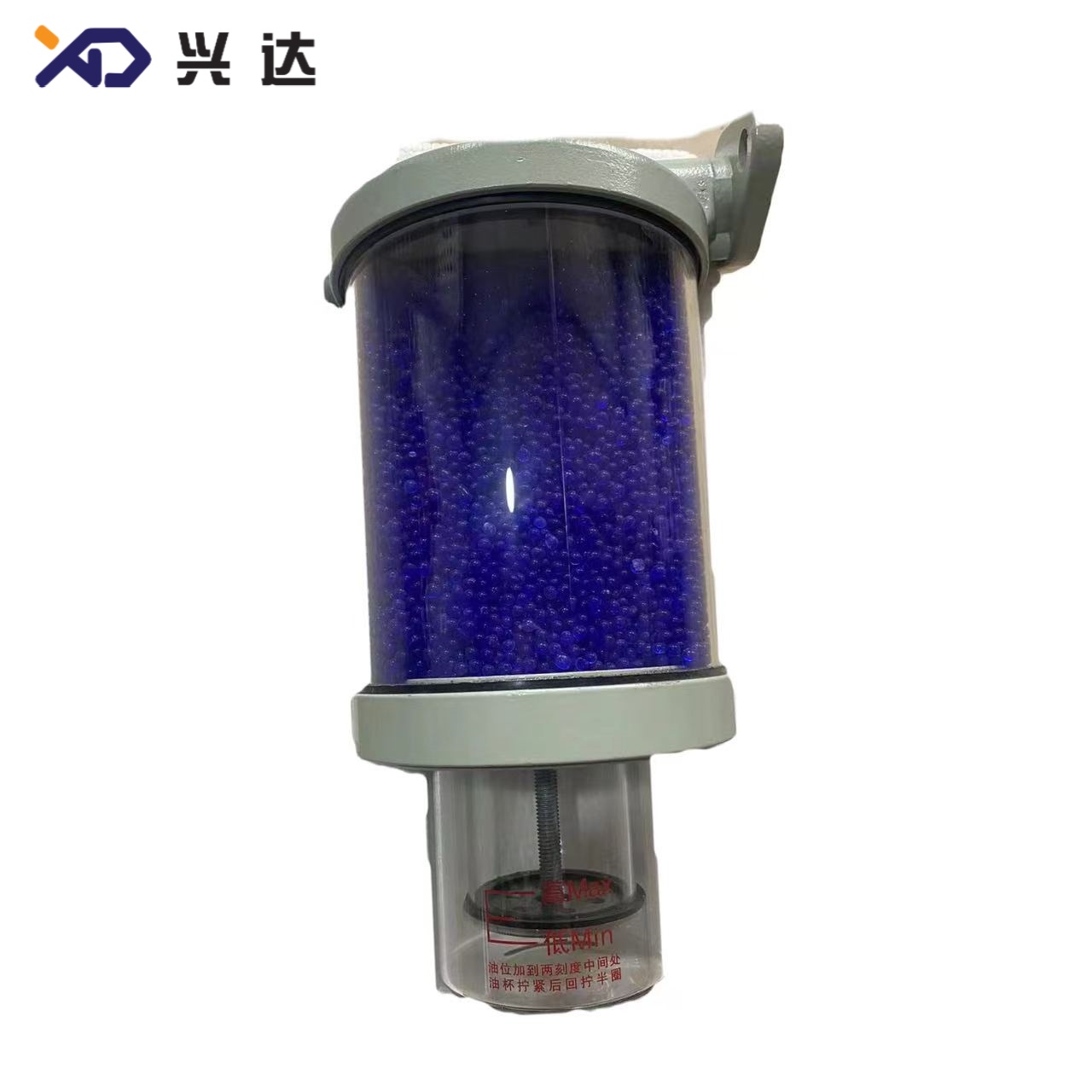

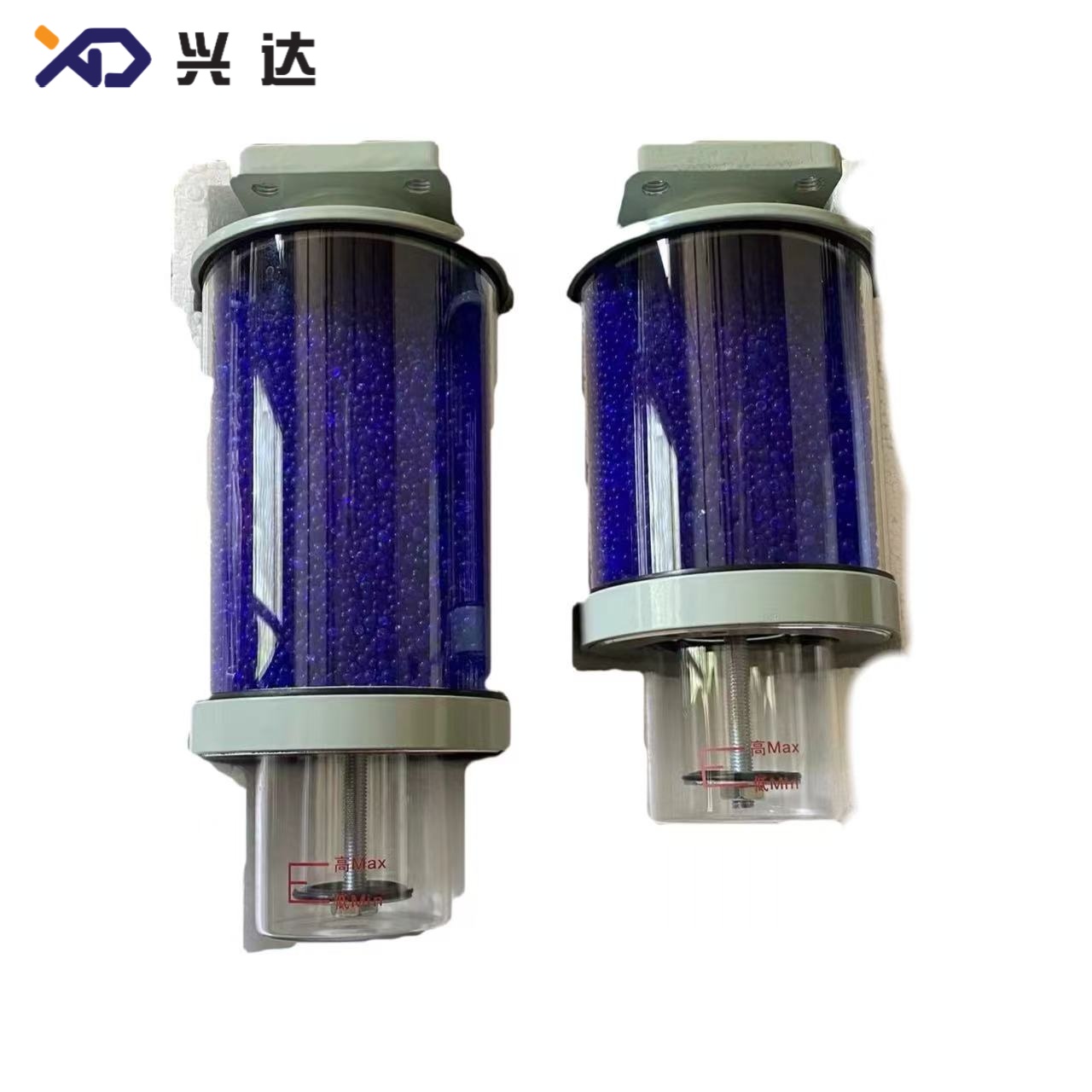

2. Double‑Breathing Slow‑Flow Hygroscopic Device (Dual‑Breathing Slow‑Flow Dehumidifier)

Double‑breathing slow‑flow hygroscopic device is upgraded high‑efficiency breather design. It expands air‑purification internal space and extends air‑filtration residence time inside desiccant chamber. Compared to ordinary moisture absorber models, its purification efficiency can improve approximately 30 percent under identical silica‑gel filling weight conditions.

This equipment equips full transparent glass cylinder housing, filled with blue color‑changing silica gel desiccant. Maze‑shaped bottom intake channel slows airflow velocity to maximize moisture‑adsorption contact time between moist air and silica‑gel beads. After filling proper transformer oil inside bottom oil cup, operators can directly observe real‑time inhaling‑exhaling breathing status of moisture absorber as well as oil‑seal liquid level through transparent glass wall. Breathing visual monitoring helps operators identify abnormal transformer internal pressure change at early stage. It effectively blocks dust and water vapor ingress to protect transformer‑oil insulation performance for medium‑and‑large‑size oil‑immersed transformers.

Same standard mounting flange options apply: three‑hole pattern (0.2 kg‑1.0 kg silica gel) and four‑hole pattern (0.2 kg‑10 kg silica gel).

Key advantages:

• 30 % higher air‑purification efficiency versus ordinary moisture absorber
• Maze‑type slow‑flow inlet optimizes air‑desiccant contact duration
• Full‑transparent glass tube for direct visual inspection of breathing movement, oil‑cup liquid level and silica‑gel discoloration
• Suitable for medium‑size and critical distribution transformers requiring enhanced monitoring capability

3. Stainless‑Steel Explosion‑Proof Moisture Absorber

Stainless‑steel explosion‑proof moisture absorber is heavy‑duty enhanced‑safety breather variant. Main protective shell is built with stainless‑steel material, fitted with built‑in transparent glass cover inspection windows, tie‑rod assembly, dedicated silica‑gel filling inlet and bottom oil‑collection cup with protective net structure. This structural design delivers explosion‑resistant performance for hazardous operating environments. It is widely selected for transformers installed in chemical plants, petrochemical sites, mining facilities and other potentially explosive‑atmosphere zones.

Stainless‑steel housing provides outstanding mechanical protection against external collision, ultraviolet aging, rain‑water corrosion and harsh outdoor weathering conditions. Multi‑window aperture layout allows operators to check silica‑gel saturation condition without device disassembly. It also shares industry‑standard 3‑hole and 4‑hole mounting flange dimensions for 0.2 kg‑10 kg capacity range, ensuring interchangeability with existing transformer conservator interfaces.

Major benefits:

• Stainless‑steel outer shell provides mechanical protection and explosion‑proof property for risky application scenarios
• Multiple observation windows support condition inspection without component disassembly
• Integrated oil‑collection cup and protective net reduce foreign‑object‑intrusion risks
• Resists heavy rain, ultraviolet radiation and industrial‑site corrosive atmosphere

Technical Parameter & Dimension Reference Tables

Below tables extract standard technical parameters corresponding to three moisture‑absorber categories, including model designation, silica‑gel filling weight, applicable transformer oil mass and matching transformer capacity range.

Table1: Double‑Breathing Slow‑Flow Hygroscopic Device Technical Specifications

表格

Installation notes: Three‑hole mounting diagram for 0.2 kg‑1.0 kg silica gel weight; four‑hole mounting diagram for full 0.2 kg‑10 kg range; mounting hole specifications:3‑M8,4‑M12; square flange dimension 85 × 85 mm.

Table2: Stainless‑Steel Explosion‑Proof Moisture Absorber Reference Parameters

表格

Installation notes: Three‑hole mounting pattern applies for 0.2 kg‑1.0 kg capacity; four‑hole mounting pattern for 0.2 kg‑10 kg capacity; standard 4‑M12 bolt holes and 85 × 85 mm square‑flange dimension.

Installation Guidelines for Transformer Moisture Absorber

1. Vertical mounting requirement: Moisture absorber must install vertically onto conservator breathing port. Tilting installation will break oil‑seal balance and degrade filtration performance.
2. Flange‑sealing check: Tighten flange‑connection bolts evenly to eliminate air‑leakage gaps. Any air bypassing desiccant chamber will directly bring humid unfiltered air into transformer oil tank.
3. Oil‑cup filling (for oil‑cup‑equipped models): Inject qualified transformer mineral oil into bottom oil cup to marked liquid‑level position before commissioning. Oil‑cup liquid forms primary dust‑filtration oil‑seal barrier.
4. Desiccant condition pre‑check: Confirm blue silica gel keeps dry blue status before putting equipment into service. Replace pink saturated silica‑gel beads if found.
5. Avoid physical impact: Especially for glass‑cylinder‑type models; mechanical shock may crack transparent glass components.

How to Select Suitable Transformer Moisture Absorber

1. Match silica‑gel filling weight with transformer capacity and internal insulating‑oil mass. Larger‑capacity power transformers require heavier silica‑gel loading to handle higher total breathing‑air volume.
2. Evaluate site‑environment conditions:
• Ordinary indoor distribution‑transformer stations: Ordinary PA66‑housing moisture absorber is adequate.
• Outdoor transformer substations with high‑humidity or heavy‑dust atmosphere: Prefer double‑breathing slow‑flow hygroscopic device with enhanced filtration efficiency and visual monitoring function.
• Petrochemical, mining and explosion‑hazard‑class locations: Adopt stainless‑steel explosion‑proof moisture absorber.
3. Verify mechanical‑installation interface: Confirm conservator flange dimension, bolt‑hole quantity (3‑hole or 4‑hole) and bolt specification (M8 / M12) before ordering to guarantee mechanical compatibility.
4. Consider local ambient humidity level: Regions with perennial high‑relative‑humidity atmosphere should select one‑grade‑larger silica‑gel capacity to extend maintenance cycle of desiccant replacement.

Maintenance Best Practices

1. Regular visual inspection: Check silica‑gel color periodically. Once blue particles mostly turn pink, silica gel reaches moisture‑saturation state and needs replacement or thermal regeneration (120‑150 °C heating for 2‑4 hours for regenerable silica‑gel grade)ziyaopower....
2. Oil‑cup oil‑level inspection: Maintain oil‑seal liquid level inside oil cup within specified mark. Supplement transformer oil if liquid level drops due to evaporation; clean and replace oil‑cup oil if oil turns dirty and turbid.
3. Check for air‑leakage traces around flange joint during routine transformer maintenance work.
4. Check glass cylinder for crack or damage; replace component timely if breakage is observed.
5. In high‑humidity tropical or coastal climate zones, shorten inspection intervals for moisture absorber, as silica gel saturates more rapidly under high‑moisture atmospheric conditions.

Frequently Asked Questions

Q1: What damage will occur if moisture absorber fails?

When moisture absorber loses drying‑filtration function, humid air and dust flow freely into conservator. Water dissolves into transformer insulating oil, reducing dielectric‑breakdown strength, accelerating paper‑insulation aging, and raising risk of partial discharge, flash‑over or transformer‑winding failure.

Q2: Can saturated pink silica gel be reused?

For indicator‑type silica gel desiccant, thermal regeneration is feasible. Heat saturated pink silica gel at 120‑150 °C under ventilated condition until particle color reverts back to blue. Note cobalt‑containing indicator silica gel needs proper ventilation during heating regeneration process. Non‑regenerable silica‑gel type requires direct replacement.

Q3: What is difference between moisture absorber and transformer breather?

Moisture absorber and breather refer to identical equipment for oil‑immersed transformers. “Moisture absorber” emphasizes moisture‑adsorption function; “breather” highlights air‑exchange breathing function caused by oil thermal expansion‑contraction cycle. Two terms are interchangeable in power‑industry technical documentation and procurement specifications英诺通达.

Q4: Must moisture absorber be installed vertically?

Yes. Tilted installation will break oil‑cup oil‑seal liquid‑level balance. Dust‑filtering oil may overflow or lose sealing effect, allowing unfiltered air to bypass desiccant chamber and enter transformer conservator directly.

Conclusion

Transformer moisture absorber (transformer breather) serves as the first‑line atmospheric‑protection barrier for oil‑immersed transformers. Selecting correct type, proper silica‑gel capacity and carrying out standardized installation and routine maintenance will effectively preserve insulating‑oil quality, slow down transformer internal insulation aging, lower unexpected power‑equipment failure probability, and prolong total service‑life cycle of distribution and power transformers. Different variants including ordinary plastic‑housing type, double‑breathing slow‑flow high‑efficiency type, and stainless‑steel explosion‑proof type satisfy wide‑ranging application scenarios from common distribution substations up to hazardous industrial‑site power‑transformer installations.
