Silicon Steel Core Dry-Type Distribution Transformer SC(B)H01 Series 10kV Class 200~3150kVA (Customizable)

Silicon Steel Core Dry-Type Distribution Transformer SC(B)H01 Series (10kV Class, 200~3150kVA)

Product Overview

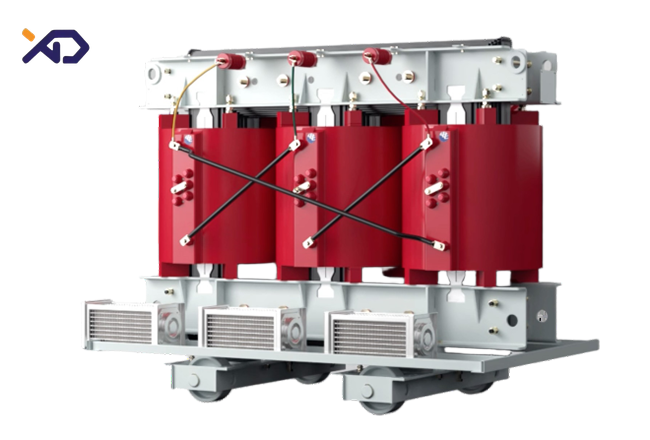

The silicon steel core dry-type distribution transformer adopts a premium cold-rolled grain-oriented silicon steel core and vacuum-cast epoxy resin windings. Manufactured in strict compliance with IEC 60076-20 energy efficiency standards, it offers outstanding low-loss and low-noise performance for 10kV class power distribution systems. Key parameters — no-load loss, load loss, impedance, noise and rating — are fully specified, making it widely applicable to power transmission and distribution systems up to 30kV in factories, power stations, industrial and mining enterprises and user distribution networks.

30% Energy Savings — Lower Life-Cycle Cost
Thanks to the low-loss silicon steel core and optimized winding design, this series reduces energy consumption by approximately 30% compared with conventional products. Over a 20-year service life the saved operating electricity cost is substantial — the incremental investment in higher efficiency is typically recovered within 3~5 years, making it an ideal choice for green grids and energy-saving retrofit projects.

Key Features

• Premium silicon steel core: cold-rolled grain-oriented laminations with 45° fully-mitred, multi-step lap joints — significantly lower no-load loss and magnetizing current, reduced core noise;
• Vacuum-cast epoxy windings: HV and LV windings cast under vacuum — void-free, low partial discharge, moisture-proof, flame-retardant and self-extinguishing;
• Low loss, low noise: built to IEC 60076-20 efficiency requirements; suitable for installation close to load centers and in urban areas;
• Class F / Class H insulation options: meets different temperature-rise and overload demands with strong short-time overload capability and long thermal life;
• High short-circuit withstand: mechanically robust windings with filled-resin construction withstand electrical and mechanical stresses in service;
• Maintenance-free, flexible installation: oil-free design with no fire or leakage risk; IP20~IP30 enclosures for indoor installation; under-base rollers available for LV switchgear cubicle coupling;
• Intelligent temperature control: optional temperature controller and forced-air cooling (AF) boost output capacity by 40~50% for seasonal load peaks.

Core Advantages

• Energy-saving: approx. 30% lower energy consumption; low no-load loss brings significant long-term electricity savings;
• Eco-friendly: oil-free, non-toxic, flame-retardant, recyclable — no pollution or leakage hazards;
• Safe: self-extinguishing, moisture and pollution resistant, low partial discharge — ideal for critical loads;
• Economical: maintenance-free, low life-cycle cost, compact footprint, and reduced line losses when installed at load centers.

Technical Parameters (typical configuration; final values per order technical agreement)

Model Designation: S — three-phase; C — solid cast insulation (epoxy resin); (B) — foil LV winding (optional); H01 — series design code.

Standards & Compliance

• IEC 60076-20 (energy efficiency of dry-type transformers)
• IEC 60076-11 Dry-type transformers
• GB 1094.11, GB/T 10228, GB 20052 (minimum allowable energy efficiency values and grades)
• JB/T 3837 (transformer product model designation)

Typical Applications

Why Choose XD?
With years of manufacturing and export experience, XD transformers have been delivered to Southeast Asia, the Middle East, Africa, Europe and the Americas. Complete type-test reports and international certifications are available; production to IEC/ANSI/GB standards, OEM/ODM service and full export documentation support are provided. Send us your inquiry with voltage, capacity, impedance and site conditions — our engineers will propose the optimal solution.
