35kV Class and Below Dry-Type Double-Split (Split-Winding) Transformer SCF(B)12 Series 630kVA~16MVA (10~35kV)

35kV Class and Below Dry-Type Double-Split Transformer SCF(B)12 Series (630kVA~16MVA)

Product Overview

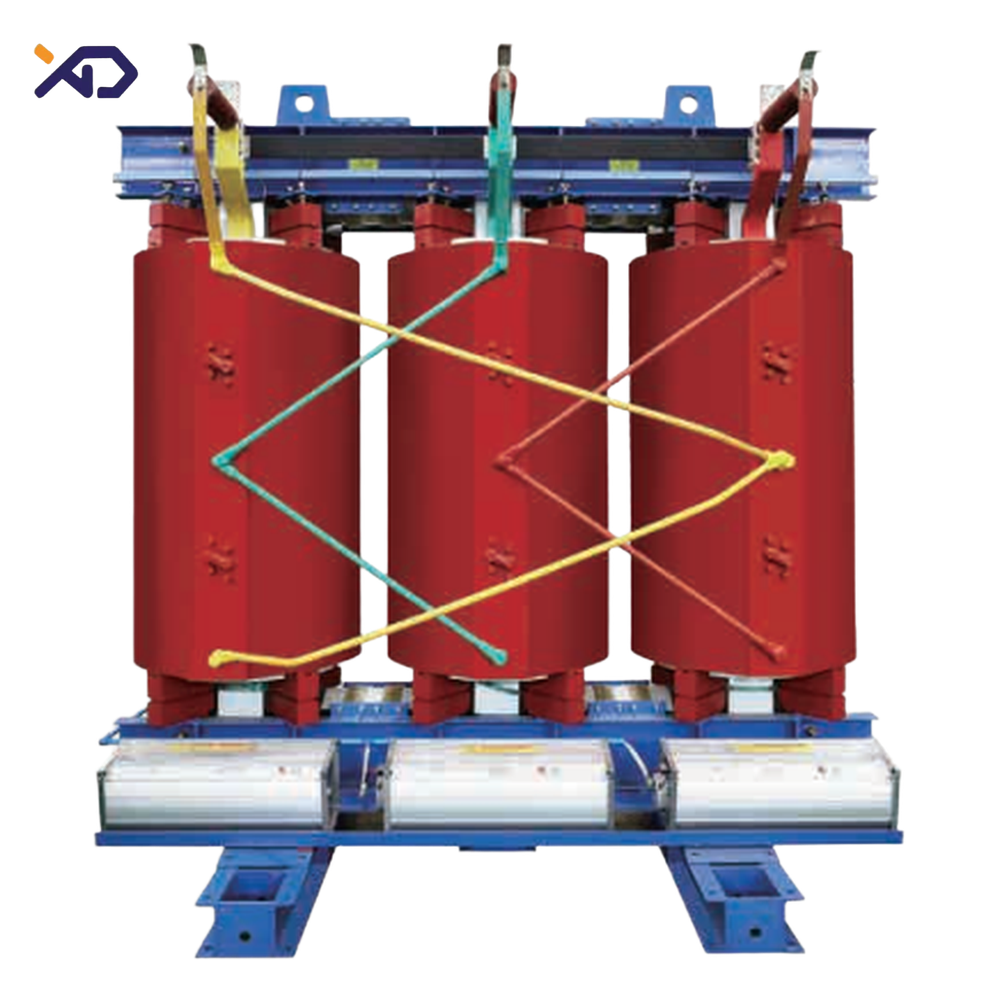

The dry-type double-split transformer is a special transformer featuring two independent low-voltage windings that can supply different loads separately. The dual independent LV windings are fully enclosed through high-precision epoxy resin vacuum casting. Rated voltage ranges from 10kV to 35kV with capacity from 630kVA to 16MVA, IP54 or below protection and Class F/H temperature endurance. Designed for PV, wind and storage renewable scenarios as well as data centers, semiconductor plants and hospitals — when one load circuit fails, the other split winding keeps supplying power, ensuring zero interruption for critical loads.

Model Designation

Key Features

• Dual-supply security: if one load circuit fails, the other split winding keeps supplying continuously; one unit replaces two — saving 50% of the space and 25% of equipment procurement cost;
• Precise electromagnetic balance: split-winding symmetry deviation <2%, meeting ampere-turn balance requirements and solving the problem of large dimension deviation between upper and lower windings;
• Compact design: footprint reduced by 45% versus two independent transformers, with optimized internal ventilation in the enclosure to lower hot-spot temperature rise.

Main Performance Parameters — SCF(B)12 Dry-Type Double-Split Transformer

Typical Applications

Why Choose XD?
With years of transformer manufacturing and export experience, XD delivers products worldwide with complete type-test reports and international certifications. Split ratio, split impedance and LV winding configurations can be customized to IEC/ANSI/GB standards and project conditions, with OEM/ODM service and full export documentation support. Send us your inquiry with your power supply architecture — our engineers will propose the optimal solution.
