Three-Phase Dry-Type Distribution Transformer Cast Resin 10kV to 400V (6~35kV / 50~200kVA Options)

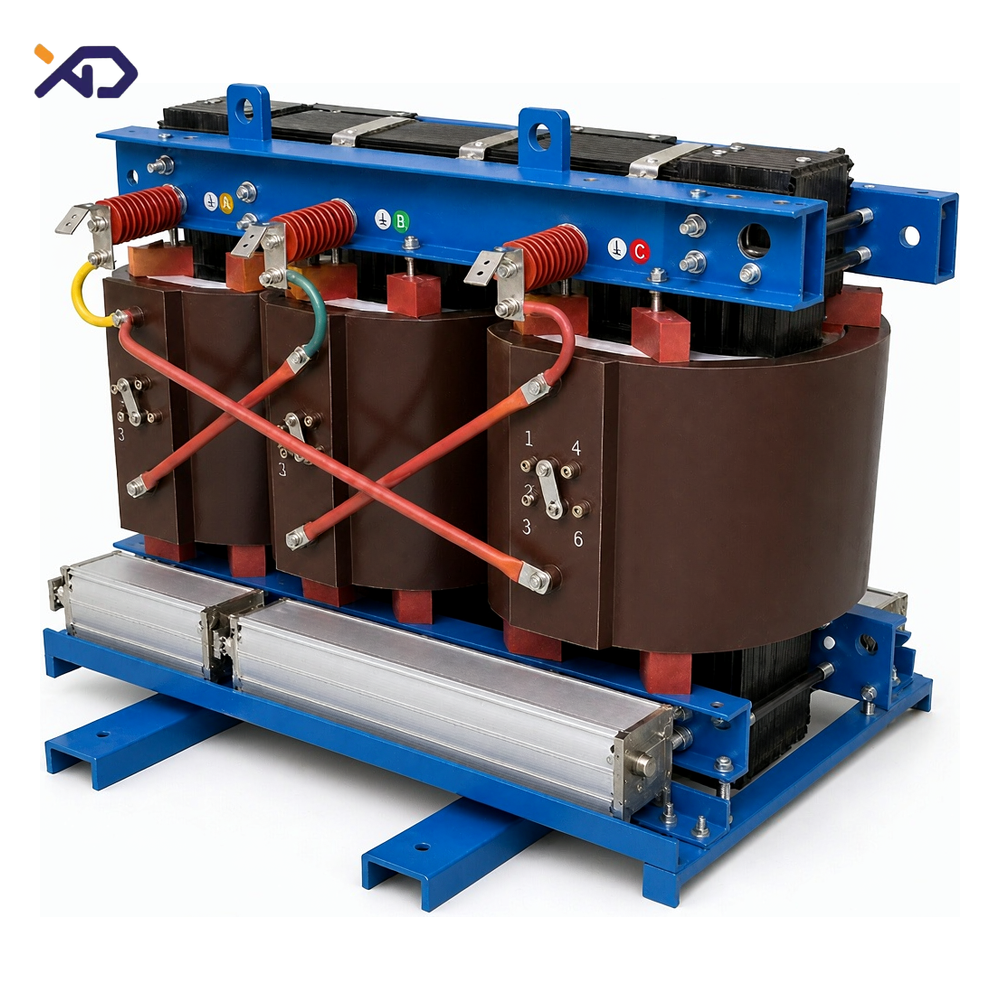

Three-Phase Dry-Type Distribution Transformer (Cast Resin, 10kV to 400V)

Product Overview
This series of three-phase dry-type distribution transformers features a fully-sealed epoxy resin cast construction. The HV side adapts to 6kV/10kV/24kV/35kV grids while the LV side outputs 110V/220V/400V/440V/690V/11000V — covering step-down distribution, equipment isolation supply and auto-transformer voltage adaptation. Copper windings, designed and manufactured to IEC 60076, with ONAN self-cooling / AF forced-air cooling, 50/60Hz universal, and export-friendly wooden case packaging.

Key Features

• Flexible voltage combinations: HV 6/10/24/35kV; LV 110~11000V multi-tap — step-up, step-down, isolation or auto configurations per order;
• Fully-sealed cast coils: layer-wound / disc-wound coils vacuum-cast and sealed — moisture-proof, pollution-resistant, maintenance-free;
• Copper windings: HV and LV windings in copper — strong overload capability, low losses, long life;
• Dual cooling modes: ONAN self-cooling for normal operation, AF forced-air for short-time capacity boost under load swings;
• Universal standards: designed to IEC 60076, 50/60Hz universal — ready for overseas grids and export projects;
• Export friendly: wooden case packaging, MOQ 1 unit, small-batch customization supported.

Main Specifications

Typical Applications

Why Choose XD?
With years of transformer manufacturing and export experience, XD delivers products worldwide with complete type-test reports and international certifications. Power ratings and voltage combinations can be customized to IEC/ANSI/GB standards, with OEM/ODM service and full export documentation support. Send us your voltage and capacity requirements — our engineers will propose the optimal solution.
