Amorphous Alloy Fully-Insulated Low Temperature-Rise 3D Wound Core Dry-Type Transformer (30~3300kVA · up to 35kV)

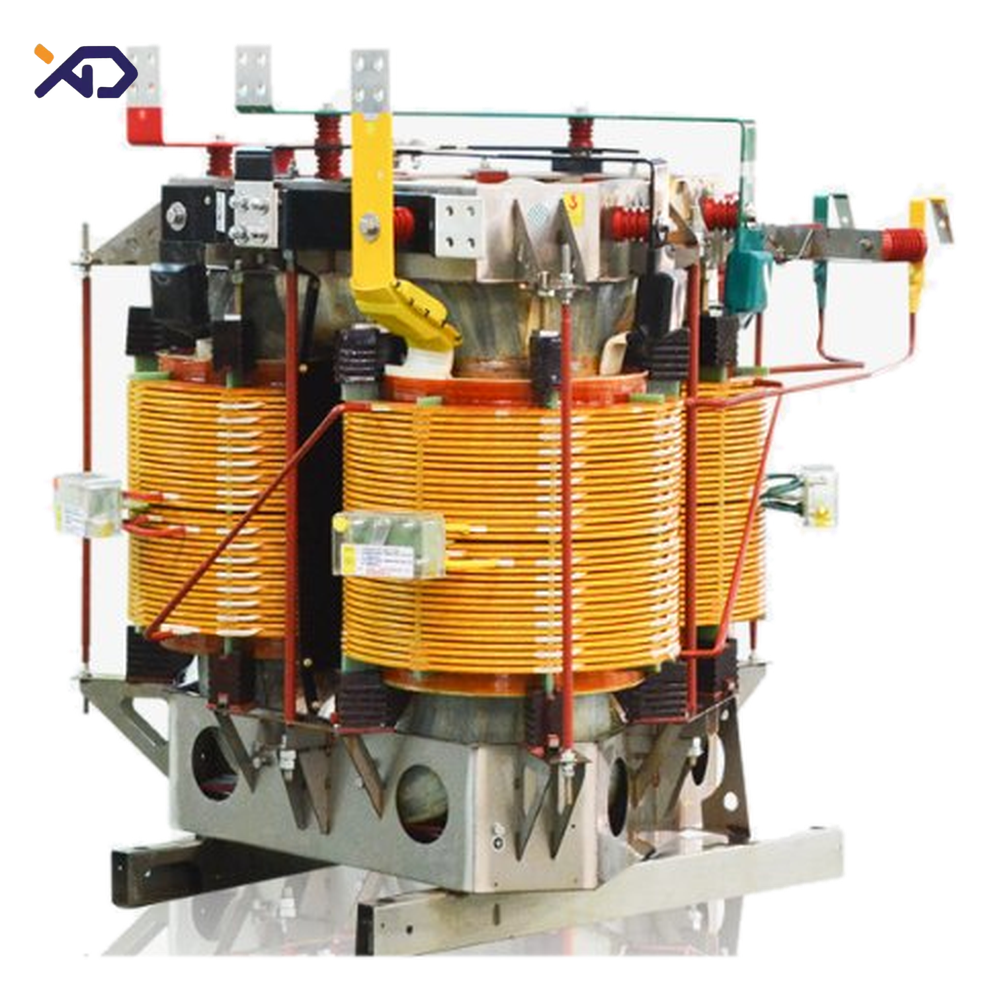

Amorphous Alloy Fully-Insulated Low Temperature-Rise 3D Wound Core Dry-Type Transformer

Product Overview
This series features a closed 3D wound-core structure that fully exploits the low-loss characteristics of amorphous alloy while overcoming its processing difficulties (hard, thin, brittle ribbon). Combined with a hybrid insulation system of NOMEX® aramid paper, PIF polyimide film and eco-friendly insulating varnish, the transformer offers low losses, strong short-circuit withstand, low noise, fire and explosion safety, moisture and pollution resistance, strong climate durability, crack resistance and low partial discharge — resolving the noise, stability and short-circuit weaknesses of conventional amorphous transformers, at an internationally leading technical level.

Key Advantages

• High efficiency & energy saving: the significant energy-saving benefit of amorphous material, the most balanced magnetic path of the 3D wound core, and ultra-low no-load loss together deliver outstanding savings — the transformer runs around the clock, so every watt saved on no-load loss cuts the annual power bill;
• Superior performance: symmetrical three-phase magnetic circuit of the 3D wound core noticeably improves short-circuit withstand and further reduces noise — quieter, more reliable operation;
• Safe & reliable: fireproof and explosion-proof, moisture and pollution resistant, strong overload and short-circuit capability, excellent climate durability — suited to humid, salty and dusty environments;
• Green & eco-friendly: low no-load and load losses, low no-load current, low partial discharge, low electromagnetic field around the unit (low radiation), explosion-proof capable, easy maintenance.

Model Series

Voltage regulation method, winding conductor material, special applications or structures available on request; temperature controller, temperature display and enclosures (IP00/IP20/IP23 etc.) optional.

Scope of Application

Capacity range 30~3300kVA, voltage class up to 35kV. Suitable for all power transmission and distribution fields, especially energy-critical applications: 5G base stations, PV generation and inverter applications, rail transit, EV charging infrastructure, large data-center substations, and key equipment such as UHV control cabinets, as well as hydro, wind and PV plant systems.

Typical Applications

Why Choose XD?
With years of manufacturing and export experience, XD's dry-type transformer line covers cast-resin (SCB series), open-ventilated, silicon-steel and amorphous 3D wound-core series, with complete type-test and certification support. Capacity, voltage class, regulation method, insulation system, enclosure and branding are customizable (OEM/ODM), backed by full export documentation and after-sales support. Send us your inquiry — our engineers will propose the optimal selection for your operating conditions.
