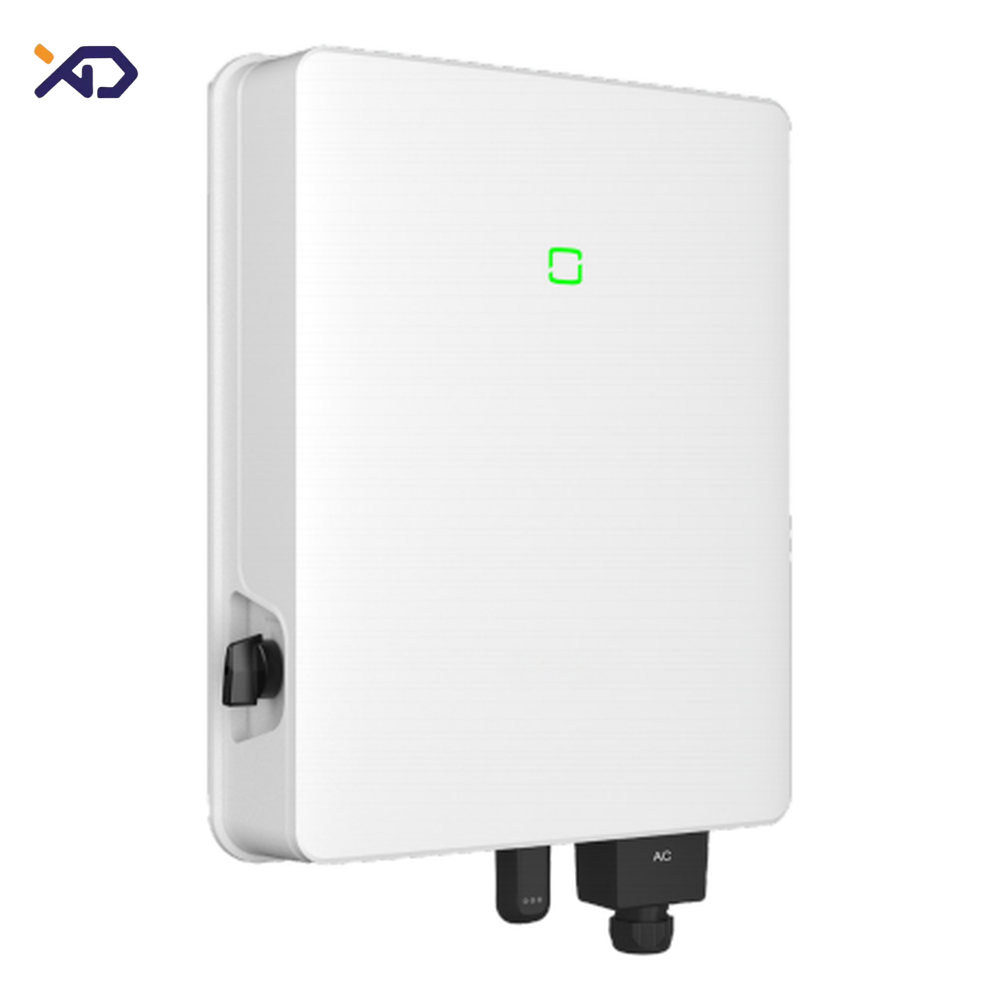

10-17kW Three-Phase Residential Grid-Tied Solar Inverter (Dual MPPT · IP65)

10-17kW Three-Phase Residential Grid-Tied PV Inverter · Dual MPPT (IP65)

Product Overview
This series covers four power ratings — 10, 12, 15 and 17kW — of three-phase residential grid-tied inverters. With a maximum input voltage of 1100V, dual MPPTs and an ultra-wide operating range of 160~1000V, it starts earlier in the morning and shuts down later in the evening for longer productive hours. Each MPPT accepts up to 20A (40A/20A on the 15/17kW models), fully compatible with 182/210 high-current modules. Maximum efficiency reaches 98.3%, with measured energy yield gains of about 2%. IP65 + C5 protection, Type II AC/DC surge protection and home-appliance-level EMC make it safe and durable, while the screen-free design with smartphone cloud monitoring and one-scan commissioning keeps O&M effortless.

Key Features

• High yield: max. efficiency 98.2~98.3%, Euro efficiency 97.8~98.1%; wide voltage range with early start and late shutdown extends daily production; 1100V max. input accepts more modules — measured yield gain of ~2%;
• Full module compatibility: up to 20A per input (40A/20A on 15/17kW models) — perfect match for 182mm and 210mm high-current modules; dual MPPTs with two strings per MPPT allow flexible design on complex roofs;
• Safety first: Type II surge protection on both DC and AC sides actively mitigates lightning risks; DC reverse-polarity, AC short-circuit, leakage current protection, grid monitoring, DC switch, string detection and anti-islanding all built in; EMC performance on par with home appliances; active/reactive power regulation, PF control and soft start/shutdown supported;
• Built to last: IP65 enclosure with C5 anti-corrosion rating withstands heat and corrosion outdoors; operating temperature -25℃~+60℃; max. altitude 4000m (derating >2000m); night-time loss ≤1W;
• Easy O&M: screen-free design with smartphone APP cloud monitoring — track generation and status anytime, anywhere; one-scan smart commissioning; 4G + RS485 communication; free software upgrades and free repair within warranty;
• Grid friendly: three-phase 230/400V and 220/380V grids; total current THD <3%, DC component <0.5% In, power factor >0.99 adjustable between 0.8 leading and 0.8 lagging;
• Light & easy to install: 10/12kW models weigh only 18kg with fanless natural cooling (silent operation); 15/17kW models 21kg with smart air cooling; compact 410×530×208mm body — one-person installation.

Technical Parameters (Four Models)

Typical Applications

Why Choose XD?
With years of export experience in new energy and power equipment, XD's inverter line spans 3~6kW single-phase residential, 10~17kW three-phase residential, 35kW three-phase hybrid storage and 50kW three-phase commercial models, bundleable with solar modules, energy storage and EV chargers for one-stop plant supply. Power ratings, communication options, enclosure and branding are customizable (OEM/ODM), backed by full export documentation and after-sales support. Send us your project details — our engineers will propose the system configuration.
