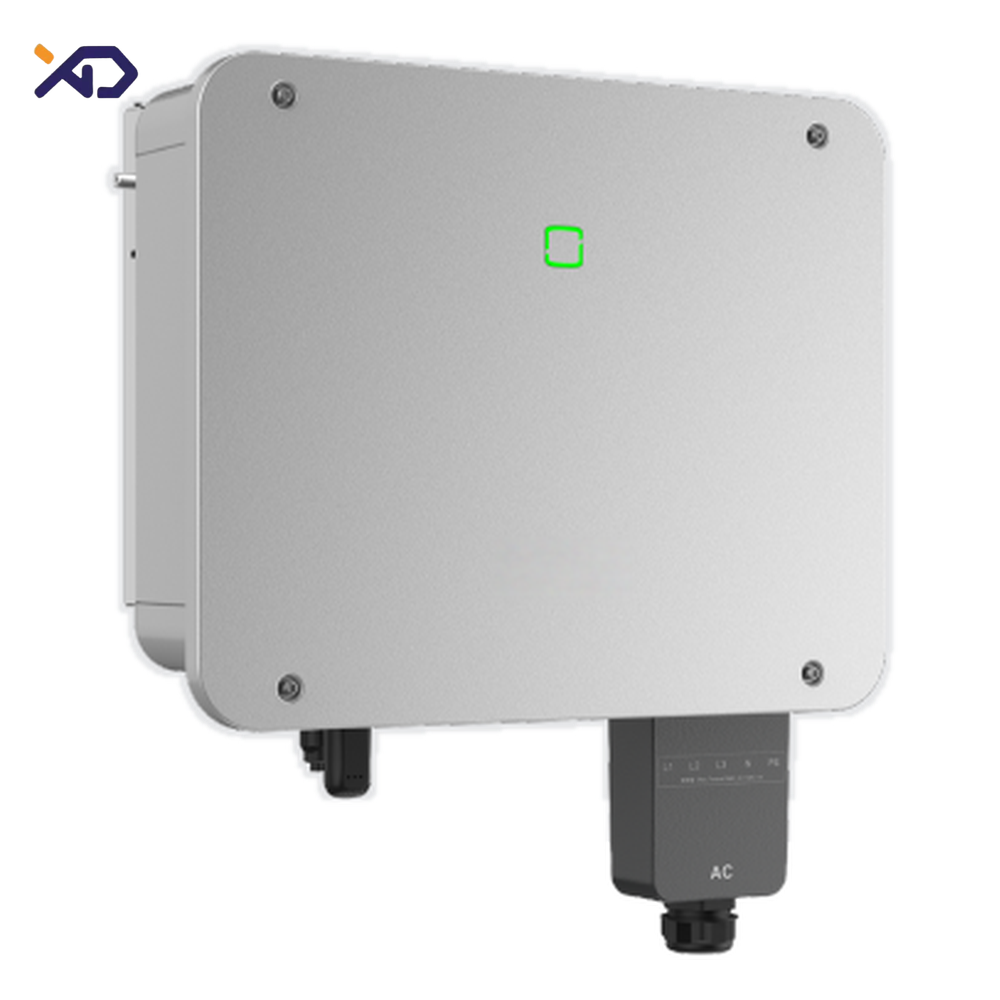

50kW Three-Phase Grid-Tied Solar Inverter (4 MPPT · IP66)

50kW Three-Phase Grid-Tied PV Inverter · 4 MPPT (IP66)

Product Overview
This 50kW three-phase grid-tied inverter is designed for residential rooftops and small-to-medium commercial PV plants. It comes standard with 4 independent MPPTs, a maximum input voltage of 1100V and an ultra-wide MPPT range of 160~1000V to adapt to complex grid conditions. Long/short string mixed configuration makes DC design flexible, with excellent module compatibility. Maximum efficiency reaches 98.6% (China efficiency 98.2%), and the global MPPT scanning algorithm boosts energy yield by about 2%. With IP66 protection, C5 anti-corrosion rating, smart air cooling, one-scan commissioning and APP cloud control, installation and O&M are effortless.

Key Features

• High yield: max. efficiency 98.6%, China efficiency 98.2%; global MPPT scanning effectively eliminates string mismatch losses, increasing yield by ~2%; power factor >0.99 at rated power, adjustable 0.8 leading ~ 0.8 lagging;
• Flexible design: 4 independent MPPTs support long/short string mixed configuration for highly flexible DC layout; ultra-wide MPPT voltage range 160~1000V adapts to complex grids; per-MPPT max. input current 40/40/32/32A — fully compatible with 20A high-current modules;
• Safety first: Type II surge protection on both DC and AC sides actively mitigates lightning risks; DC reverse-polarity protection, AC short-circuit protection, leakage current protection, grid monitoring, DC switch, string-level detection and anti-islanding protection are all built in;
• Built to last: IP66 enclosure with C5 anti-corrosion rating withstands heat, humidity and salt fog in coastal and harsh outdoor environments; operating temperature -25℃~+60℃; max. altitude 4000m (derating above 2000m);
• Easy O&M: one-scan smart commissioning for fast setup; LED + APP dual interface; 4G + RS485 communication for cloud-based remote monitoring, with anti-islanding and remote grid waveform recording;
• Grid friendly: rated output 50000W (max. 55000W / 55000VA) for 3-phase 230/400V and 220/380V grids; total current THD <3% and DC component <0.5% In for excellent power quality;
• Easy installation: compact body 645×595×245mm, only 40kg, transformerless design — one person can carry and install it, reducing roof load and labor time.

Technical Parameters

Typical Applications

Why Choose XD?
With years of export experience in new energy and power equipment, XD's inverter line spans 3~6kW single-phase residential, 35kW three-phase hybrid storage and 50kW three-phase grid-tied models, and can be bundled with solar modules, energy storage and EV chargers for one-stop plant supply. Power ratings, communication options (4G/WiFi/RS485), enclosure and branding are customizable (OEM/ODM), backed by full export documentation and after-sales support. Send us your project details — our engineers will propose the system configuration.
