4mm² PV DC Solar Cable (Red & Black Pair · 100M per Coil)

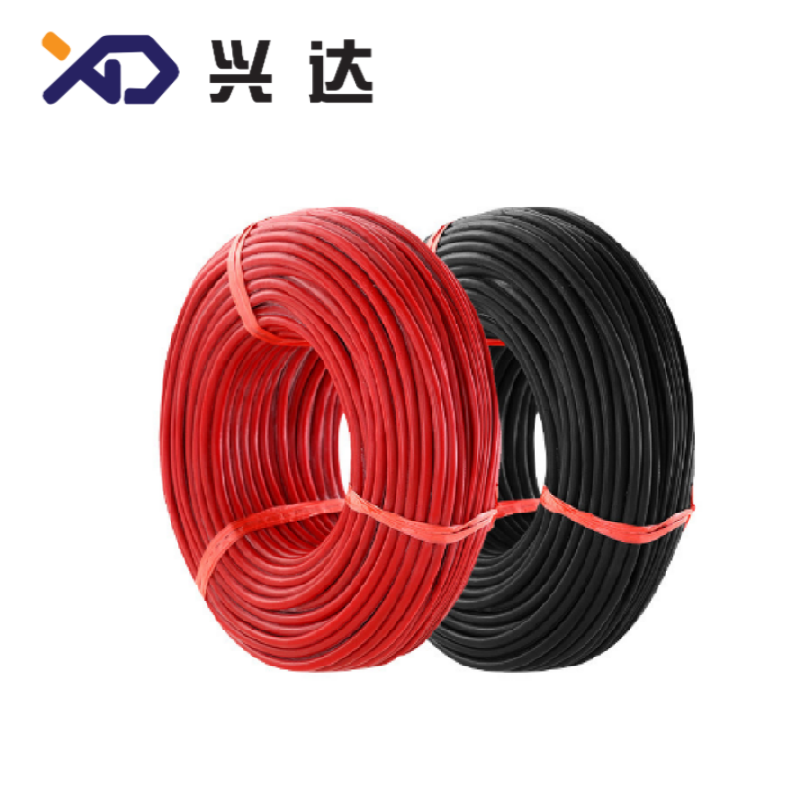

4mm² PV DC Solar Cable · Red & Black Pair (100m Coil)
Product Overview
This 4mm² PV-dedicated DC solar cable uses a fine-stranded tinned copper conductor with double cross-linked polyolefin (XLPO) insulation, supplied in matched red/black pairs (positive/negative), 100 meters per coil. Rated for high and low temperatures, UV and ozone exposure, it is halogen-free and flame retardant — engineered for the DC side wiring between PV modules, combiner boxes and inverters, and built to endure harsh outdoor environments for the life of the plant.
Key Features
- PV-dedicated design: built for DC-side operating conditions — module series/parallel wiring, string-to-combiner and combiner-to-inverter power transmission;
- Red & black pair: red/black for positive/negative polarity — fewer wiring mistakes on site, faster installation;
- Tinned copper conductor: fine-stranded tinned copper for excellent conductivity, oxidation and corrosion resistance, easy bending and termination;
- Double insulation: XLPO insulation plus sheath — high dielectric strength and abrasion resistance;
- All-weather durability: -40℃~+90℃ operating range, UV and ozone resistant, hydrolysis resistant — no chalking or cracking in long-term outdoor service;
- Safe & eco-friendly: flame retardant, halogen-free low-smoke — no toxic corrosive gases in case of fire;
- Long service life: designed per PV industry practice for up to 25 years, matching the plant lifecycle;
- Coil supply: delivered in 100m coils — easy to cut with low waste; custom lengths available.
Technical Parameters
| Item | Specification | Item | Specification |
|---|---|---|---|
| Product | PV DC solar cable | Cross-Section | 1×4mm² (16mm² also available) |
| Conductor | Fine-stranded tinned copper | Insulation / Sheath | XLPO, double layer |
| Rated Voltage | 1.5kV DC | Colors | Red / Black (paired) |
| Operating Temp. | -40℃~+90℃ (typical) | Min. Bending Radius | ≥5× cable OD (typical) |
| Weather Resistance | UV, ozone, hydrolysis resistant | Flame Retardancy | Flame retardant, halogen-free |
| Packaging | 100m per coil | Standard | PV cable standard (per factory datasheet) |
Note: items marked "typical" are industry-standard figures for PV cables — confirm against the factory datasheet before publishing (see checklist).
Typical Applications
| Sector | Description |
|---|---|
| PV Module String Wiring | Module-to-module and string-to-combiner-box DC connections |
| Inverter DC Side | Combiner/string to grid-tied or off-grid inverter DC input |
| Energy Storage Systems | DC connections between lithium battery packs and inverter/control equipment (16mm²) |
| Solar-Storage-Charging Plants | Bundled procurement with panels, inverters and chargers for unified wiring |
Why Choose XD?
With years of export experience in new energy and power equipment, XD offers a one-stop solar-storage-charging line — solar modules, inverters, lithium batteries, EV chargers and PV cabling — so you can source the complete BOM in one place. Cable length, cross-section, colors, packaging and branding are customizable (OEM/ODM), with full export documentation support. Inquiries are welcome.
