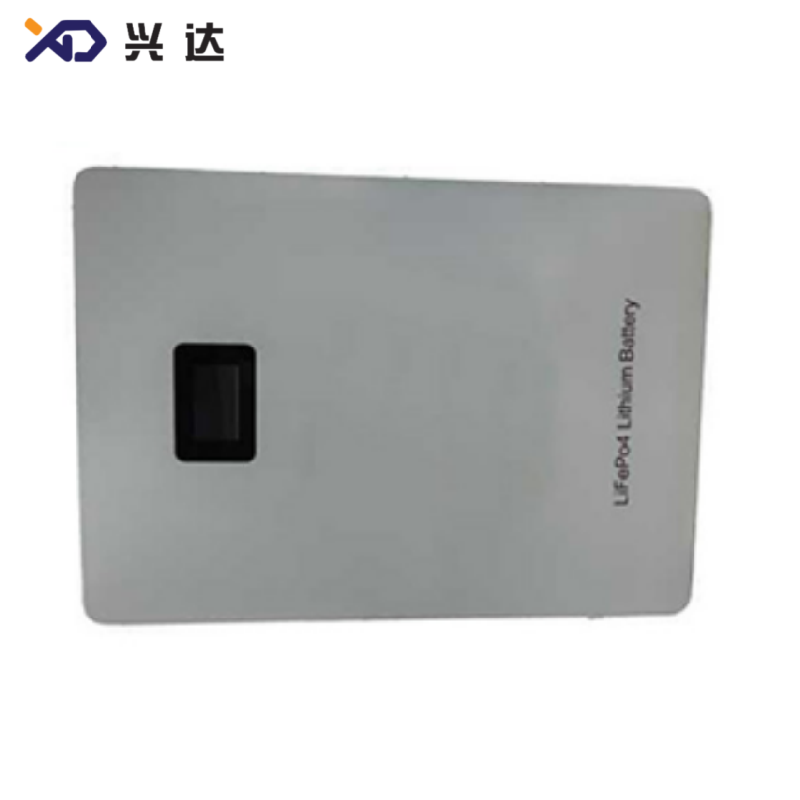

5kWh Wall-Mounted LiFePO4 Battery 51.2V 100Ah (48V System Energy Storage)
5kWh Wall-Mounted LiFePO4 Battery · 51.2V 100Ah (48V System)
Product Overview
This 51.2V 100Ah (approx. 5.12kWh) wall-mounted LiFePO4 battery is designed for 48V home energy storage systems and works with mainstream hybrid inverters. The slim wall-mount housing saves floor space; the built-in BMS provides over-voltage, under-voltage, over-current, over-temperature and short-circuit protection; multiple units can be paralleled for expansion (pack voltage difference <0.5V). It is the core storage unit for residential PV storage and backup-power scenarios.
Key Features
- LiFePO4 cells: inherently safe chemistry with long cycle life — lighter and more durable than lead-acid;
- Slim wall-mount design: hung on the wall with zero floor space — ideal for garages, utility rooms and balconies;
- Smart BMS with multi-level protection: over-voltage, under-voltage, over-current, over-temperature and short-circuit protection with real-time status monitoring;
- Flexible expansion: parallel connection supported (pack voltage difference <0.5V), series connection also supported — scale capacity as needed;
- Wide operating temperature: charge 0~50℃, discharge -10~60℃ for varied installation environments;
- Natural cooling: fanless and silent, maintenance-free; usable at altitudes below 4000m;
- M8 terminals: M8 copper stud terminals for firm, convenient wiring;
- System synergy: combine with solar panels and a hybrid inverter for a complete home PV-storage system — charge by day, discharge by night, and watch the bill shrink.
Technical Parameters
| Item | Specification | Item | Specification |
|---|---|---|---|
| Cell Type | LiFePO4 | Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah | Nominal Energy | approx. 5.12kWh |
| Operating Voltage Range | 44.8V~58.4V | Max. Charge/Discharge Current | 100A / 100A (51.2V series value) |
| Parallel / Series | Both supported (parallel ΔV<0.5V) | Terminal | M8 copper stud |
| Charge Temperature | 0℃~50℃ (recommended 15~40℃) | Discharge Temperature | -10℃~60℃ (recommended 15~40℃) |
| Storage Temperature | -20℃~45℃ | Operating Humidity | 15%~75% |
| Cooling | Natural convection (fanless) | Altitude | <4000m |
| Protections | Over-voltage, under-voltage, over-current, over-temperature, short circuit etc. (built-in BMS) | ||
| Dimensions (L×W×H) | 825×587.6×203.9mm (series value) | Weight | approx. 89.6kg (series 200Ah value — confirm for this model) |
| Installation | Wall-mounted (bracket included) | ||
Typical Applications
| Sector | Description |
|---|---|
| Home PV Storage | Charge from solar by day, discharge at night — maximize self-consumption |
| Home Backup Power | Keeps refrigerators, lighting and routers running during outages |
| Electricity Bill Management | Charge off-peak, discharge on-peak in time-of-use regions |
| Small Commercial Backup | UPS-grade backup for shops and offices; parallel units scale capacity |
Why Choose XD?
With years of export experience in new energy and power equipment, XD offers a one-stop solar-storage-charging line — solar modules, hybrid inverters, storage batteries, EV chargers and cabling — with complete system configuration for your project. Capacity ratings, housing color, communication protocols and branding are customizable (OEM/ODM), with full export documentation support (please confirm UN38.3 / air-sea transport compliance for battery shipments in advance). Inquiries are welcome.
